Custom Aluminum Sheet Metal Bending and Stamping Fabrication for Enclosure Panels with Upright Tabs
-
Model NumberLZXMaterialsteel, stainless steel, aluminum, galvanized steel,
-
SizeCustomized sizeApplicationMachinery/Industry/Home/Automotive
-
ColorCustomized ColorProcessStamping
-
ServiceCustomized OEMUsagePrecision Metal Stamping Product
-
TypeOEM PartsEquipmentCNC Bending/Stamping Machine/Laser Marking
Formed panels for a custom enclosure design

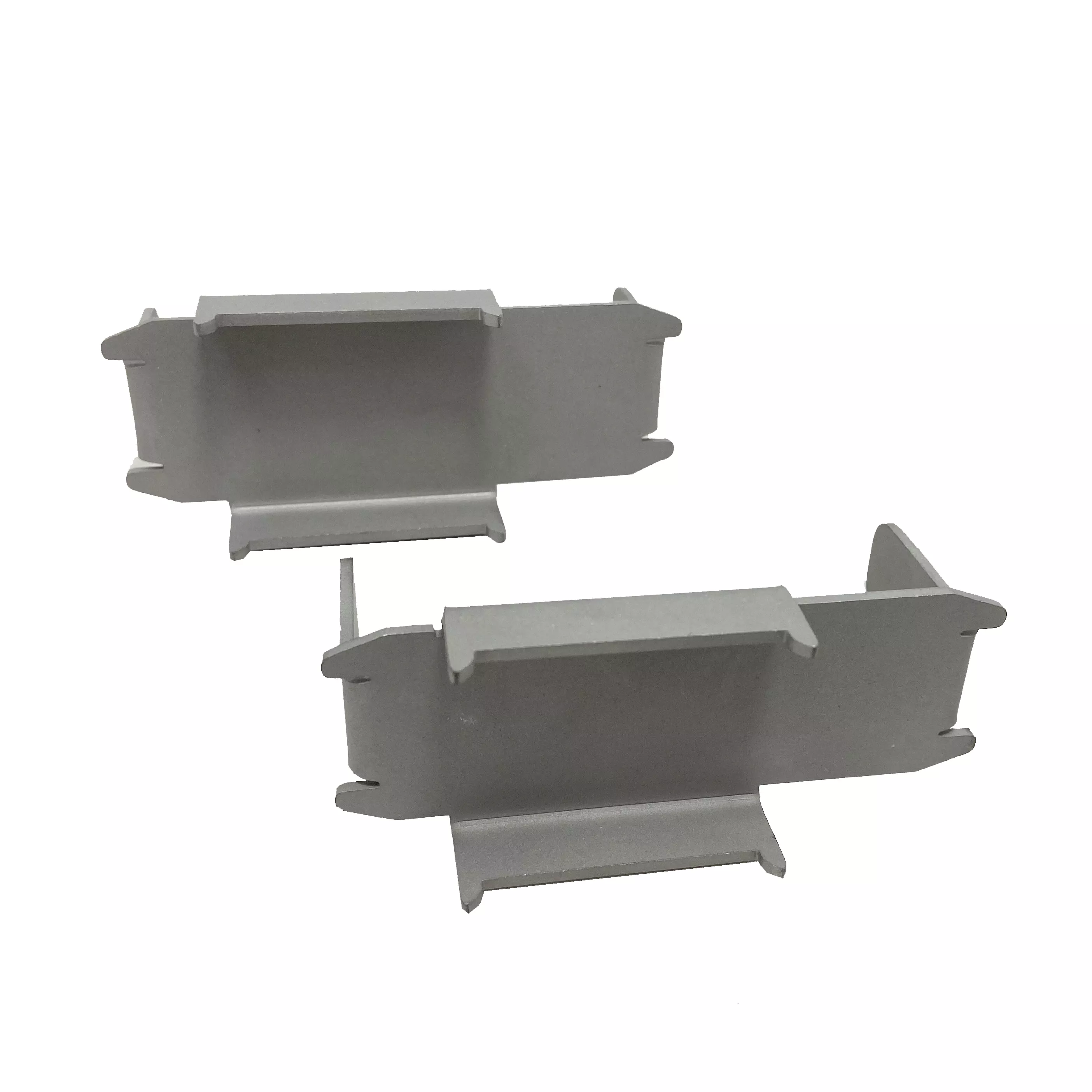

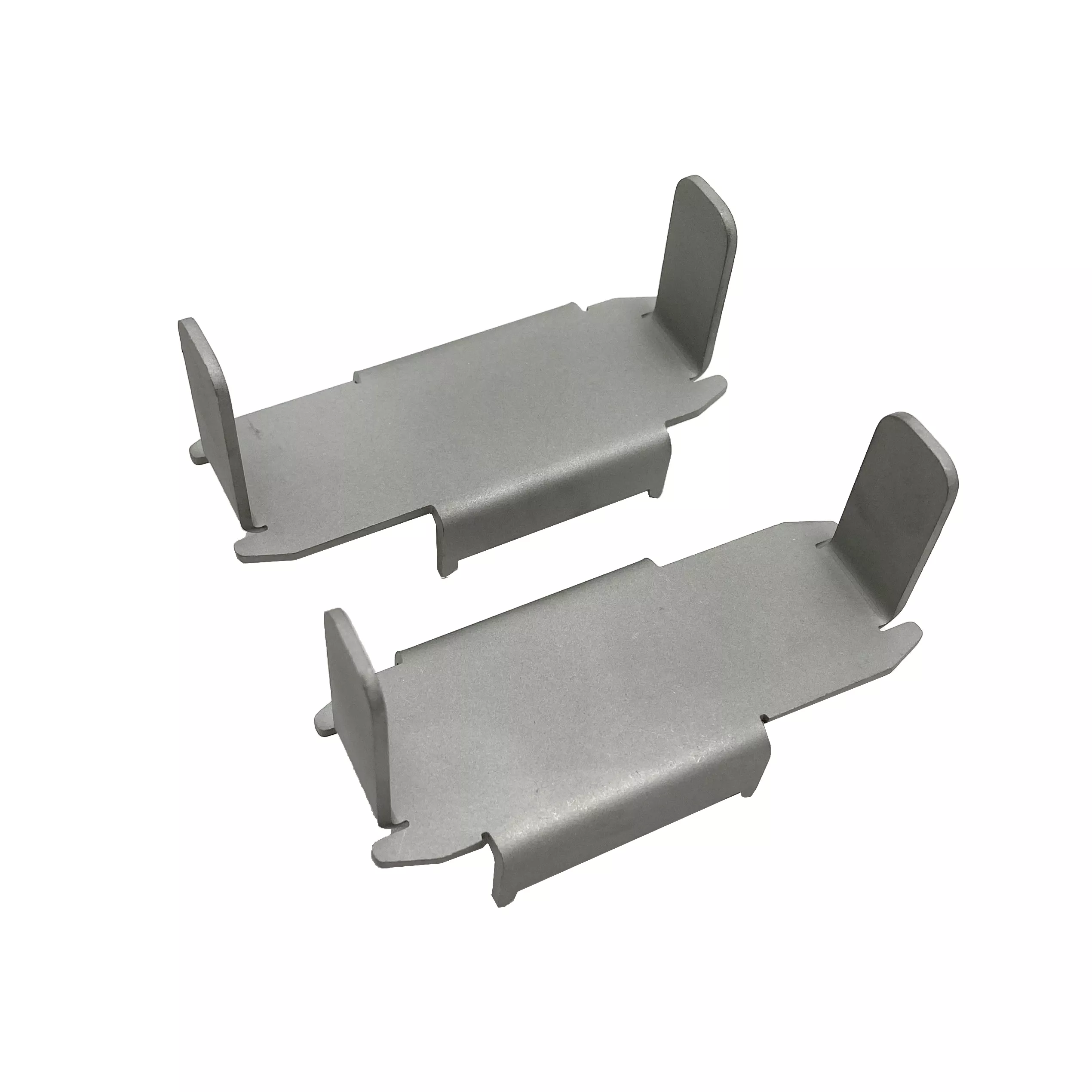

The two pictured examples have a broad central section, upright end tabs and short folded side sections. Their open profile illustrates individual enclosure or box components rather than a complete closed enclosure. Model LZX is listed for custom sheet metal stamping and bending fabrication.
Start with the panel outline and the finished position of each upright tab. Include the sheet thickness, tab width, corner reliefs and bend dimensions. Where the panel locates against a cover or another component, show the mating surfaces and the required assembly clearance.
Agree the part configuration
Aluminum, steel, stainless steel and galvanized steel appear in the material information. Select the metal and the requested surface condition for your drawing. The illustrated panels should not be assumed to have identical dimensions or to be supplied as a pair; identify the required configuration in the enquiry.
The source names CNC bending and stamping equipment. Provide the current drawing revision and quantity, together with any edge, flatness or tab-alignment requirements. Confirm whether the scope includes only the formed panel or additional enclosure pieces before the order is finalized.
