Custom Drawing Copper and Brass CNC Turning and Milling Enquiries for Flanged Pins and Bored Round Parts
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes
Flanged head and shank dimensions from your drawing

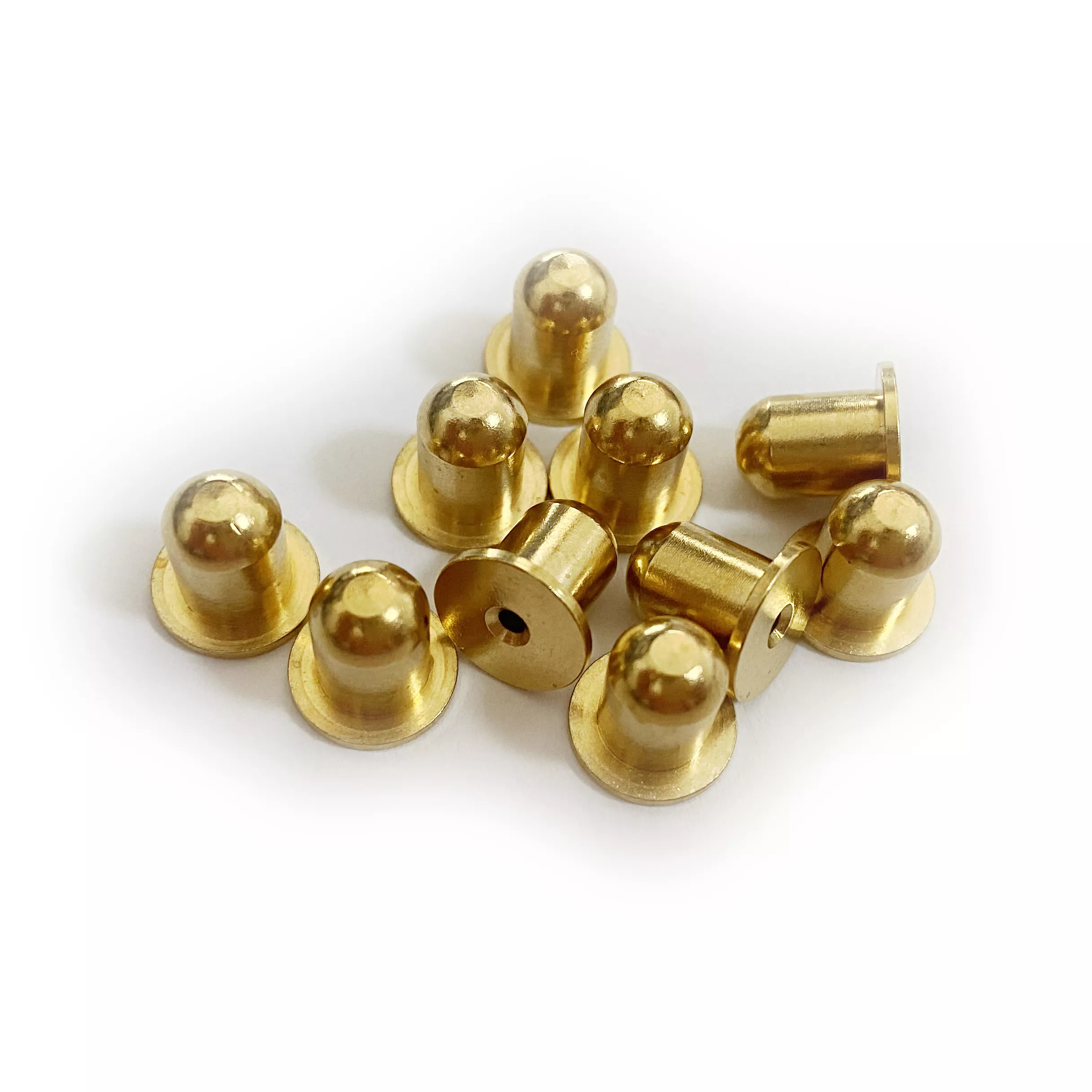

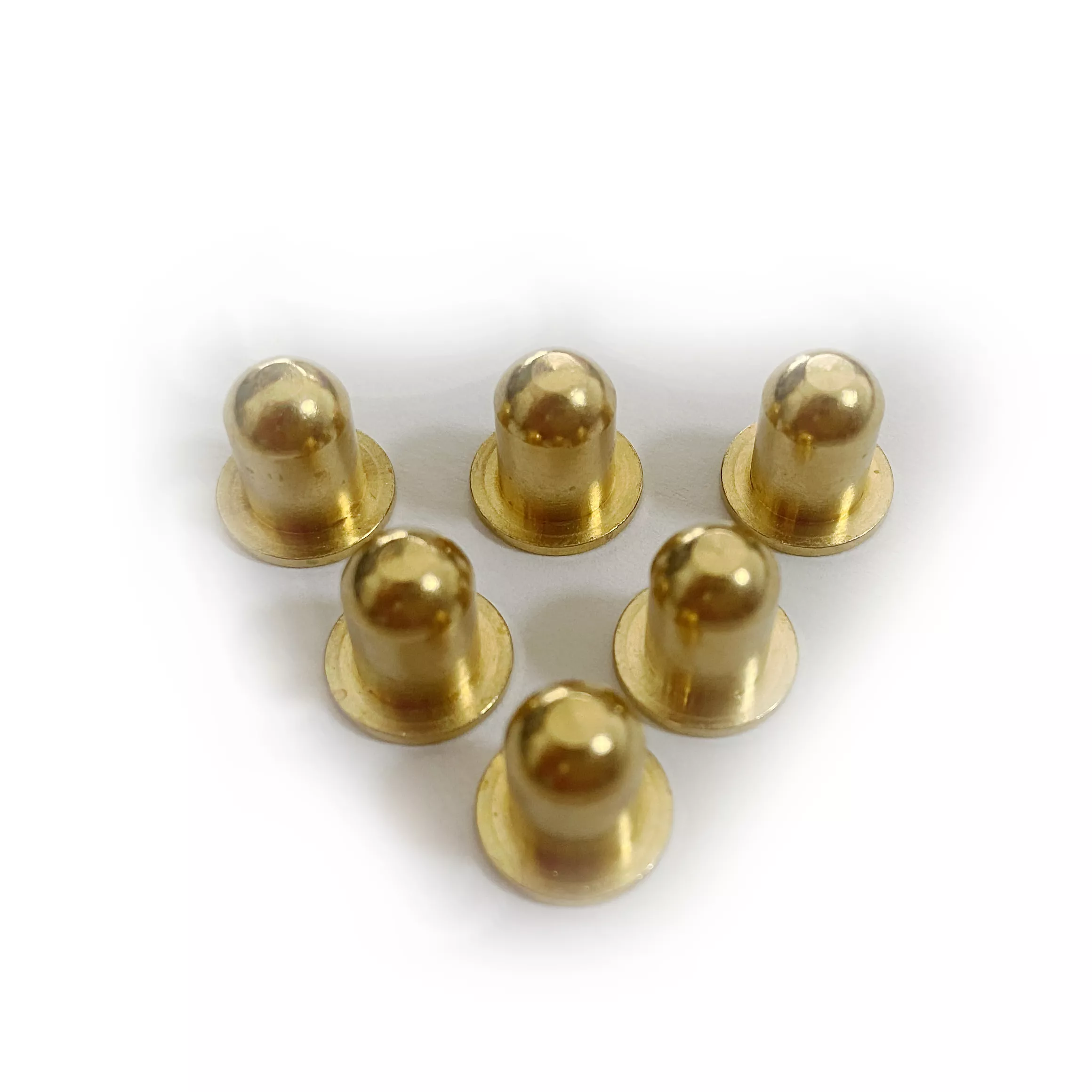

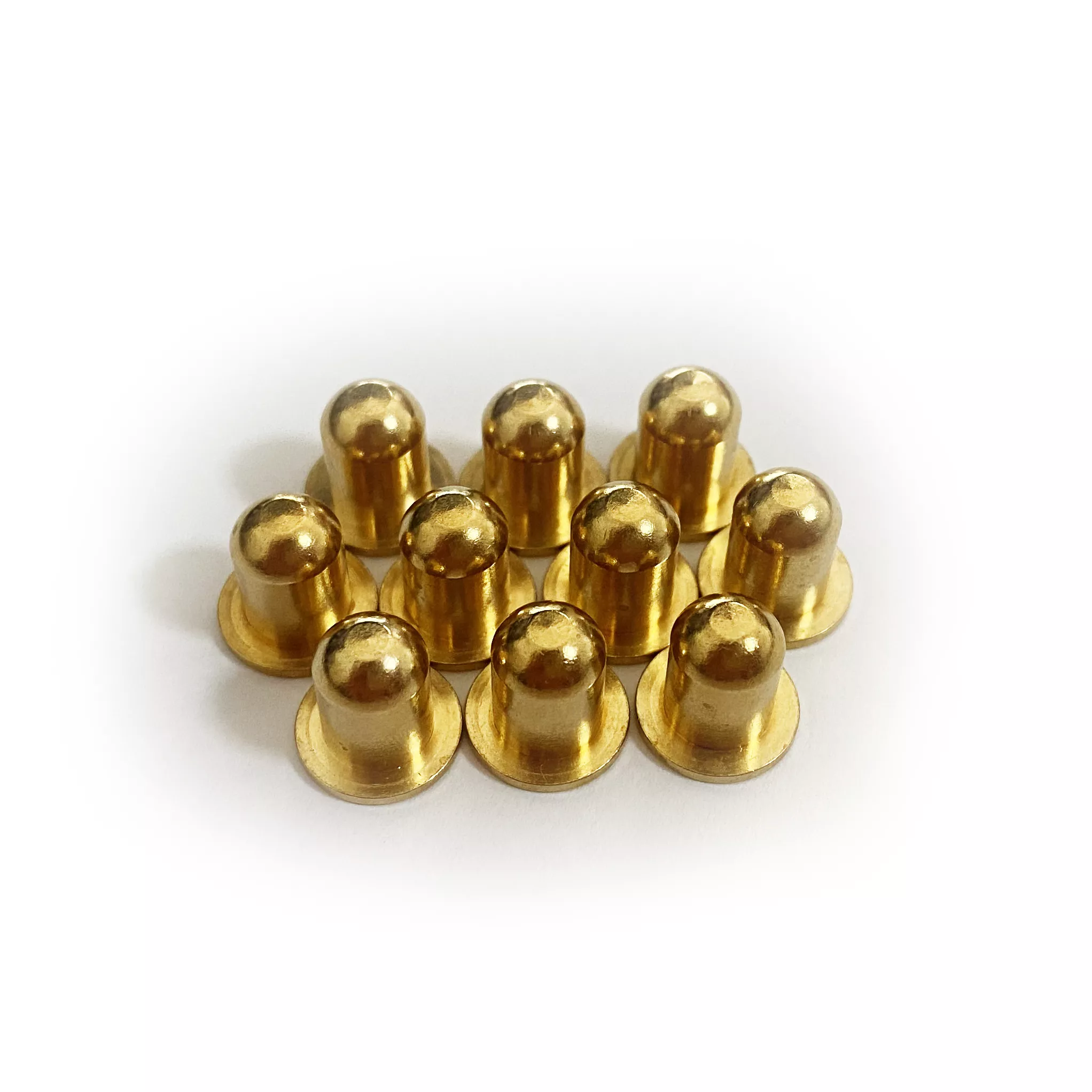

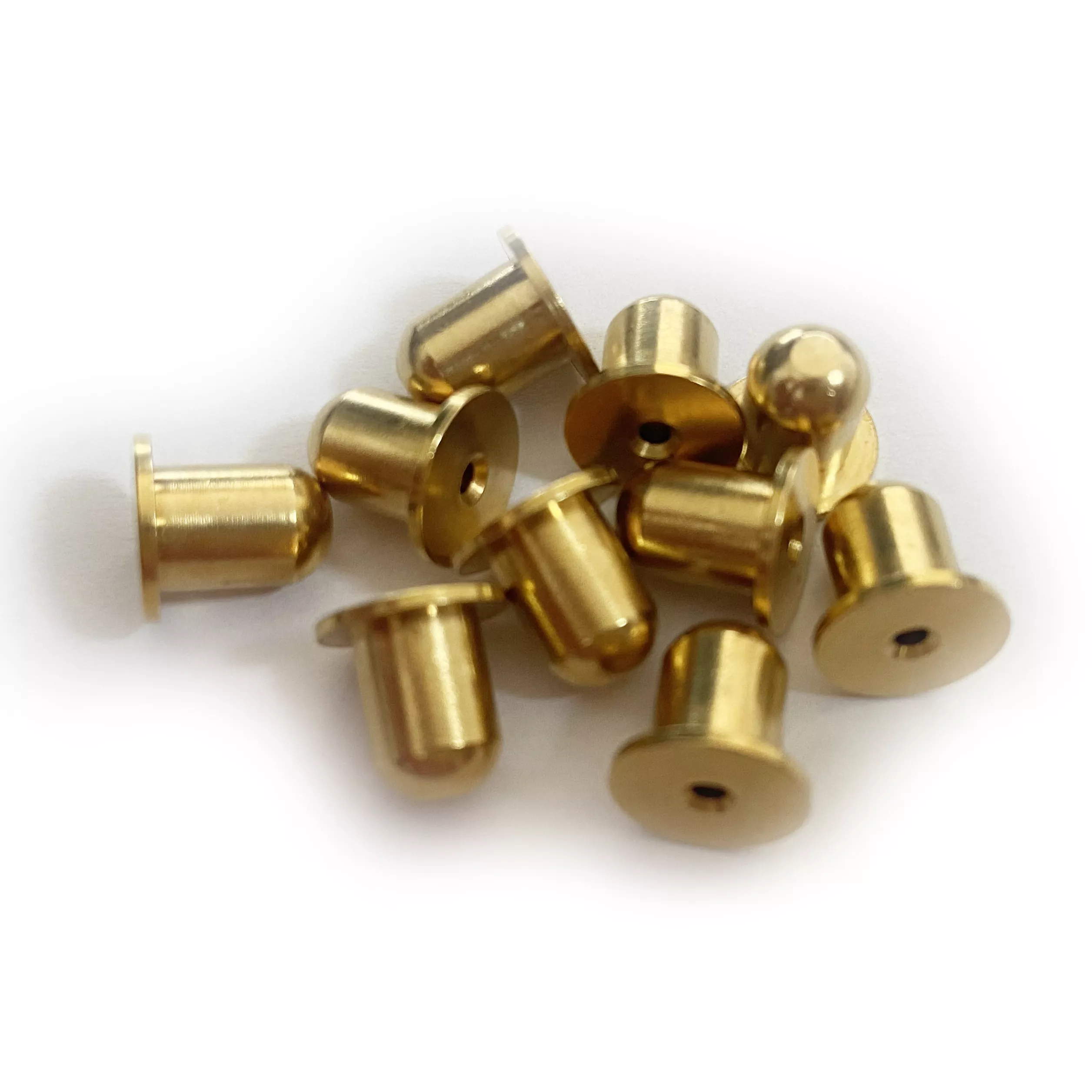

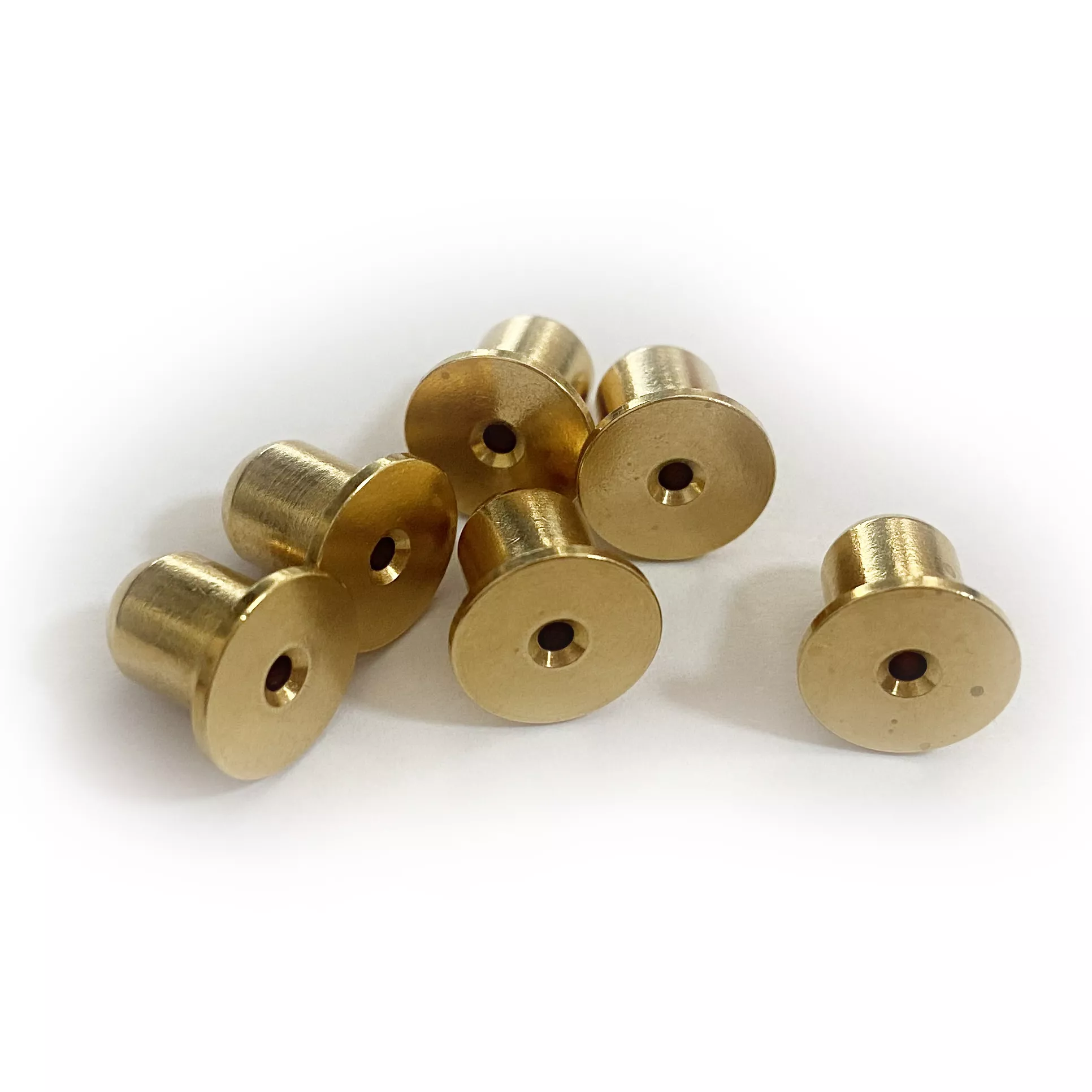

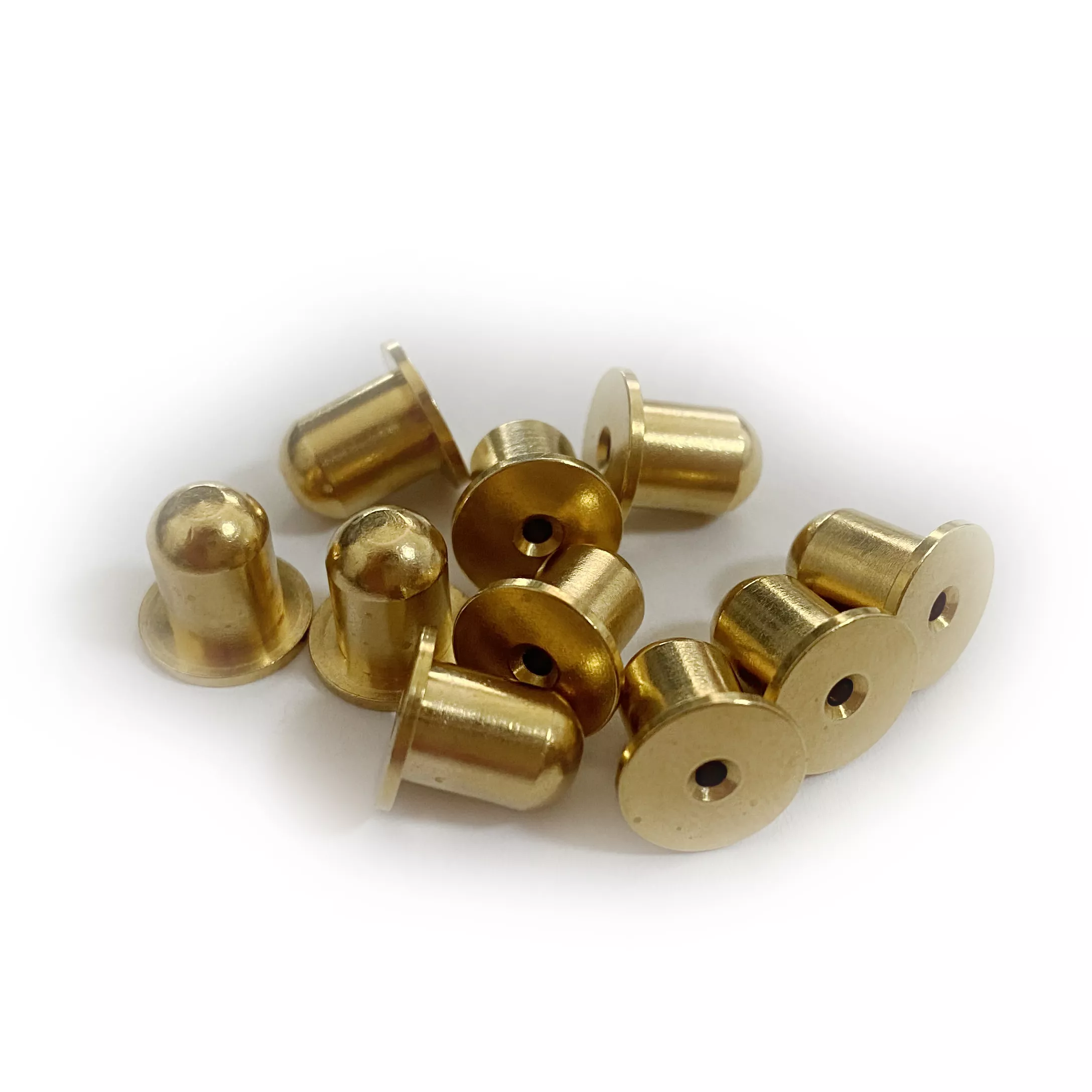

The examples have round flanged heads above narrower shanks, with central openings and rounded or flat end profiles. Define the head diameter, shank length, bore and seating face for the selected component.
Model Dmetal lists CNC turning and milling, with brass named as a material and copper among the machining capabilities. Specify the actual alloy and grade for your enquiry, quantities and inspection dimensions. PDF, CAD, IGES and STEP drawing formats are listed. Identify any additional milling features and select a finish suitable for the metal; the photographed gold appearance does not establish a particular copper or brass alloy.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
