Custom 5 Axis CNC Turning Milling Enquiries for Aluminum Titanium Stainless Steel Metal Parts
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200444Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)

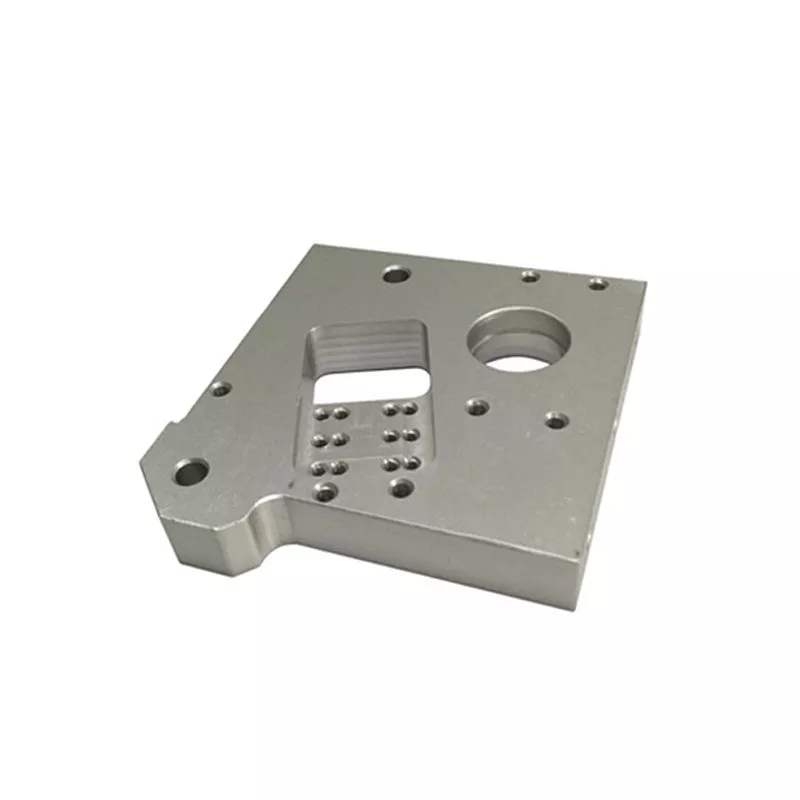

Openings and hole patterns in a mounting plate
The retained example shows a plate with a large bore, a slot-like opening and several small holes. Define the plate thickness and locating edges, then dimension the openings and hole pattern from those references.
For aluminum, titanium or stainless steel machining enquiries, state the required alloy and condition. If 5-axis work is requested, identify the features and access requirements for review, including surfaces needing machining from different directions.
Finished-part requirements
Include the CAD model, finish and quantities. Mark critical fit dimensions and inspection criteria, with the current component drawing revision.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
