Custom CNC Turning Milling Machine Parts with Threaded Fittings and Stepped Shafts
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS240401Product namecustom cnc machined parts
-
Surface treatmentanodizing/powder coating/painting/polishing / chrome plating etcMaterialAluminum Alloy
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100 pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zincCertificationISO9001:2015
-
ProcessCnc Machining+deburrs +surface treatmentLogoAccept Custom Logo
-
Tolerance0.01mm
Define each connector or shaft independently

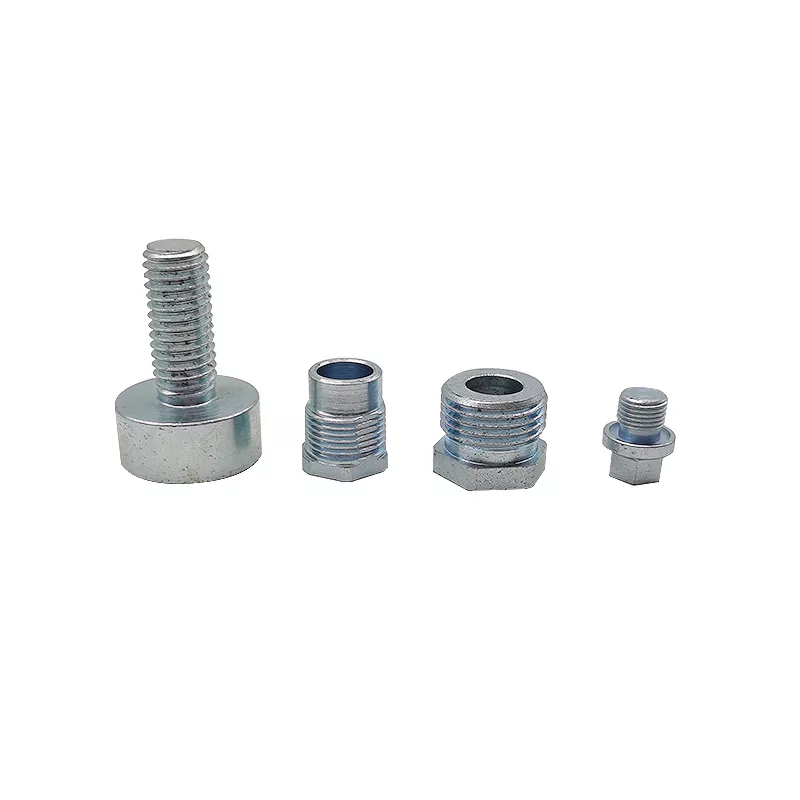

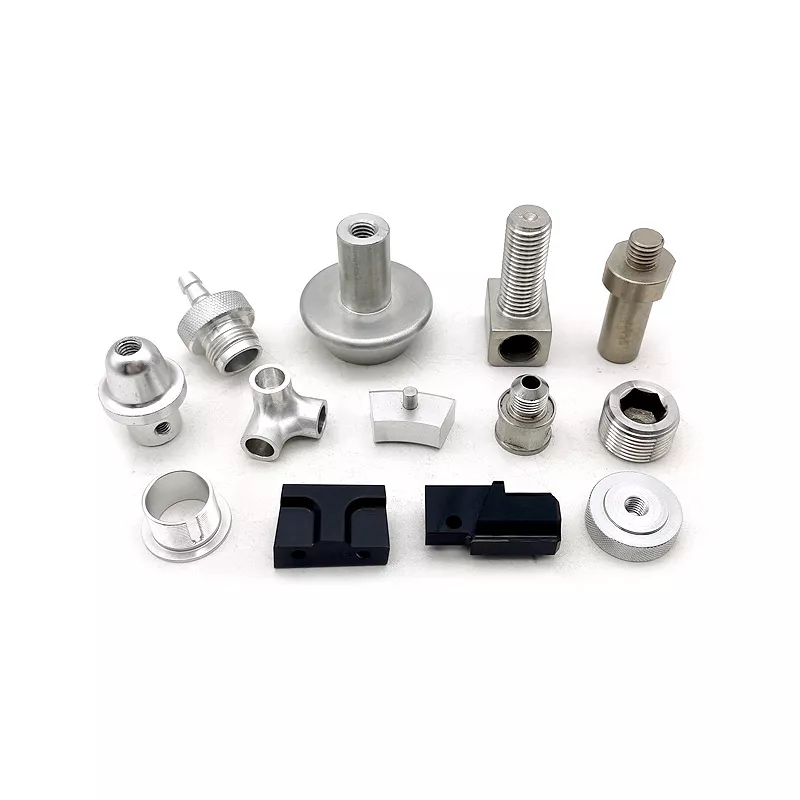

The range includes threaded fittings, narrow stepped components and round connection parts. Select the required item and provide its drawing, identifying the axis, bore and mounting or engagement features.
Machining information by feature
State the material grade per component and distinguish turned diameters from milled flats, slots and drilled holes. Define thread forms and any finish or plating needed at the working interfaces.
Include quantities, mating-part details and revision references. Mark the dimensions controlling alignment or engagement, with the inspection records required for each finished design.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
