Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200389Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)

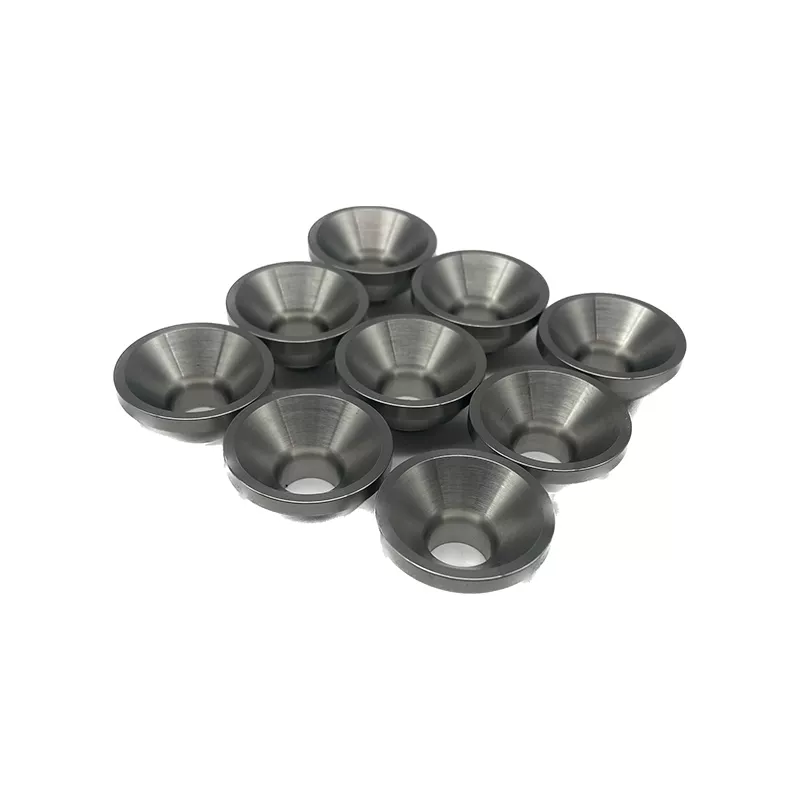

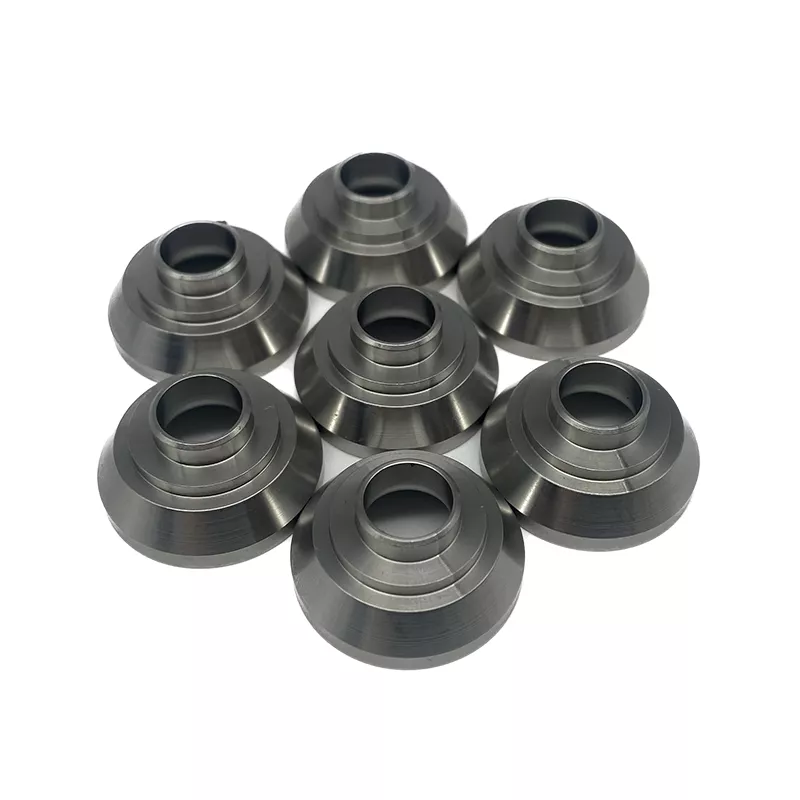

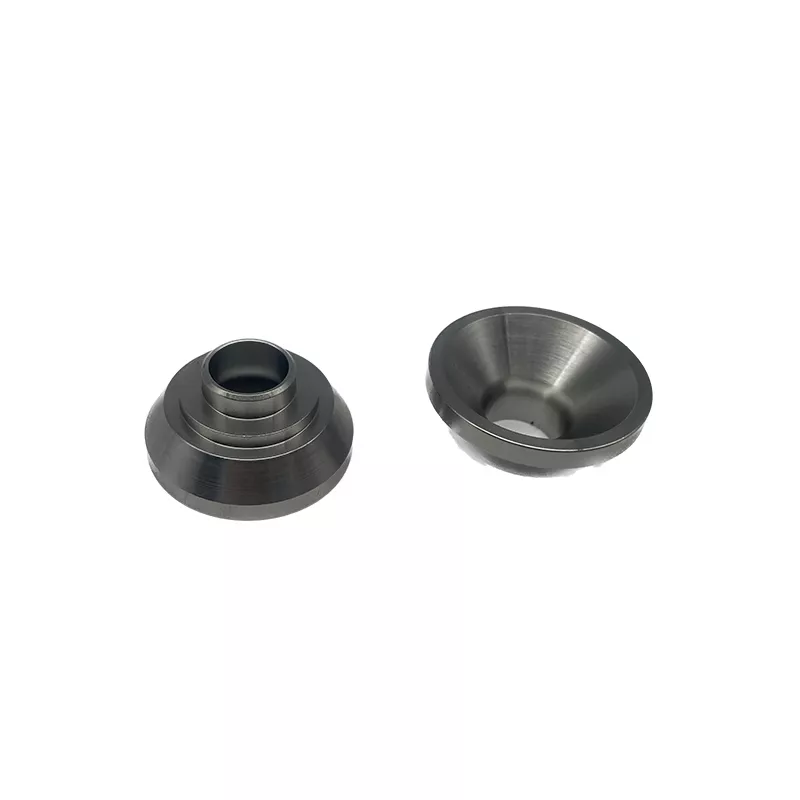

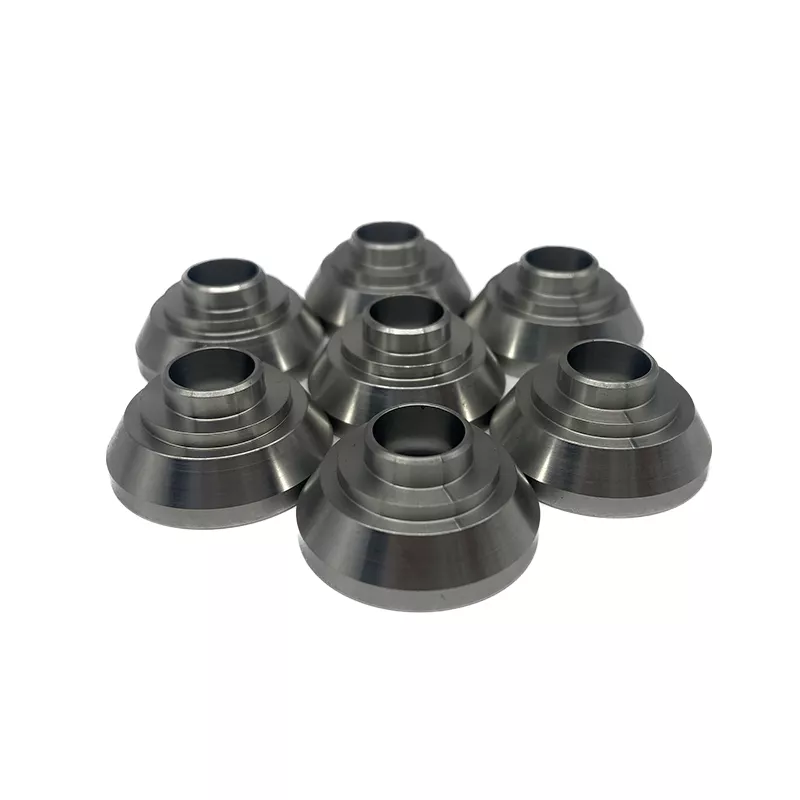

A hollow center within a stepped conical profile

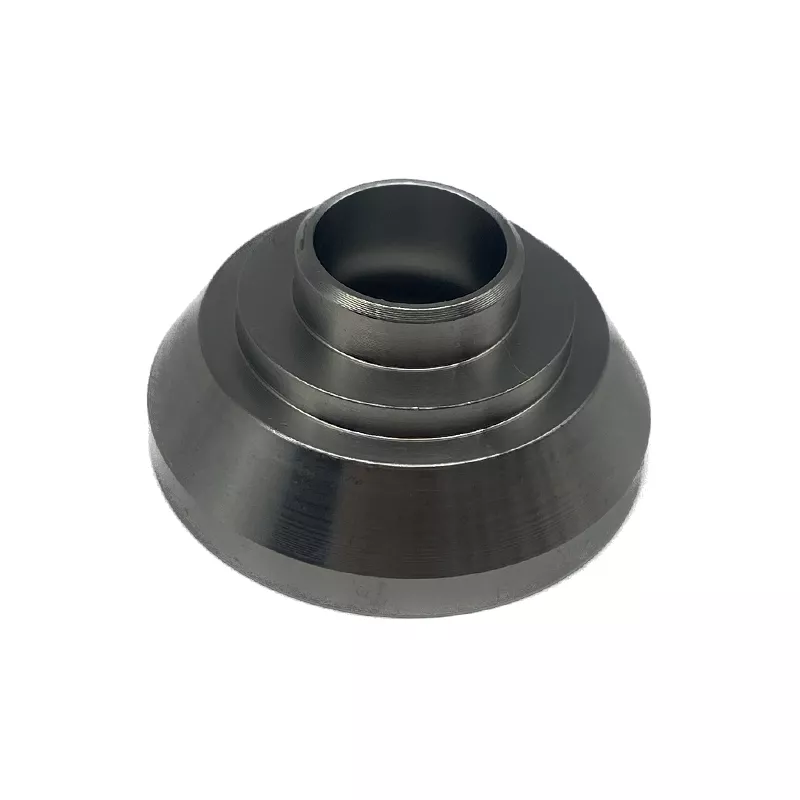

The example has a tapered outer body, concentric steps and a raised cylindrical opening. Define the bore and outside profile from the same axis, including end-face and fitted-contact requirements.
Specify the stainless grade or other selected alloy. If 5-axis machining is requested, identify the geometry needing that access; the general turning and milling list does not establish a particular setup for the example.
Inspection of the finished profile
Provide quantities, finish and drawing revision. Mark bore, taper and step dimensions for inspection. Similar views elsewhere do not verify a separate size or supplied model.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
