Custom Precision Metal CNC Machining Parts in Aluminum and Stainless Steel for Flanged Tubes and Recessed Round Profiles
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes
Flange face and bore alignment

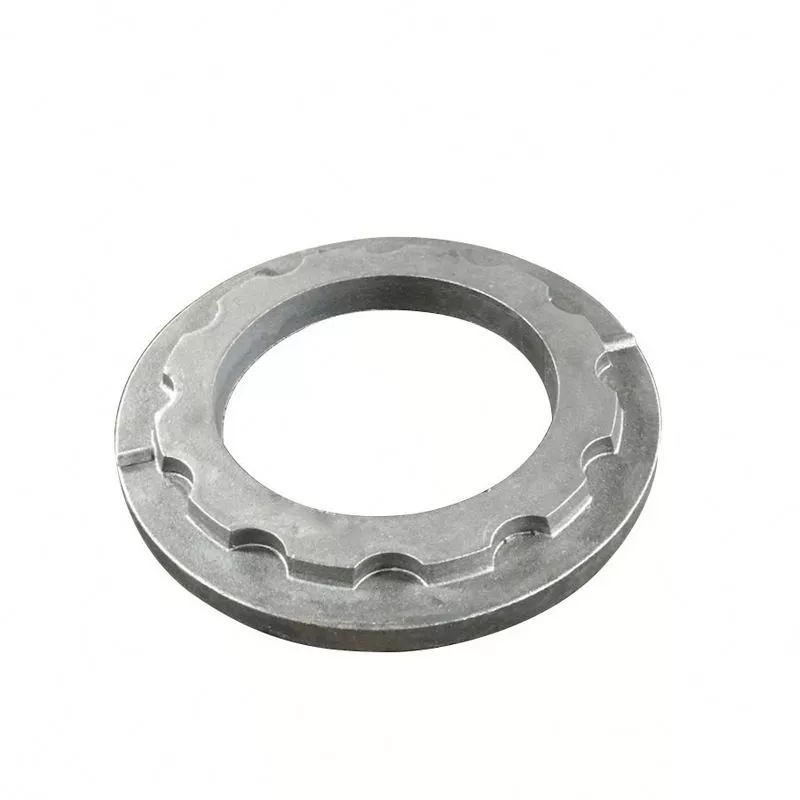

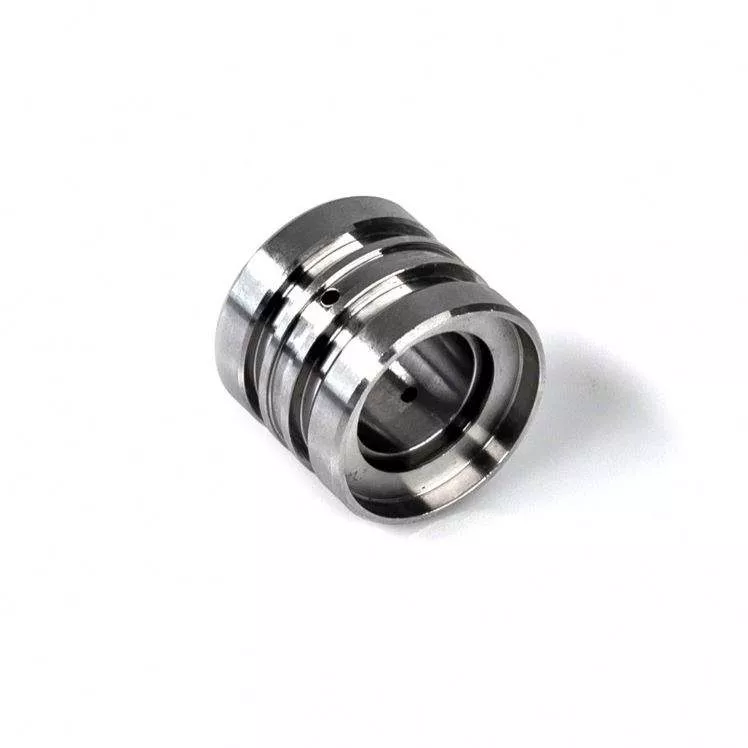

The pictured parts have short hollow cylindrical sections joined to wider round flanges, with stepped or recessed faces. Define the bore and flange from the same axis, then specify the surfaces that locate against the mating component. A section view should show the wall thickness and any internal recess.
Model Dmetal lists CNC turning and milling on a CNC center, with aluminum, steel and brass in the material field and stainless steel among machining capabilities. Provide the selected alloy, quantities and PDF, CAD, IGES or STEP drawing. Agree the finish for that metal and inspection requirements for the mating faces.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
