Custom Galvanized Steel Sheet Metal Fabrication and Stamping Perforated Mounting Panels
-
Model NumberS2406 2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessLaser Cutting Bending StampingKeywordSheet metal fabricating part
-
Surface treatmentPainting\Powder Coating\Plating\PolishingDrawing format2D/3D/CAD/DWG//STEP/PDF/IGS
-
CertificateISO9001/TS16949LogoAccept Customized Logo
-
TechnologyStamping+drilling+assembly

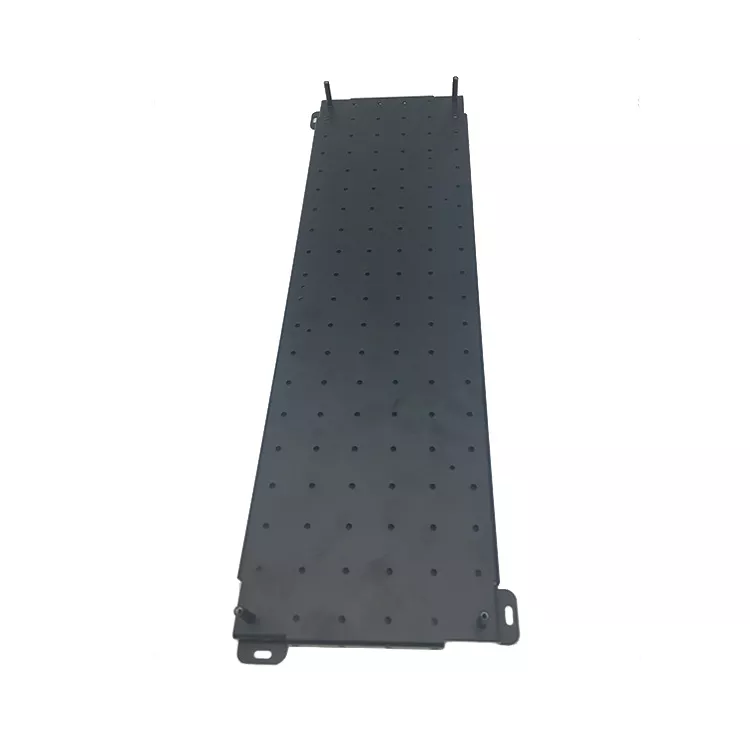

The S2406 2407R example is an elongated panel with a repeated hole pattern, edge mounting tabs and projecting features near its ends. The panel layout should be defined by the ordered drawing. Galvanized steel requirements named in the listing need an exact material and coating specification.
Hole pattern and assembled position
Provide the panel outline, sheet thickness and the spacing and size of the repeated holes. Identify tab-hole positions and any standoffs or separate pieces required in the supply. Show the mating assembly where it determines clearance or locating dimensions.
Laser cutting, bending and stamping are listed processes, with drilling and assembly also noted. Specify which operations are required for the actual panel. Define the selected material grade and any finishing needs beyond its supplied surface condition.
For review
Send the current 2D/3D files, quantities and inspection requirements. Agree acceptance of the hole pattern, panel flatness where required and mounting interfaces. Confirm packing protection for projecting features and finished faces.
