Custom Sheet Metal Fabrication Parts with Slotted Mounting Brackets for Laser Cutting, Bending and Stamping Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
Model Number2401Drawing Format2D/(PDF/CAD) / 3D(IGES/STEP/STP)
-
MaterialGalvanized Plate / Steel /Aluminum /Stainless Steel Sheet PlateFinishPainting/ Anodizing/ Powder Coating/Nickel Chrome Plating
-
ColorPanton Color and Ral Color SupportedCertificateISO9001/ROHS/IATF16949
-
ProcessSheet Metal Fabricating + CNC + Surface TreatmentLogoAccept Customized Logo
-
PackingPlastic Bag + Carton + Plywood Pallet

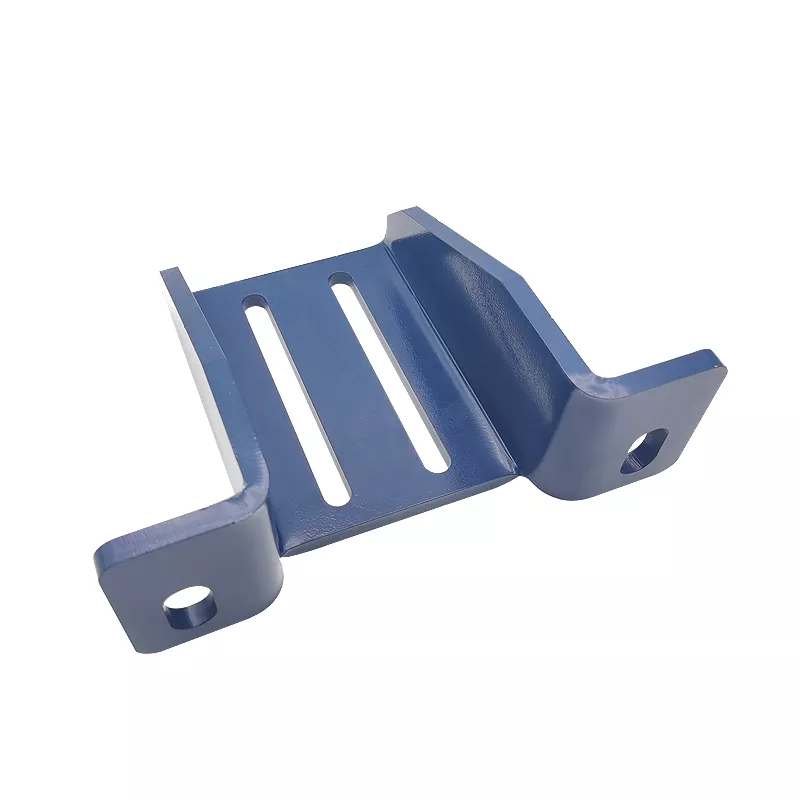

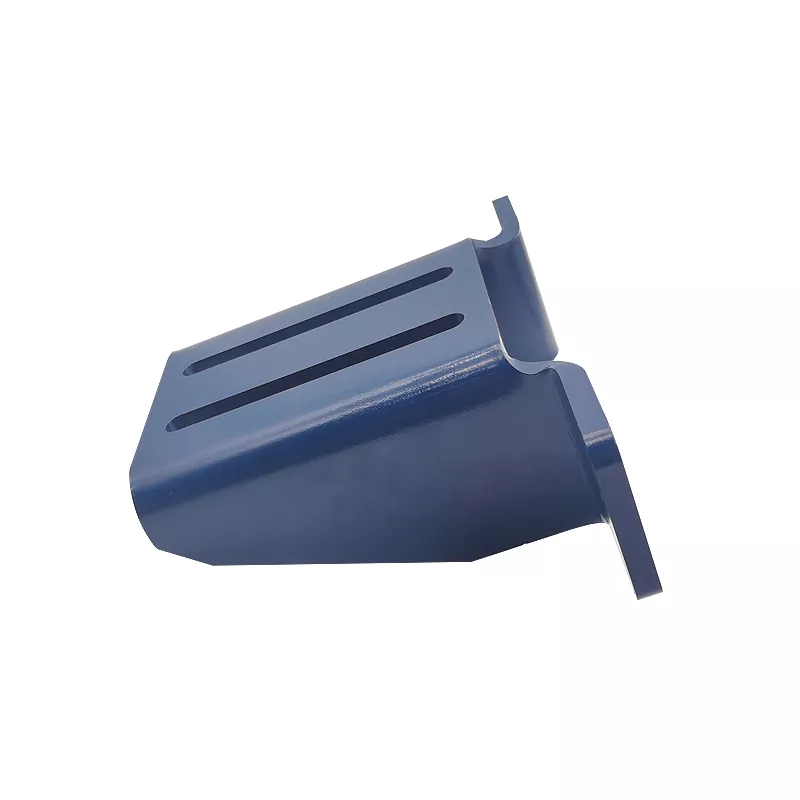

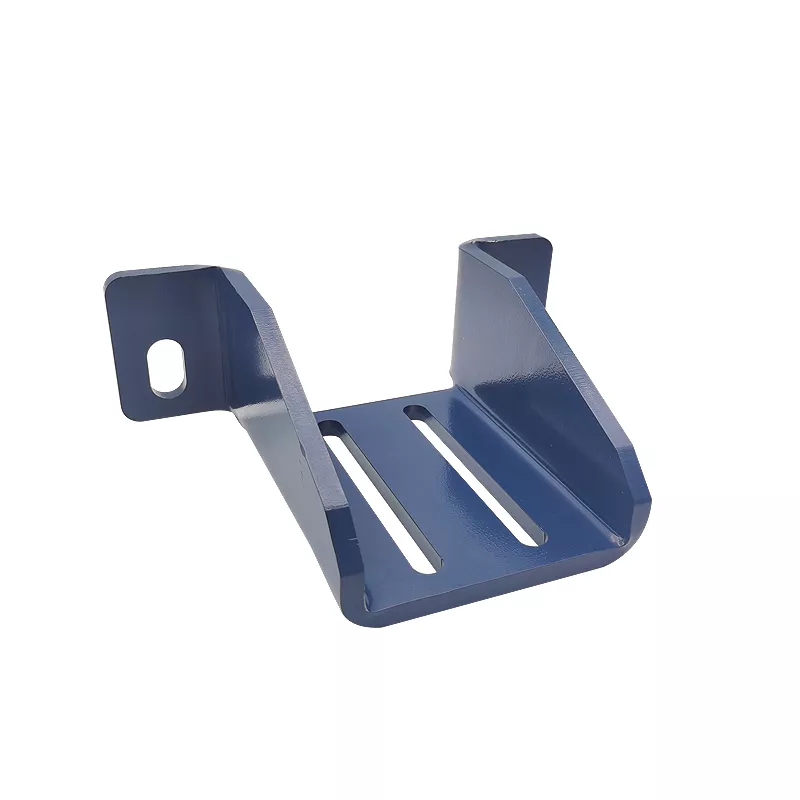

The example is a formed bracket with two parallel elongated slots, raised sides and mounting ears containing round holes. Define slot travel, hole centers and the position of the bent ears from the same reference system so the finished bracket matches its mating part.
Material and fabrication review
Steel, aluminum, stainless sheet and galvanized plate are listed choices. Supply the grade, thickness and drawing in PDF, CAD, IGES, STEP or STP format. Identify laser cutting, bending, stamping or CNC operations requested for review, with quantities and inspection criteria. Choose a finish suitable for the metal; the blue sample does not identify the coating type.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
