Custom Zamac 3 Zamac 5 Zinc Alloy Die Casting Parts | Ribbed Circular Housings

• Model Number

  S2501
  Material

  aluminum /iron /steel/ zamac/cooper etc
• Application

  Industry
  Surface treatment

  Powder Coating /Painting / CNC /Anodizing etc.
• Process

  Casting +Machining(if Need)+surface Treatment
  Certification

  ISO9001/TS16949/RoHS
• Quality Control

  100% Inspected /ISO9001 System
  Drawing format

  2D/(PDF/CAD)3D(IGES/STEP)
• MOQ

  Negotiable
  Packing

  Poly Bag + Inner Box + Carton
• Standard

  EN124 Standard/EN1433/Customized

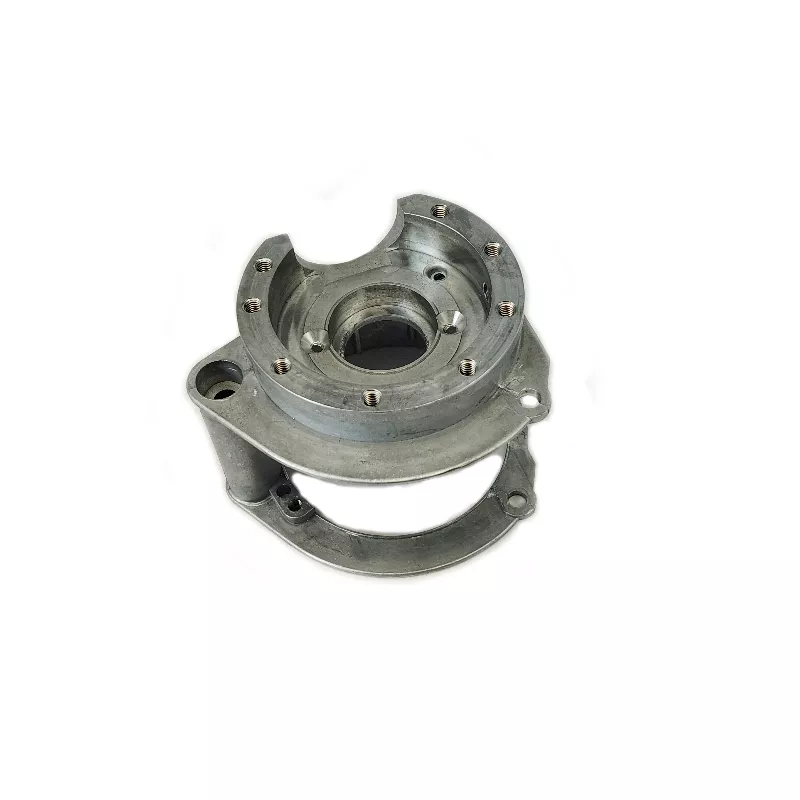

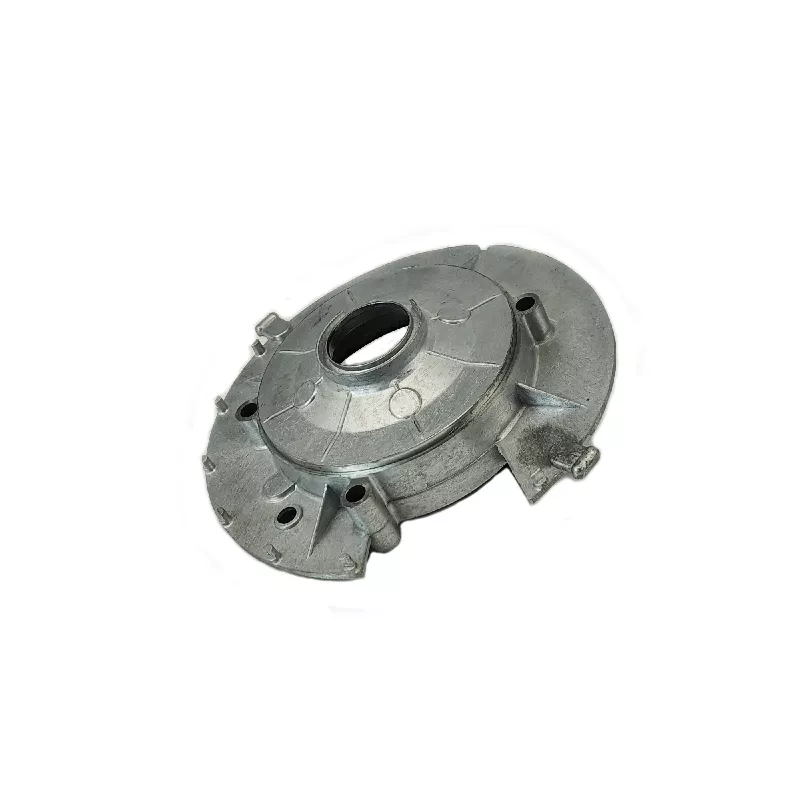

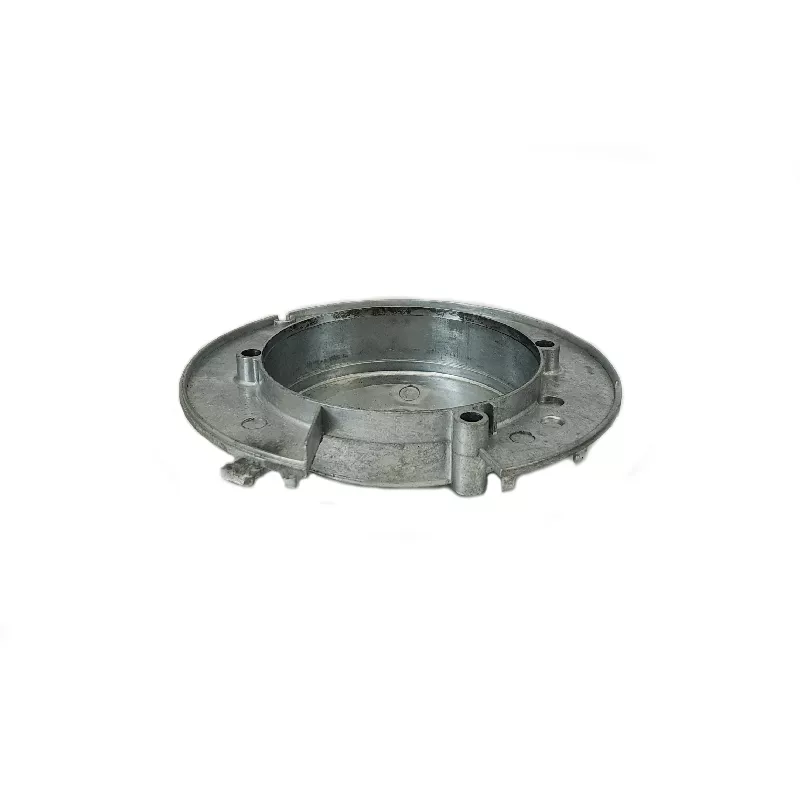

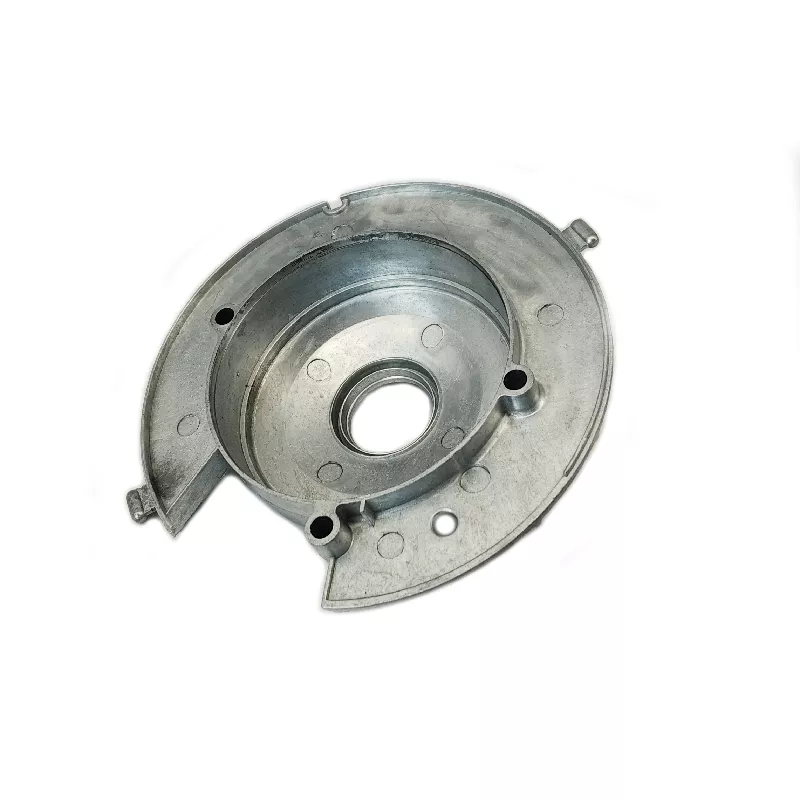

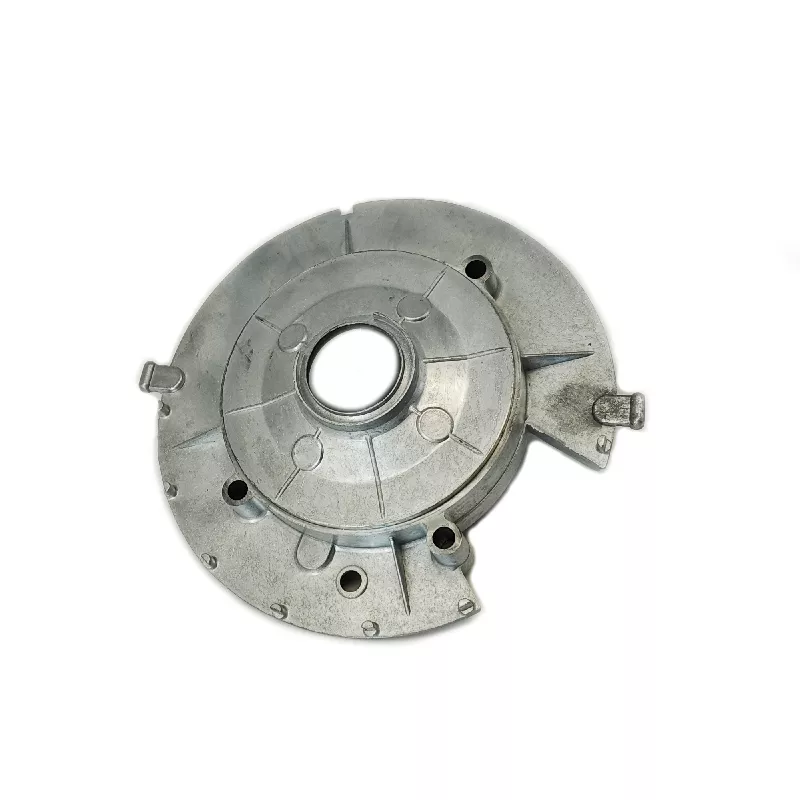

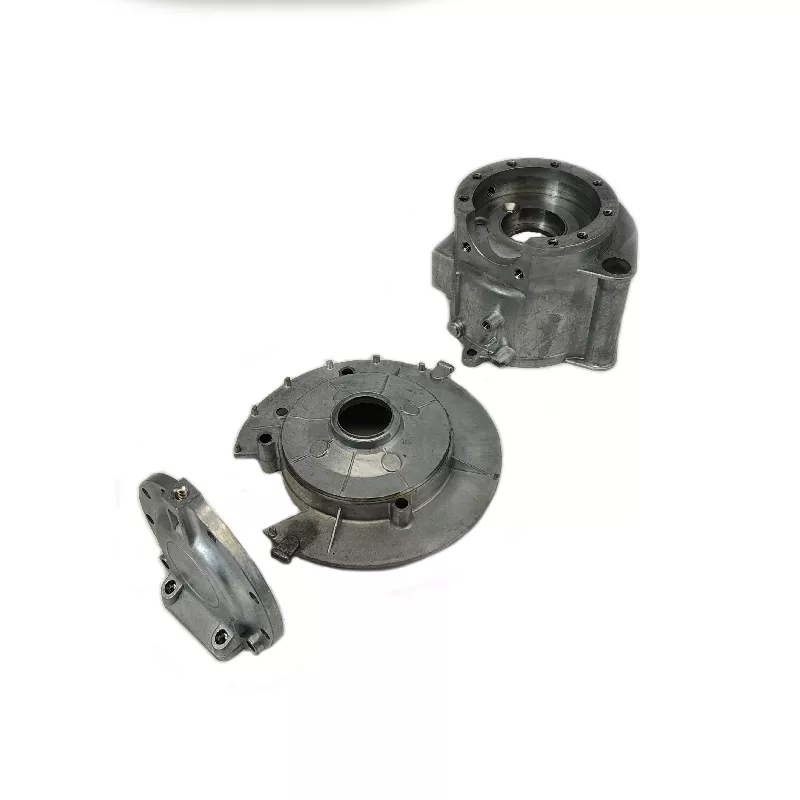

Use the circular housing geometry to define the Zamac die-casting request. The light-colored example has a large central opening, radial ribs, outer fixing holes and projecting ears. These visible features help identify the component, but the actual alloy and connection dimensions require a controlled drawing and material specification.

Connect the central opening to the fixing ears

Show sections through the bore, ribbed wall and mounting regions. Locate fixing holes from assembly datums and identify the adjoining parts that control clearance or contact. State whether the delivery includes only this housing or any additional inserts, covers or hardware, with separate definitions for each included item.

Select one Zamac grade and finish

Zamac 3 and Zamac 5 are alternative zinc-alloy directions. Specify the actual grade, required condition and supporting material records. Review die casting and any subsequent CNC machining as manufacturing operations; choose powder coating, paint or another compatible treatment separately rather than treating machining as a coating.

Set measurable housing acceptance criteria

Place dimensional tolerances on the working interfaces and define inspection in the delivered condition. Any operating-pressure, functional or compliance requirement needs its own service conditions, method and applicable evidence. A general standard reference does not qualify this particular housing.

• Identify the circular housing and drawing revision.
• Choose the actual Zamac grade and condition.
• Dimension the bore, ribs, holes and ears.
• Separate CNC work from the selected treatment.
• Agree final checks and required delivery records.

Provide PDF/CAD or IGES/STEP geometry with quantities and the inspection scope. This keeps the component request tied to the actual design rather than an assumed rating or a photographed surface appearance.

Custom Zamac 3 and Zamac 5 Zinc Alloy Die Casting Parts are engineered for high precision and exceptional performance, making them an ideal choice for various industrial applications. Crafted from a diverse range of materials including aluminum, iron, steel, zamac, and copper, these die casting parts meet the rigorous demands of modern manufacturing.

Our advanced casting process, supplemented by machining if required, ensures every component achieves the desired specifications. The surface treatment options available, such as powder coating, painting, CNC machining, and anodizing, allow for customization to suit your project's unique needs while enhancing durability and aesthetics.

With ISO9001 and TS16949 certifications, our commitment to quality control stands firm; every piece undergoes a thorough 100% inspection under the ISO9001 system. Clients can provide their designs in various formats, including 2D (PDF/CAD) and 3D (IGES/STEP), ensuring compatibility with your project requirements.

We maintain a flexible minimum order quantity (MOQ) policy, allowing for tailored solutions whether you need a small batch or a larger volume. Packing is done meticulously, utilizing poly bags, inner boxes, and cartons to ensure that your products arrive in perfect condition.

Complying with EN124 and EN1433 standards, along with the option for customized specifications, underscores our dedication to meeting industry benchmarks. Make your next project a success with our Custom Zamac Zinc Alloy Die Casting Parts!
