Custom Aluminum CNC Lathe and Milling Parts with Threaded Bosses Ribbed Bases and Mounting Flanges
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model Number2012Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

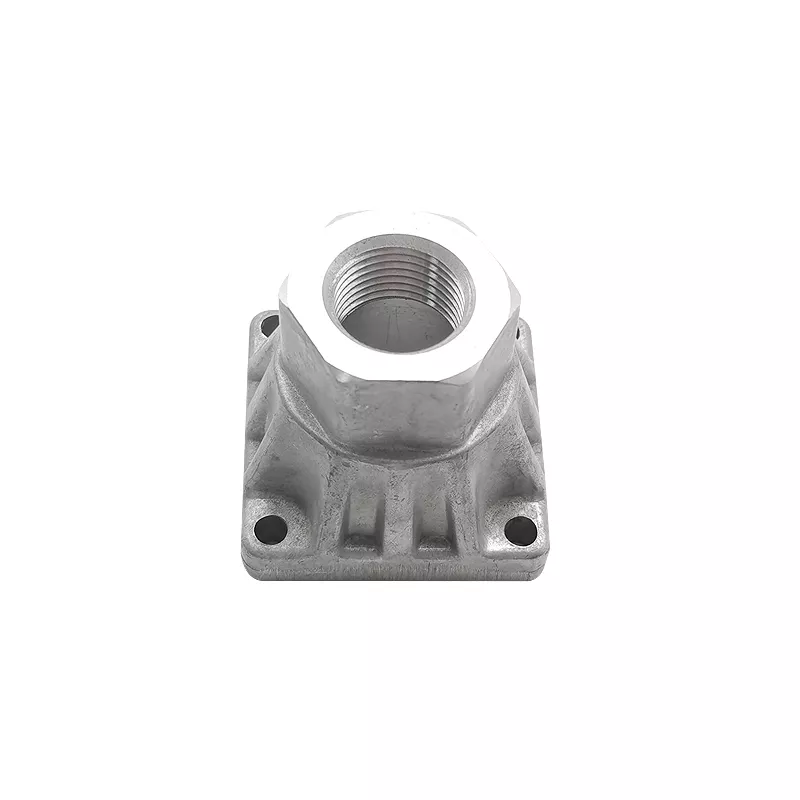

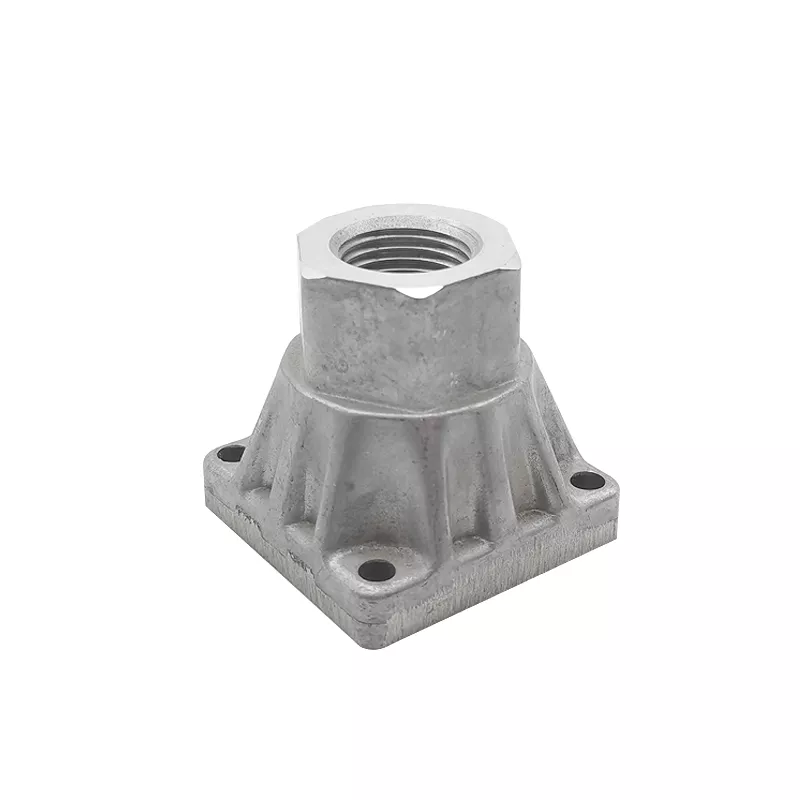

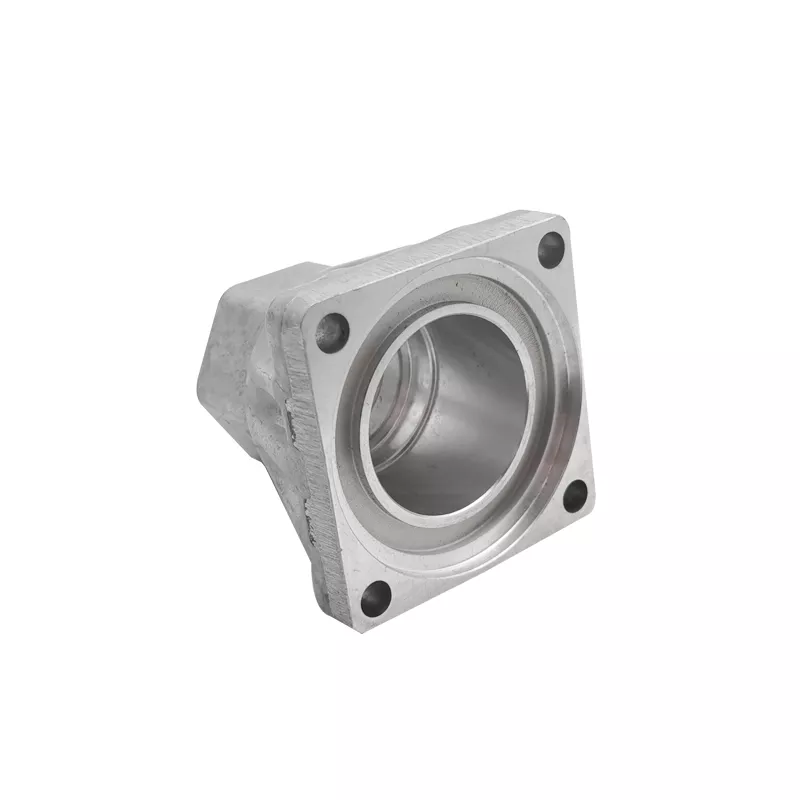

The main example has a square mounting flange, a raised threaded boss and ribs connecting the boss area to the base. The finished-part drawing should identify the surfaces and features requiring CNC machining, including the thread and mounting interfaces.
Thread, flange and fitted faces
Specify the thread size and depth, boss dimensions, flange thickness and hole pattern. Show the reference surfaces used to check alignment and include section views where they define wall or rib geometry. Mark the final edge and surface requirements.
Model 2012 lists aluminum alloy with customized sizes and anodized, oxide or powder-coated finish options. Send PDF, CAD, IGES or STEP drawings, quantities and revision; the listed minimum order is 100 pieces. Include inspection requirements for the finished machined features.
