Custom Polished or Anodized Aluminum CNC Turning Parts with Wide Flanges Recessed Bores and External Threads
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS2405Product namecustom cnc machined parts
-
Surface treatmentanodizing/powder coating/painting/polishing / chrome plating etcMaterialAluminum Alloy
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100 pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zincCertificationISO9001:2015
-
ProcessCnc Machining+deburrs +surface treatmentLogoAccept Custom Logo
-
Tolerance0.01mm

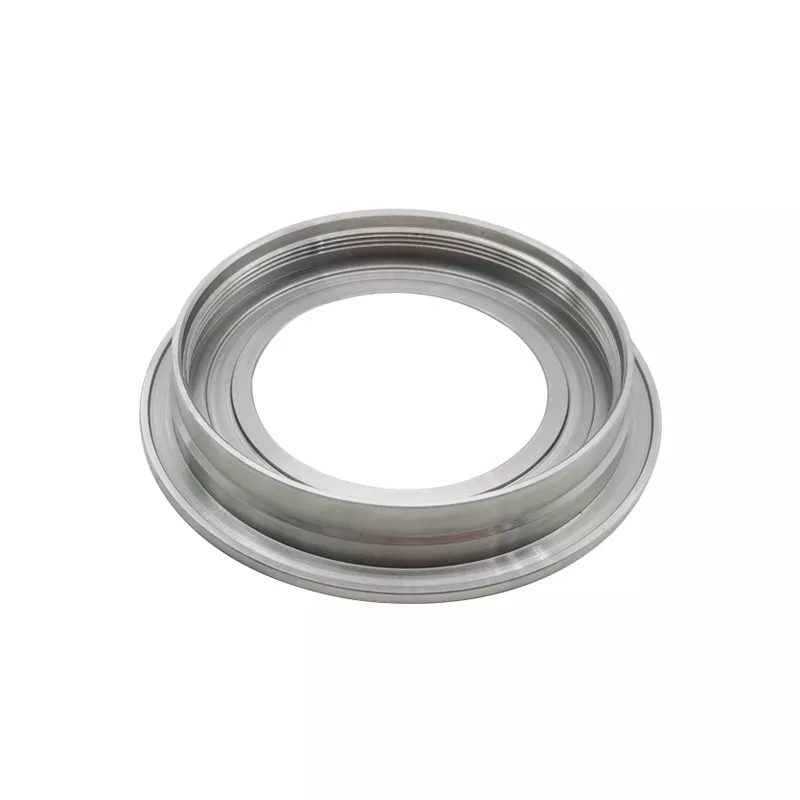

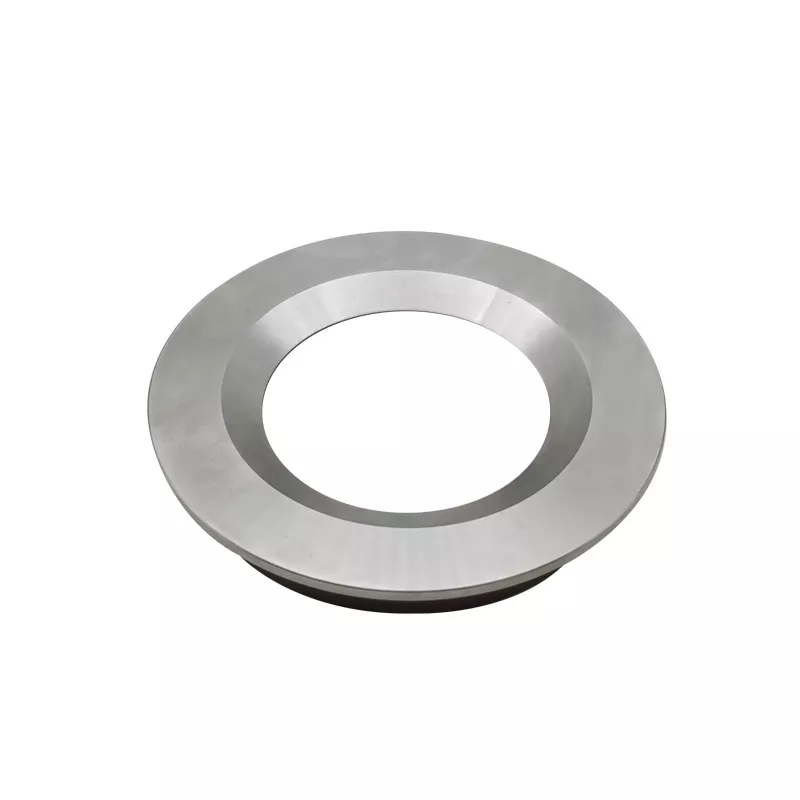

The main turned part has a broad flange, a recessed central bore and an external thread below the shoulder. Define the flange face and bore axis as references for the dimensions that control assembly.
Polishing or anodizing requirements
Specify the desired finish, visible surfaces and any threads or fitted areas needing masking. S2405 lists aluminum alloy, CNC machining, deburring and surface treatment. The minimum order is 100 pieces. Send PDF, CAD, IGES or STEP drawings with the thread standard, bore profile, inspection dimensions and quantities for a component-specific quotation.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
