Custom 5 Axis CNC Milling and Machining Service for Open Frame Components with End Lugs and Side Holes
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeMilling
-
Material CapabilitiesBrass, Aluminum, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, OtherMicro Machining or NotMicro Machining
-
Model NumberS2412MaterialHardened Metals
-
ProcessCNC Machining Milling TurningSurface treatmentPainting\Powder Coating\Plating\Polishing
-
Drawing Format2D/(PDF/CAD/DWG/DXF)3D(IGES/STEP/VDA)ColorCustomized Panton Color or Ral Color
-
Processing TypeAxis CNC Machining Service

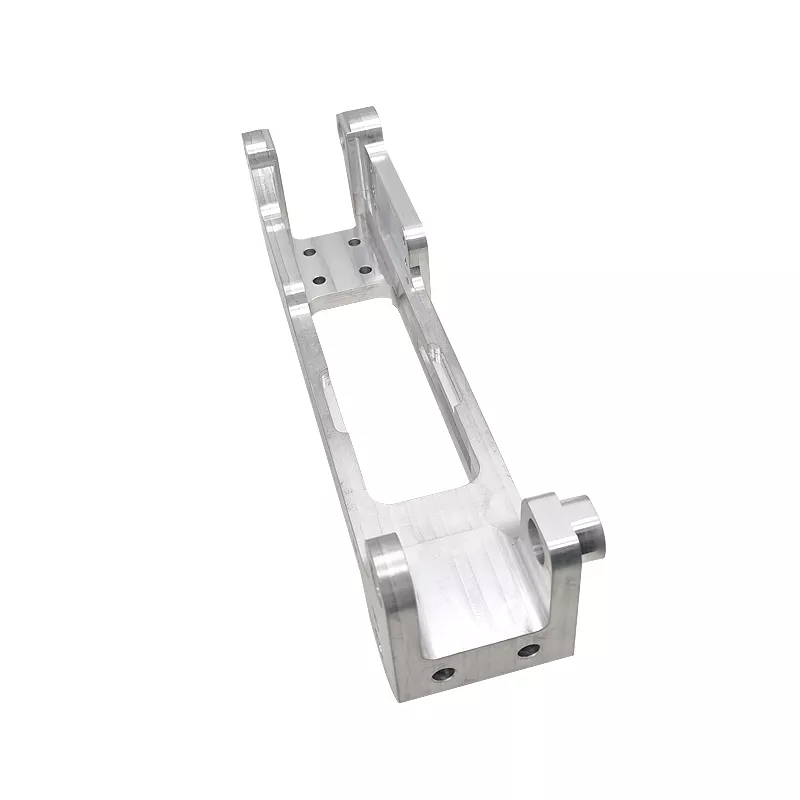

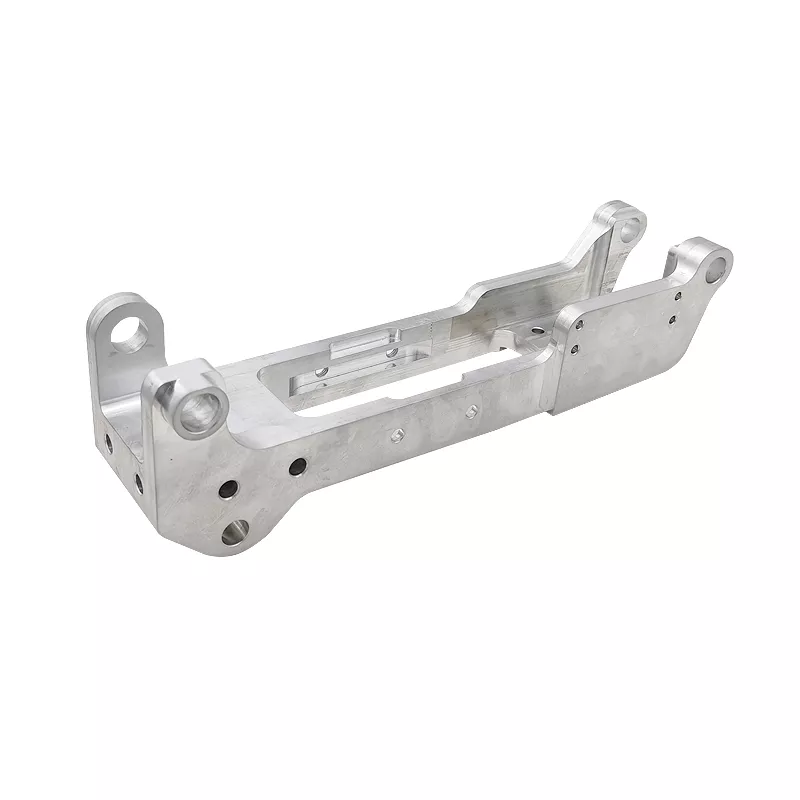

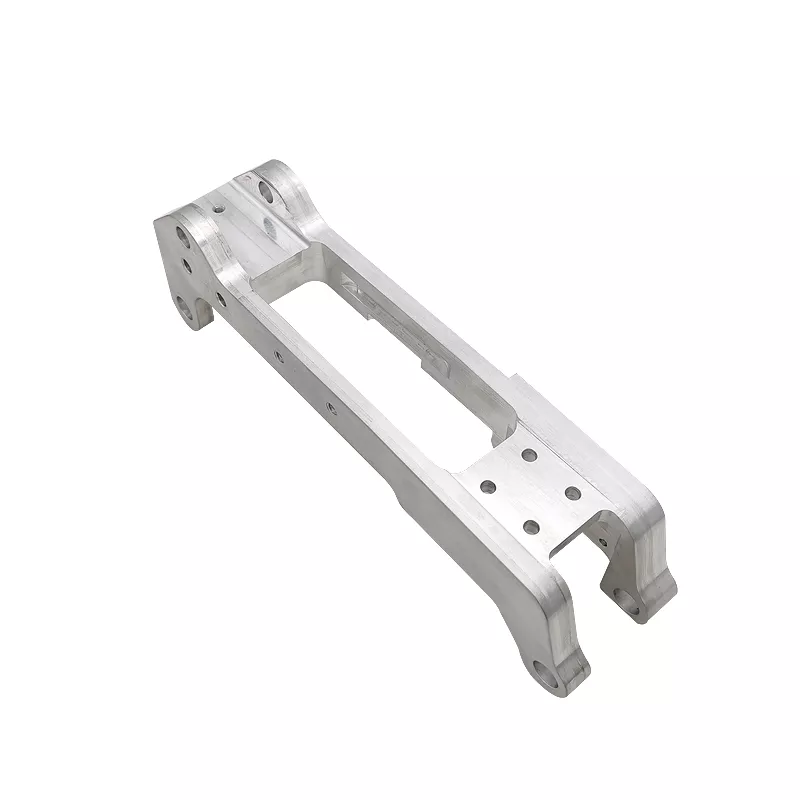

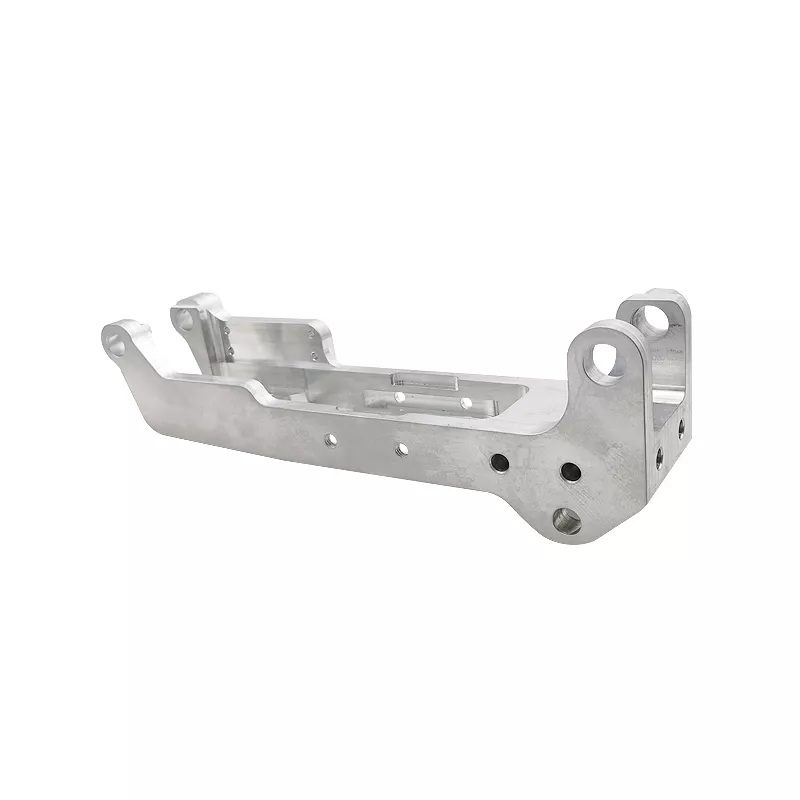

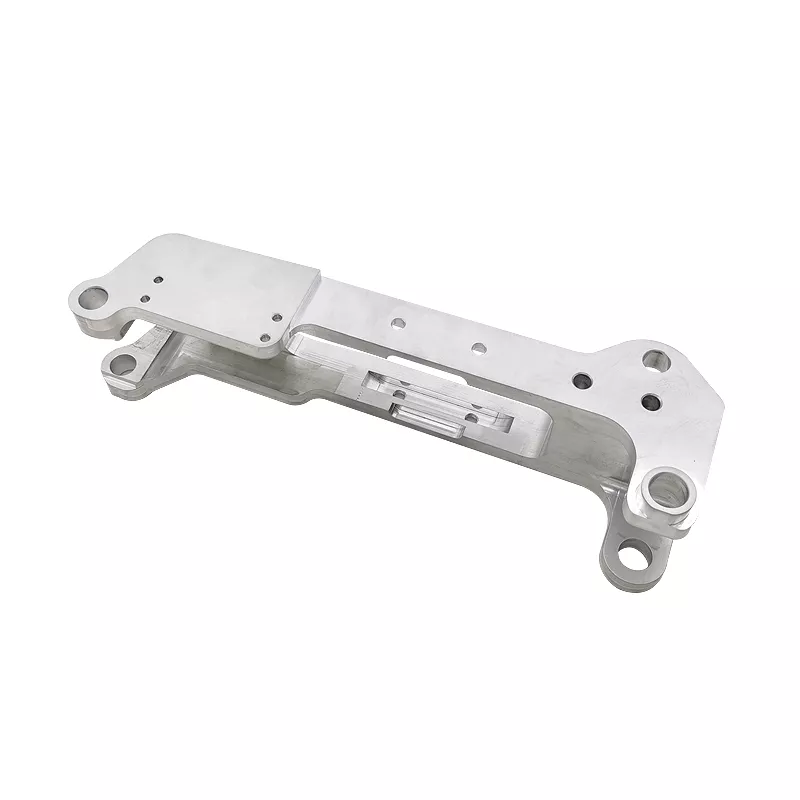

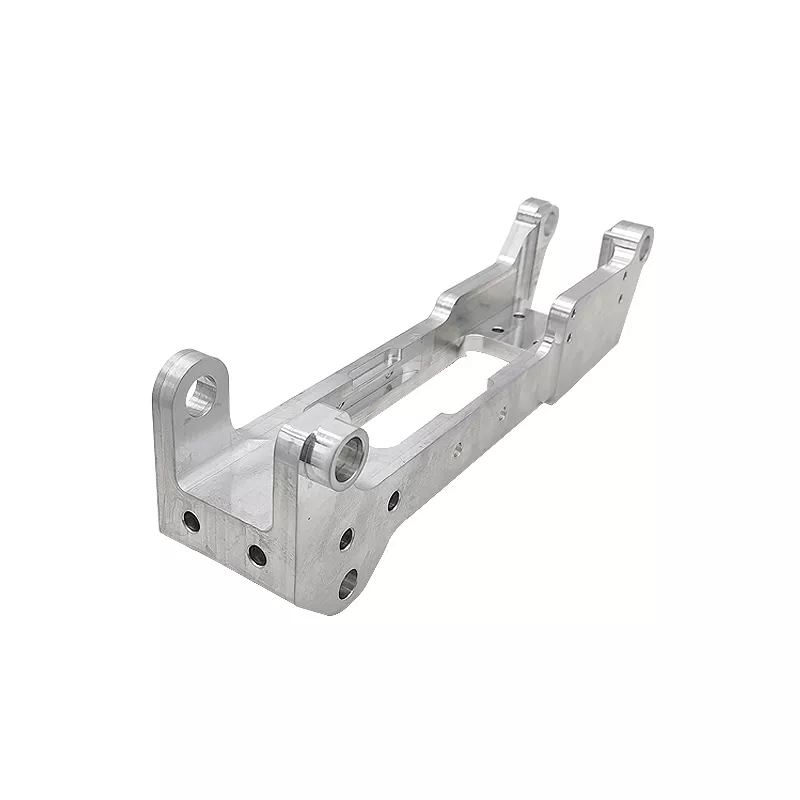

The main component has an elongated open frame, bored lugs at both ends and drilled features along its side walls. Its internal recess and raised end sections should be dimensioned from the assembly references.
Prepare a 5 axis machining enquiry
Identify the faces needing machining access, lug bore relationships, wall sections and fitted clearances. Supply the required metal grade and condition with the drawing. S2412 lists CNC milling and turning, finish alternatives including painting, powder coating, plating and polishing, and PDF, CAD, DWG, DXF, IGES, STEP or VDA formats. Include quantities and inspection requirements.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
