Custom Large Aluminum CNC Machining Parts with Open Recesses and Drilled Mounting Features
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS240307Product namecustom cnc machined parts
-
Surface treatmentanodizing/powder coating/painting/polishing / chrome plating etcMaterialAluminum Alloy
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ10 pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zincCertificationISO9001:2015
-
ProcessCnc Machining+deburrs +surface treatmentLogoAccept Custom Logo
-
Tolerance0.01mm

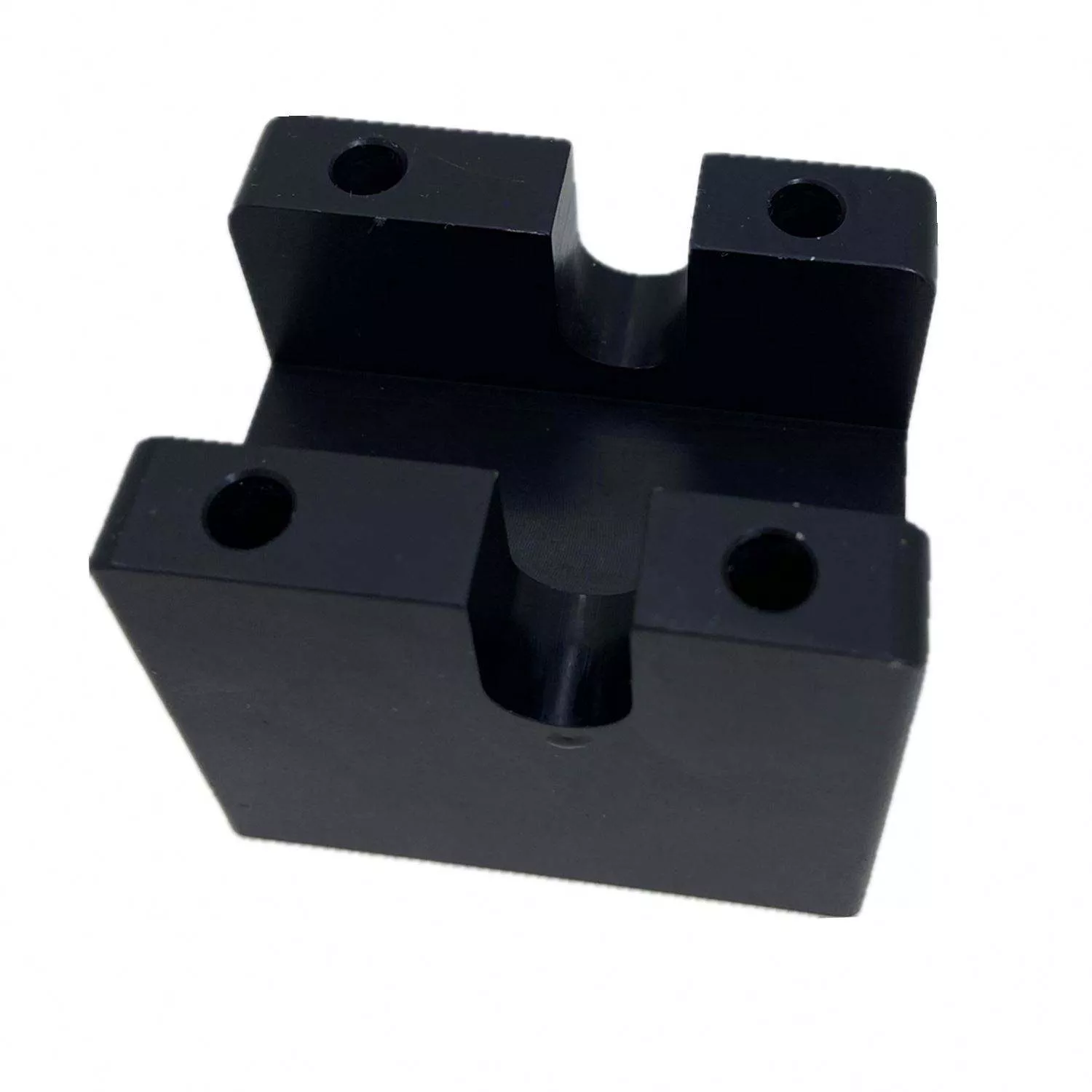

Open recess between drilled mounting areas
The main component has an open central recess with raised end areas and fixing holes. Specify its actual outer dimensions, recess profile and hole locations on the drawing, including the faces that establish the assembled position.
S240307 lists aluminum alloy with CNC machining, deburring and surface treatment. The minimum order is 10 pieces. Select anodizing, powder coating, painting, polishing or chrome plating for review and mark any fitted surfaces requiring protection. Provide PDF, CAD, IGES or STEP files, quantities, revision and acceptance requirements.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
