Product description
Project & Delivery Requirements
-
Model NumberS2405Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingCertificationISO9001 CE
-
MaterialPA66/PP/ABS /PC, EtcFeatureHigh Precision Injection Parts
-
Product namePlastic Injection PartsDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Surface treatmentPolish. Etched. Texture.electroplating.paintingColorCustomer's Request
-
ProcessInjection Mould Plastic PartApplicationIndustrial Plastic Parts
-
KeywordPlastic injection
Mounting holes and ribs on the reverse face

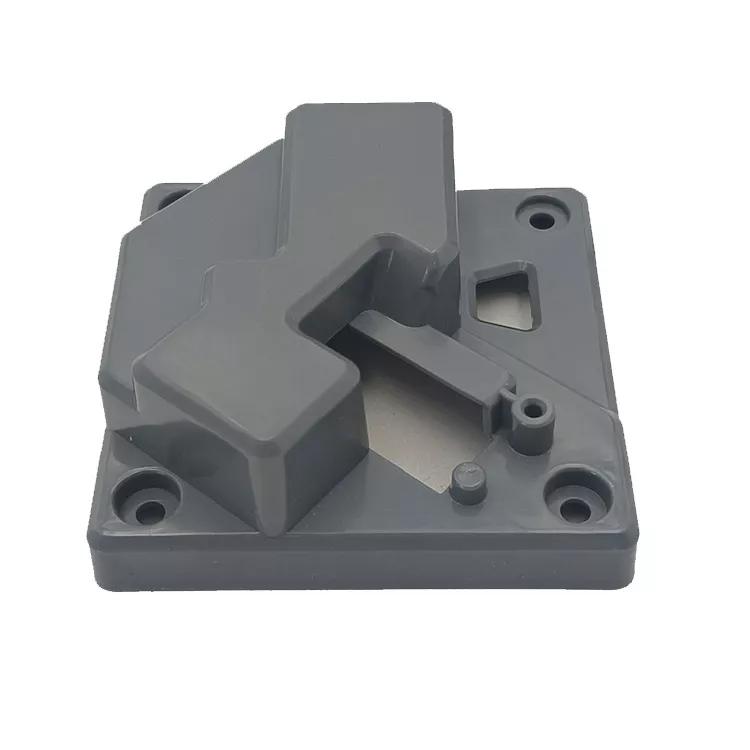

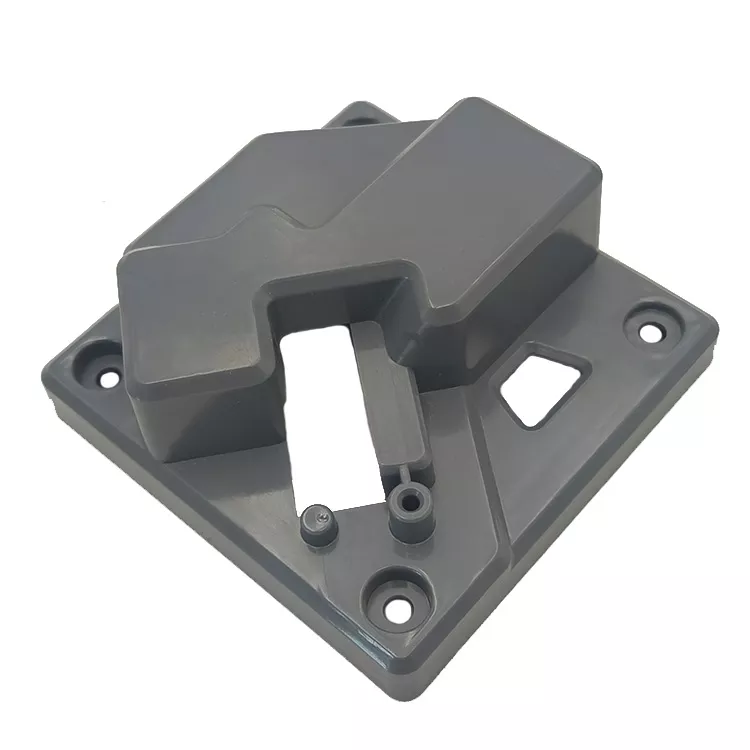

The dark plate has corner fixing openings, internal ribs, small raised posts and a shaped opening near its center. Define the mounting face and the positions of the openings from common references, including the reverse-side clearances.
For a nylon, ABS or PA66 project, specify one selected resin grade for each component. The broad material choices do not verify the composition of the photographed plate or a unique specification relative to similar examples.
Information for the mating assembly
Include the fastener arrangement, adjacent-part geometry, quantities and finish. Mark inspection dimensions for the holes, posts and central opening, with any required material documentation. Specify assembly fit on the drawing rather than inferring it from the image alone.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
