OEM Custom Aluminum CNC Milling Parts with Twin Bores Mounting Holes and Stepped Supports
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200448Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

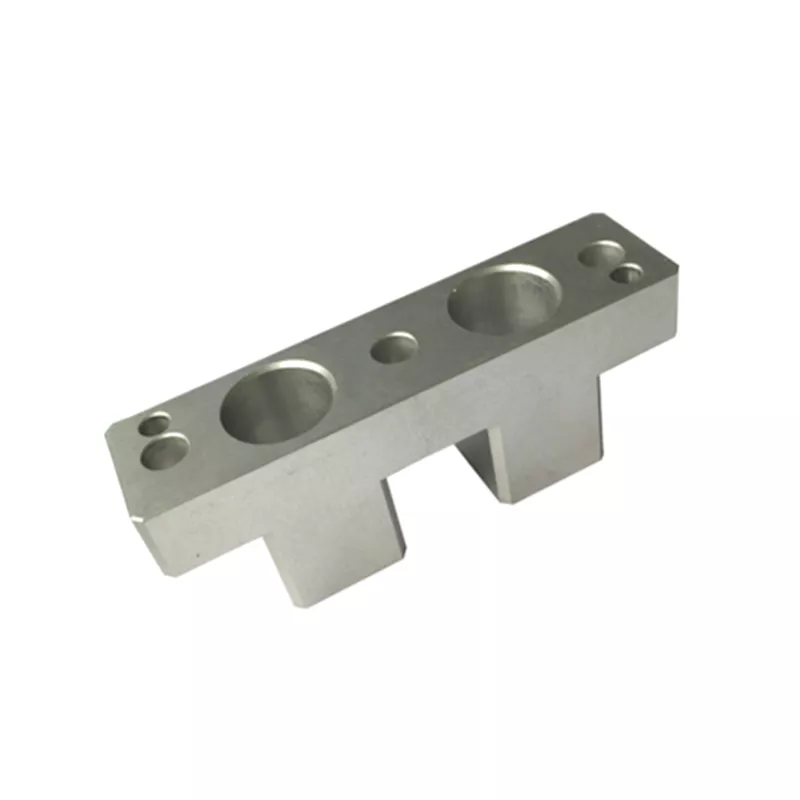

This aluminum machining example has an elongated upper face with two large bores, smaller fixing holes and projecting supports underneath. Define the complete part so the bore pattern and support positions are related to the faces used for mounting.
Dimensions to include
- Overall length, width, thickness and support geometry.
- Bore diameters, depths and spacing from the selected datums.
- Fixing-hole sizes, positions and finished edge requirements.
Dmetal-200448 lists aluminum alloy with customized sizes and anodized, oxide or powder-coated finish options. Identify the fitted surfaces requiring masking or inspection after finishing. PDF, CAD, IGES and STEP drawing formats are listed, with a minimum order of 100 pieces. Provide quantities and the current drawing revision for quotation.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
