Painted Iron and Steel Cast Parts | Aluminum Die Casting Bead Blasting Enquiries

• Model Number

  S240306
  Material

  aluminum /iron /steel/ zamac/cooper etc
• Application

  Industry
  Surface treatment

  Powder Coating /Painting / CNC /Anodizing etc.
• Process

  Casting +Machining(if Need)+surface Treatment
  Certification

  ISO9001/TS16949/RoHS
• Quality Control

  100% Inspected /ISO9001 System
  Drawing format

  2D/(PDF/CAD)3D(IGES/STEP)
• MOQ

  Negotiable
  Packing

  Poly Bag + Inner Box + Carton
• Standard

  EN124 Standard/EN1433/Customized

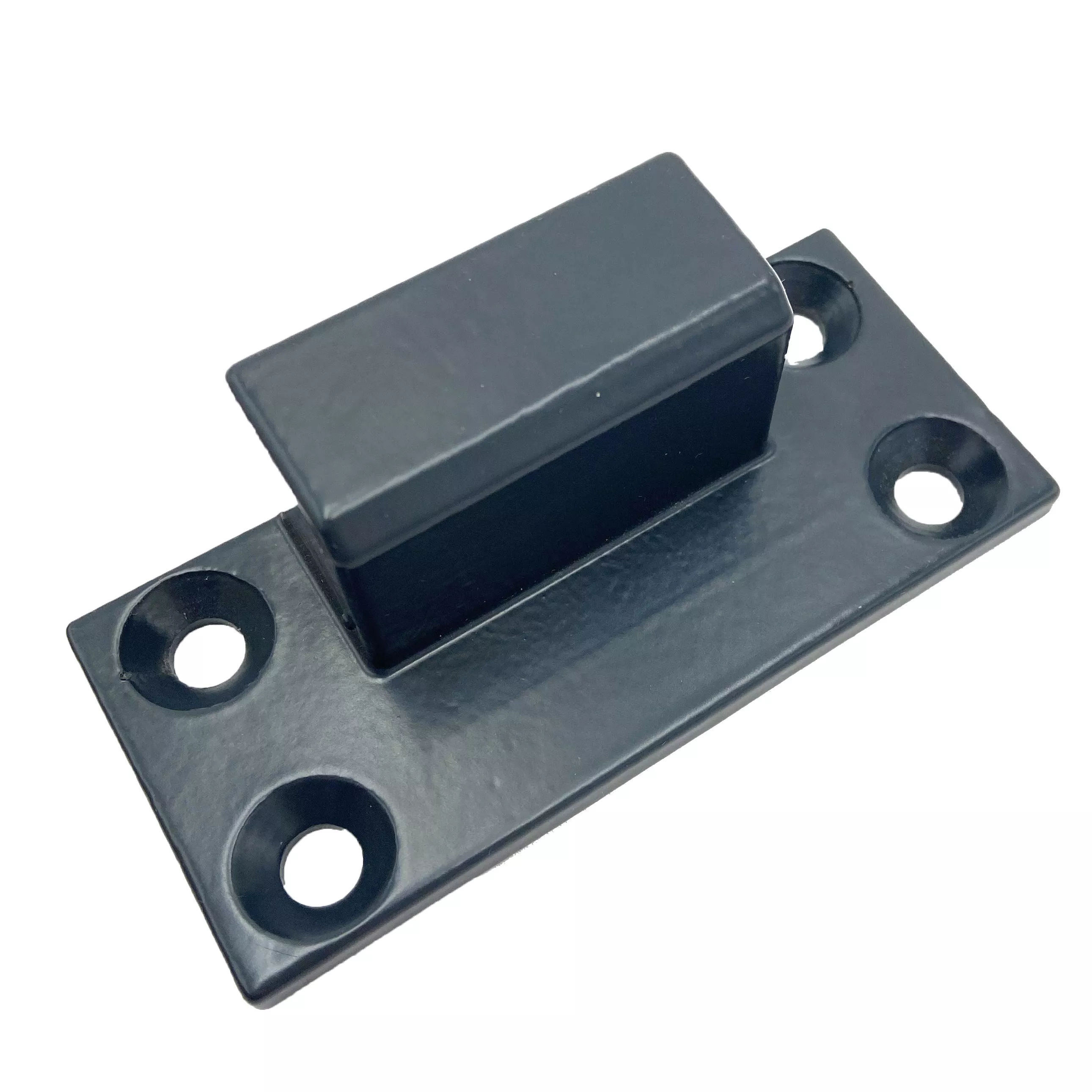

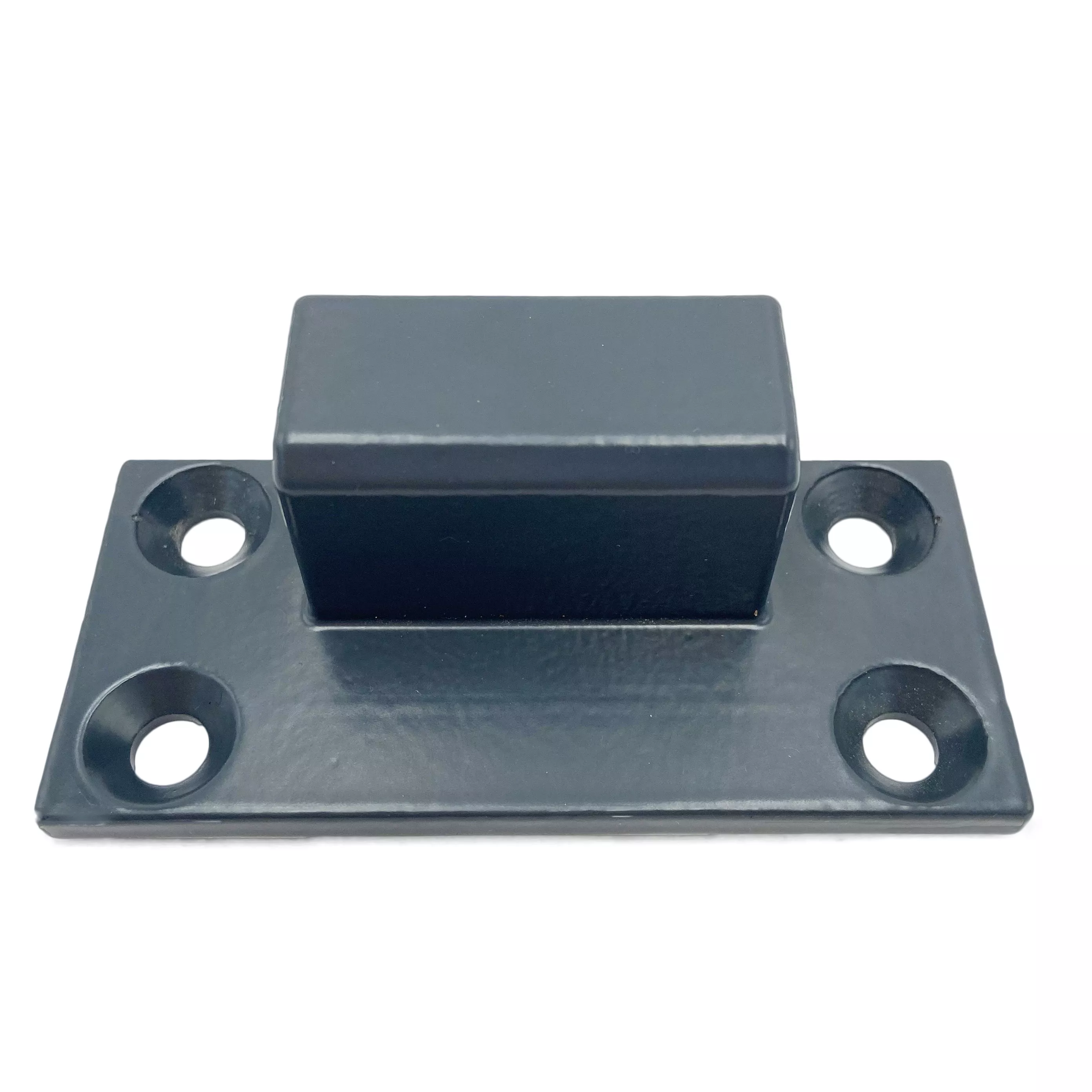

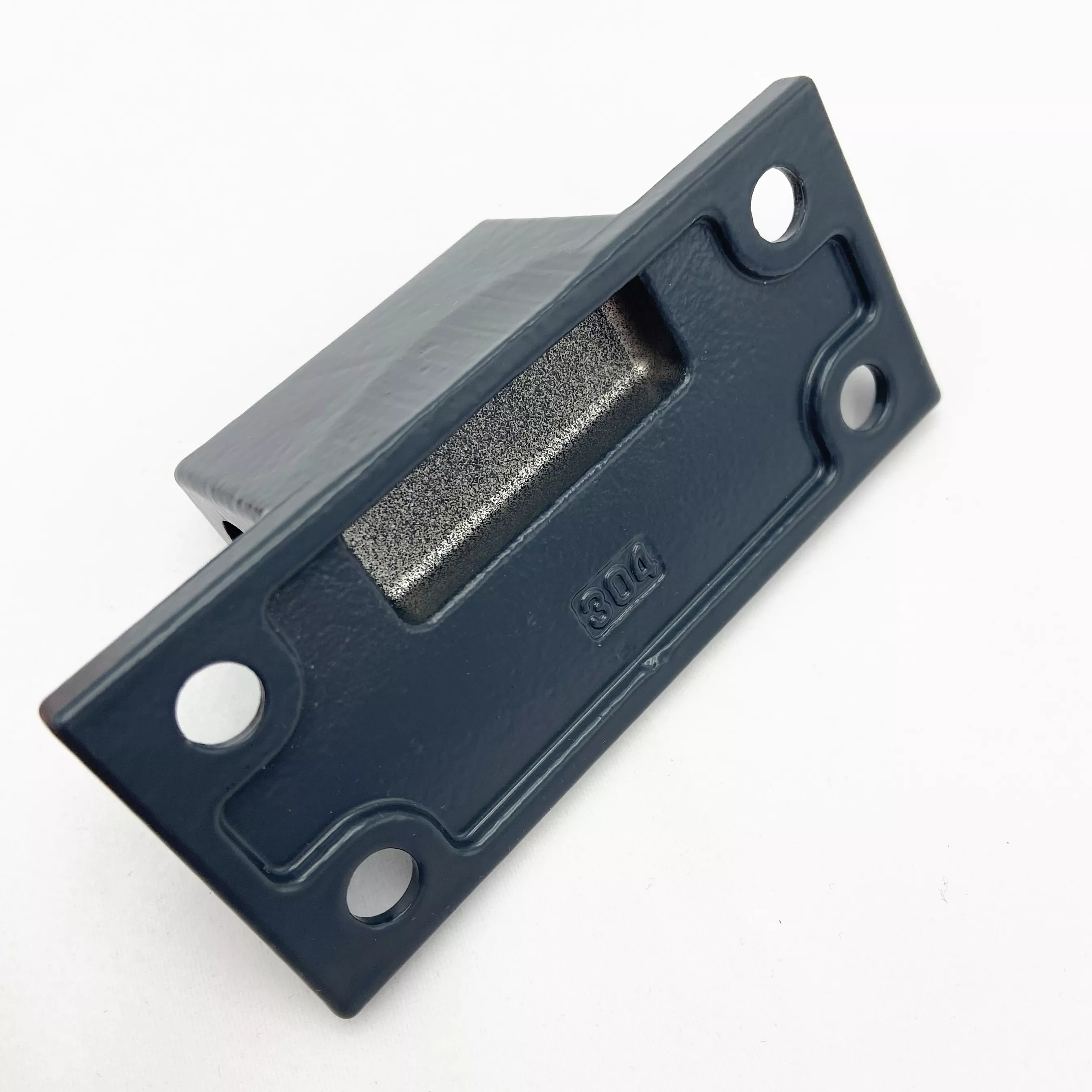

Define the raised-block component through its rectangular base and four fixing holes. The dark example has a central block-like body above the mounting plate. Color helps identify the appearance reference but does not establish paint chemistry, bead-blasting treatment or actual metal composition.

Locate the raised body on the mounting base

Provide the base outline, hole positions and central-body section from common datums. Identify contact faces and any hidden geometry required by the design. Supply mating details wherever they determine mounting clearance, alignment or the finished condition of the raised block.

• Identify the raised-block drawing and controlled revision.
• Choose actual iron, steel or aluminum requirements.
• Define casting and any secondary machining.
• Specify paint or bead-blast appearance and masking.
• Agree final inspection and application criteria.

Select the actual metal and surface scope

Iron and steel casting requests are separate from an aluminum die-casting alternative. Define the actual grade, condition and forming plan for the selected component. CNC work is a machining operation; any selected treatment must be compatible with the actual material and the intended surface requirements.

Check the delivered base and contact regions

State units, tolerances and whether interface dimensions are checked before or after the selected finish. Provide controlled PDF/CAD or IGES/STEP geometry with material and inspection records required by the order. Any standard or certification requirement needs current, applicable evidence rather than a general label.

Include quantities, intended installation and any functional tests. The raised block and fixing pattern establish neither allowable load nor suitability for an unspecified machine; define those actual acceptance conditions where required.

Discover the versatility and reliability of Dmetal Painted Iron Casting Parts, meticulously crafted for a variety of industrial applications. Made from high-quality materials including aluminum, iron, steel, zamac, and cooper, these components are designed to meet the rigorous demands of modern manufacturing.

The innovative combination of casting and machining processes ensures precision and durability in every part. Whether you require a simple design or a complex assembly, our team can accommodate your needs with expert craftsmanship and attention to detail. With surface treatments such as powder coating, painting, CNC machining, and anodizing, we guarantee a finished product that meets your aesthetic and functional requirements.

Each component adheres to the highest industry standards, supported by certifications like ISO9001, TS16949, and RoHS, ensuring quality and compliance for every order. Our rigorous 100% inspection process under the ISO9001 system ensures that only the best products reach your hands.

We offer flexibility with a negotiable minimum order quantity (MOQ), making it easy to incorporate our parts into your projects without excessive overhead. For transportation, our components are thoughtfully packed in poly bags, inner boxes, and sturdy cartons, ensuring they arrive in perfect condition.

For your convenience, we support various drawing formats including 2D (PDF/CAD) and 3D (IGES/STEP), facilitating seamless collaboration and design adjustments. Trust Dmetal for all your casting and machining needs, where quality, precision, and customer satisfaction come together.
