Custom Brass Casting Parts with Flanged Tubular Bodies and Threaded Side Bosses
-
Model NumberS2401MaterialAluminum/Stainless Steel/Iron/Cooper/Brass/Zinc etc...
-
ApplicationIndustryDimensionsCustomer Required
-
Surface treatmentPaint/Powder coating/oxidation etcMold makingBy ourself
-
ProcessDie Casting-deburring- MachineryServiceOEM ODM
-
FeatureEco FriendlyQuality ControlProfessional Inspection
-
PackingCarton box + wood pallets
Flange, central bore and side connection

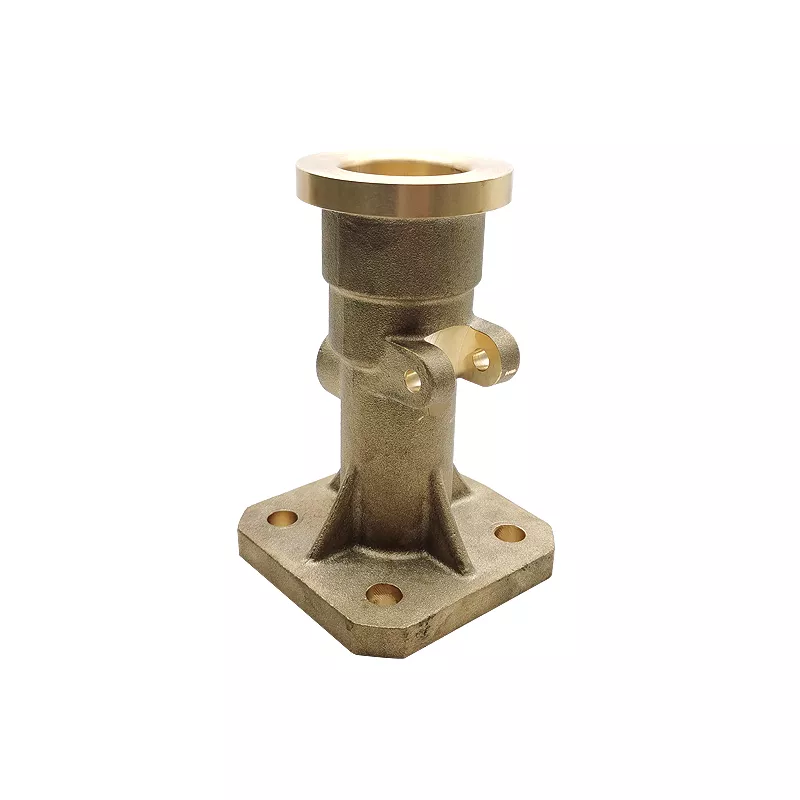

The illustrated body joins a square mounting flange to an open cylindrical section. Ribs connect the tube to the flange, and a smaller side boss has a visible internal thread. Specify the central bore and flange-hole locations separately from the side-thread size and depth; the photograph does not identify a thread standard.
Information for a brass casting enquiry
Brass is among the materials listed for model S2401. Identify the required alloy and submit the casting and finished-part requirements for review of the casting and machining route. OEM and ODM service and customer-required dimensions are listed. Agree any paint, powder coating or oxidation treatment for the selected material, including areas to mask around threads and mating faces. Define inspection requirements without assuming a pressure rating from the tubular shape.
Elevate your manufacturing process with our Dmetal Precision Casting Parts, expertly crafted to meet the diverse needs of various industries. Manufactured using a combination of high-quality materials such as aluminum, stainless steel, iron, copper, brass, and zinc, these casting parts ensure durability and reliability in any application.
The model number S2401 is designed for versatility, accommodating custom dimensions as required by your project specifications. Our dedicated in-house mold making capabilities enable us to produce precise die casting components that fulfill intricate designs and functionalities.
To enhance performance and aesthetic appeal, we offer a range of surface treatments including paint, powder coating, and oxidation. Every product undergoes meticulous inspection as part of our professional quality control processes, ensuring that only the best reaches our clients.
Whether you require OEM or ODM services, our eco-friendly manufacturing practices align with modern sustainability goals. Each order is securely packed in carton boxes with wood pallets, guaranteeing safe delivery to your location.
Choose Dmetal for your next project and experience the seamless integration of quality, functionality, and innovation in every casting part.
