Custom Precision CNC Turning and Milling Small Metal Housing Parts with Circular Bores and Mounting Flanges
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes
Circular recess and side mounting flange

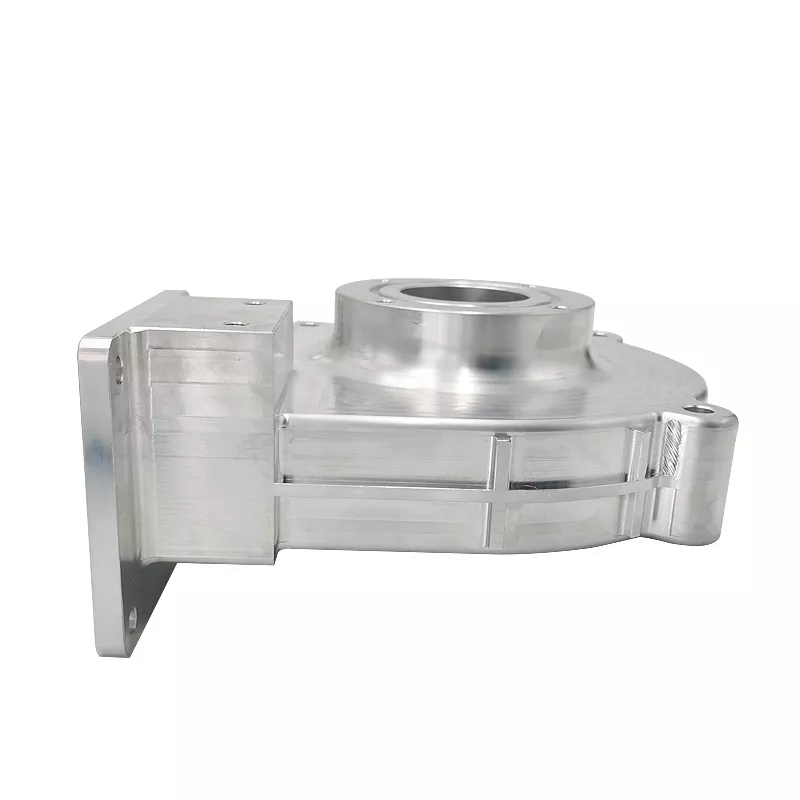

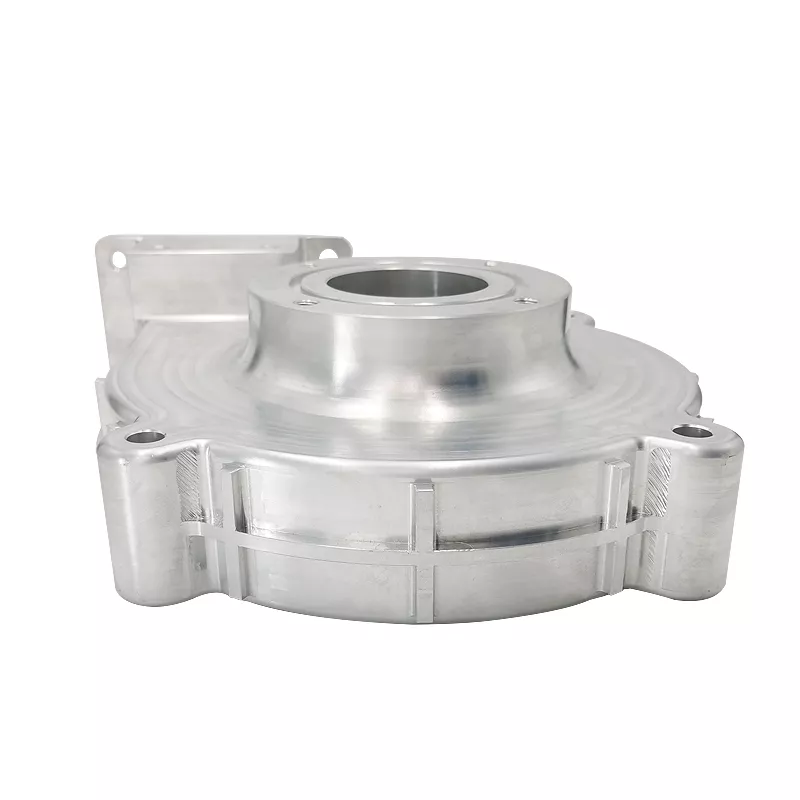

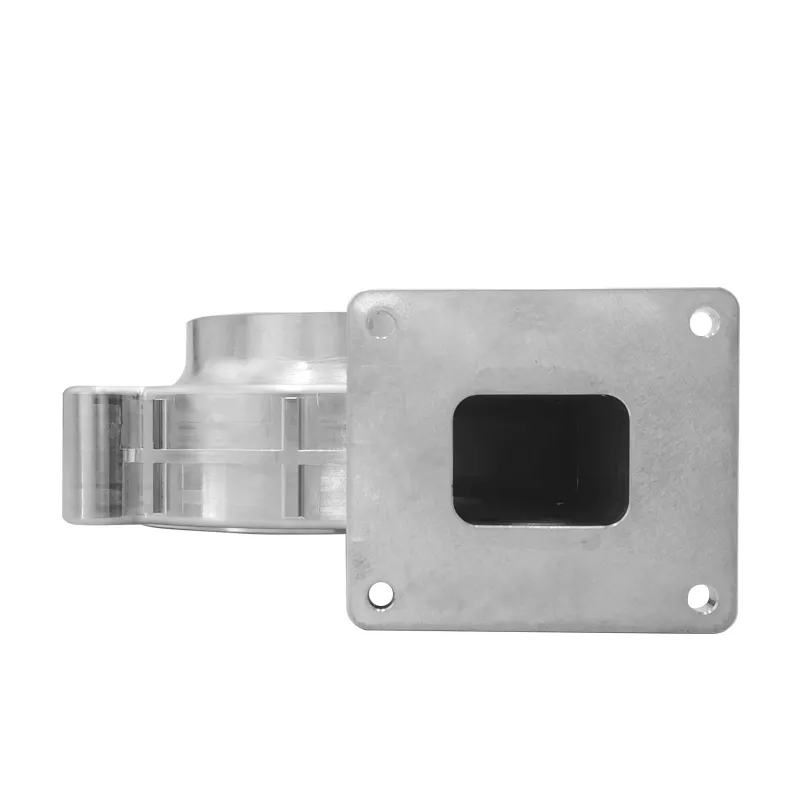

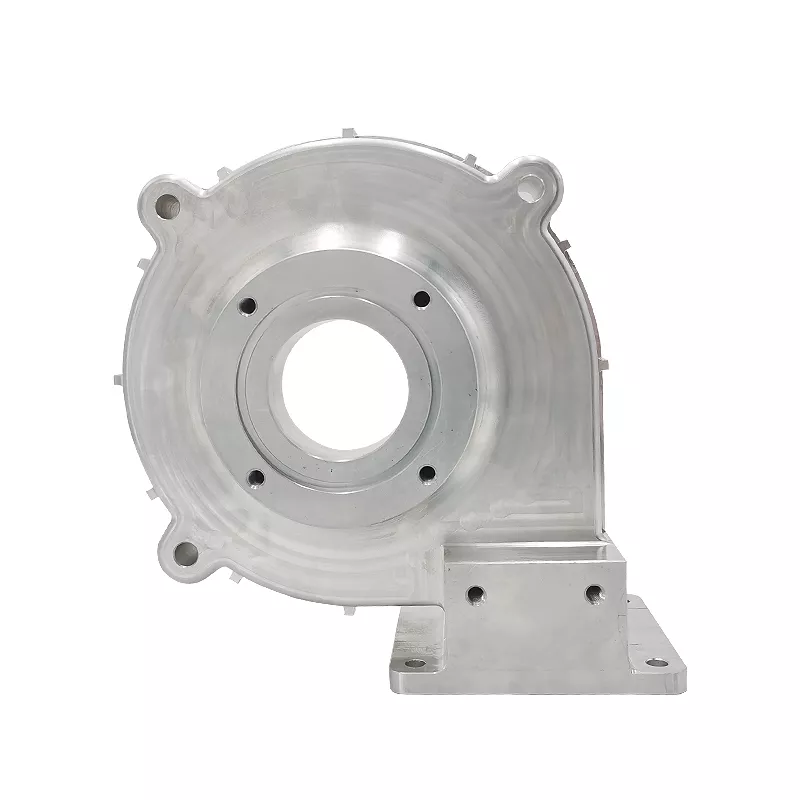

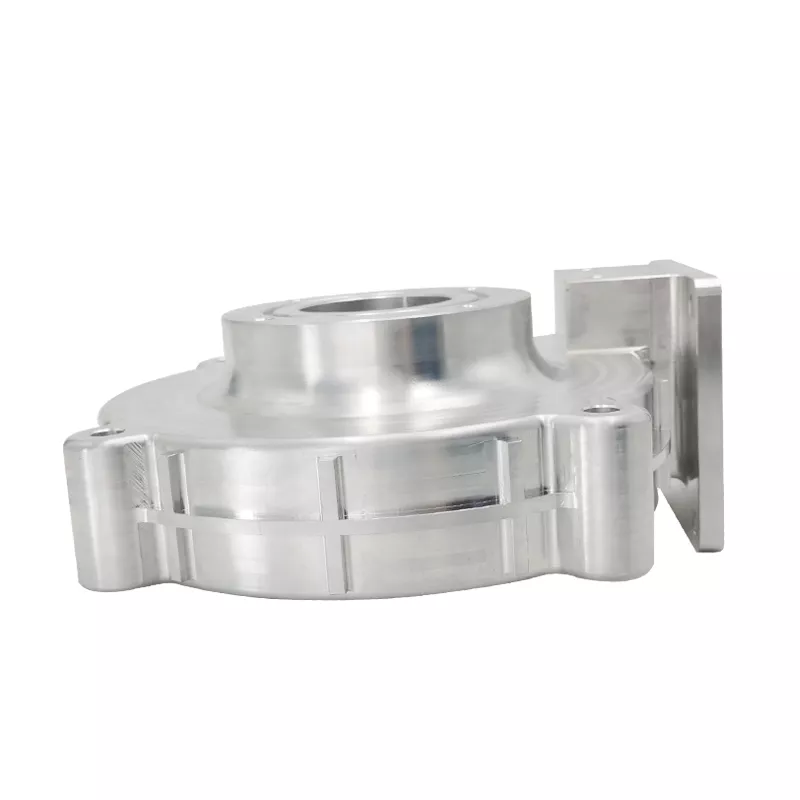

This housing example has a broad circular recess, a smaller central bore, a ring of fixing holes and a side flange. A custom machining drawing should relate the bore and recessed face to the outer mounting points and the flange position.
Information for machining review
Specify the recess diameter and depth, central-bore fit, hole pattern and flange dimensions. Show section views where they define internal clearances. Identify the faces used to locate the component and the surfaces requiring inspection after machining.
Aluminum, steel and brass are listed material choices for the CNC turning and milling service. State the chosen grade and final surface treatment, including any masking around fitted diameters. Provide PDF, CAD, IGES or STEP drawings, quantity and revision for quotation of the required housing configuration.
