Custom Hot Forging and Precision CNC Machining | Elongated Mining Chain Connectors

• Model Number

  2406
  Material

  Iron/Steel
• Application

  Mining
  Dimensions

  Customer Required
• Surface treatment

  Paint/Powder Coating/Oxidation etc
  Mold making

  By Ourselves
• Fast Deliver

  With stocks
  Quality Control

  Professional Inspection
• Packing

  Individually Packed or as per your requirements
  Process

  Forging+Machining(if Need)+Surface Treatment

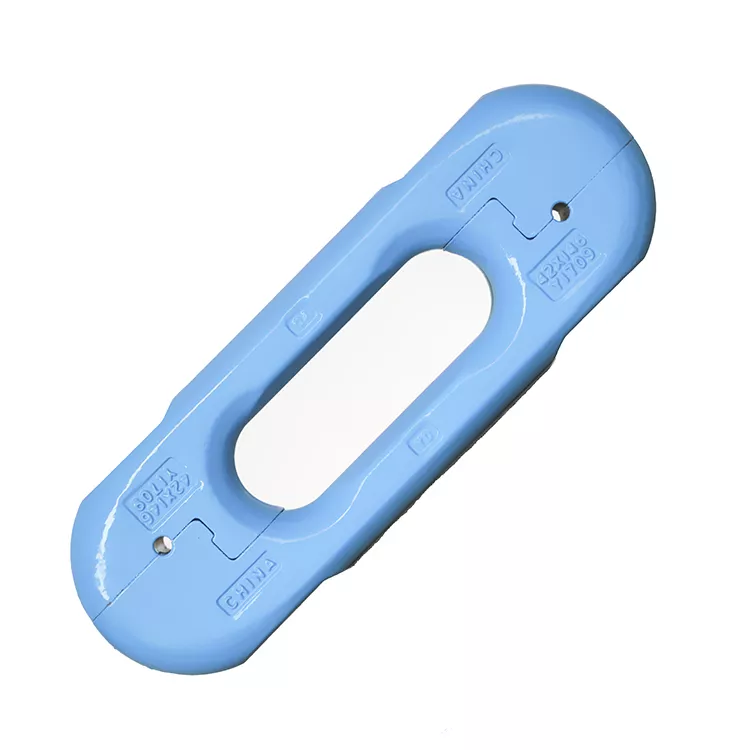

The elongated slotted form is the starting point for this mining-chain connector request. The light-blue example has rounded outer ends, a long central opening and smaller holes or recesses near both ends. Define those relationships from the chain assembly rather than deriving actual dimensions or allowable duty from the photograph.

Draw the slot and end connections together

Provide the component section and adjoining-chain geometry. Dimension contact radii, the central opening, end features and any joint or retention parts. Mark the datums used for inspection and identify whether pins or other separate pieces form part of the proposed connector supply.

Select the hot-forging and machining plan

State the actual metal grade and required supplied condition for the chosen design. Review hot forging, optional CNC machining and the compatible surface treatment as separate parts of the manufacturing scope. Identify areas needing masking or final dimensional measurement after the selected finish.

• Reference the elongated connector and chain drawing.
• Specify actual metal grade and required condition.
• Control slot, end details and contact sections.
• Mark forging and any precision CNC work.
• Agree duty-related tests and inspection documentation.

Define what precision and suitability mean

Express precision through drawing tolerances at the working interfaces. If the connector carries load, provide service conditions and applicable strength, fatigue or functional acceptance methods. Surface appearance establishes neither heat treatment nor chain compatibility, working load or current qualification.

Include quantities, drawing revisions and required material records with the enquiry. Keep the supplied connector configuration explicit so a quotation for an individual slotted link can be compared against the actual mining-chain installation requirement.
