Custom Precision Aluminum CNC Milling Spare Parts with Forked Recesses and Drilled Top Faces
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDM240315Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.02mmToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

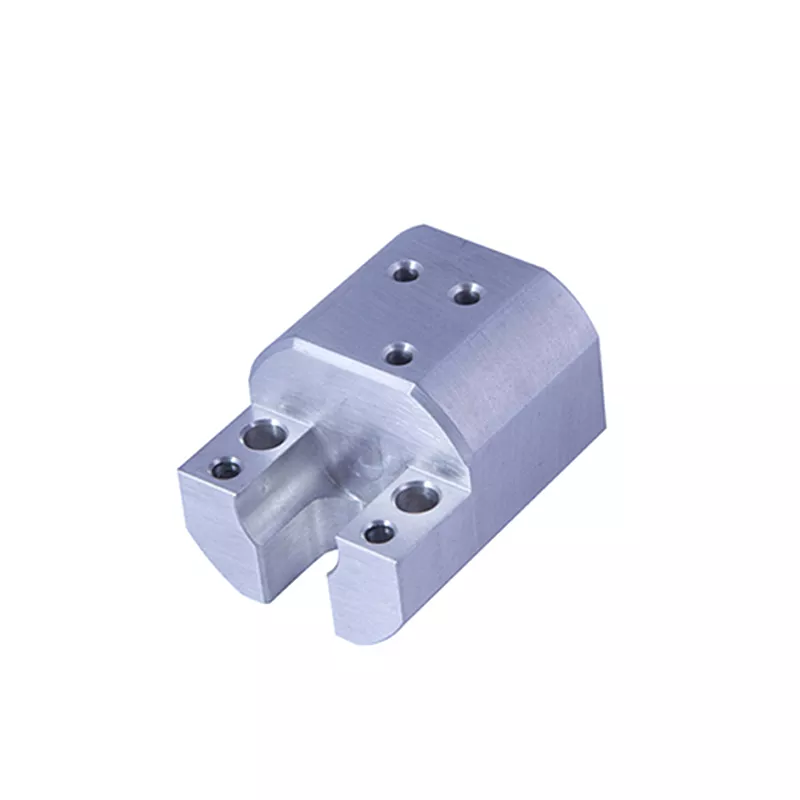

This component has a forked open end, a recessed inner profile and drilled features across its upper faces. Define the relationship between the recess, outer contour and fixing holes from the assembly references.
Drawing and order information
Dimension the recess width and depth, fork sections and hole pattern. Mark the fitted faces and inspection points. DM240315 lists aluminum alloy, customized sizes and anodized, oxide or powder-coated finishes. PDF, CAD, IGES and STEP formats are listed, with a minimum order of 100 pieces. Include quantities, alloy selection and drawing revision for review.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
