Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes

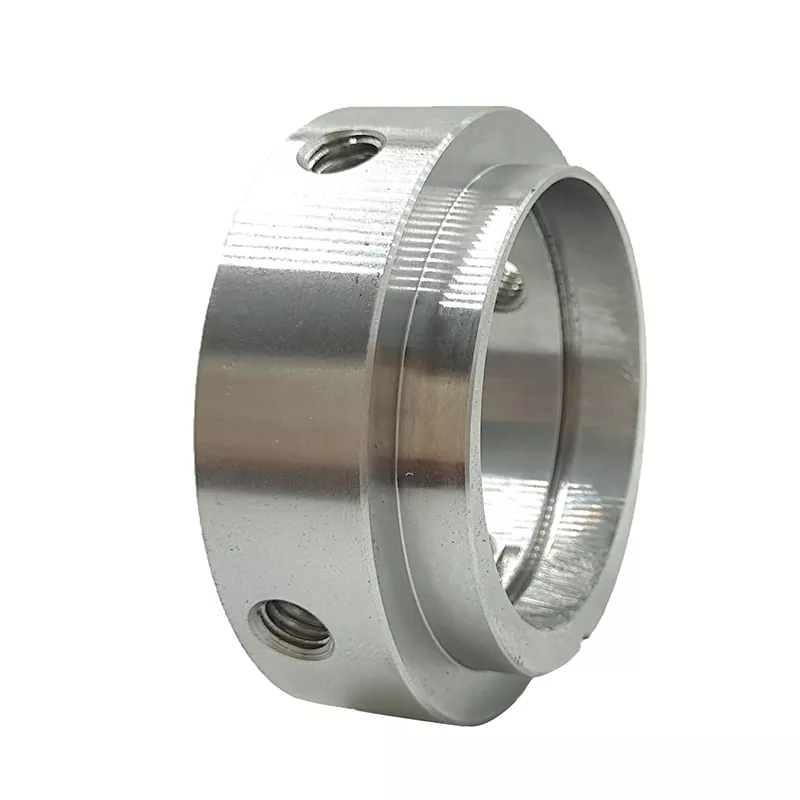

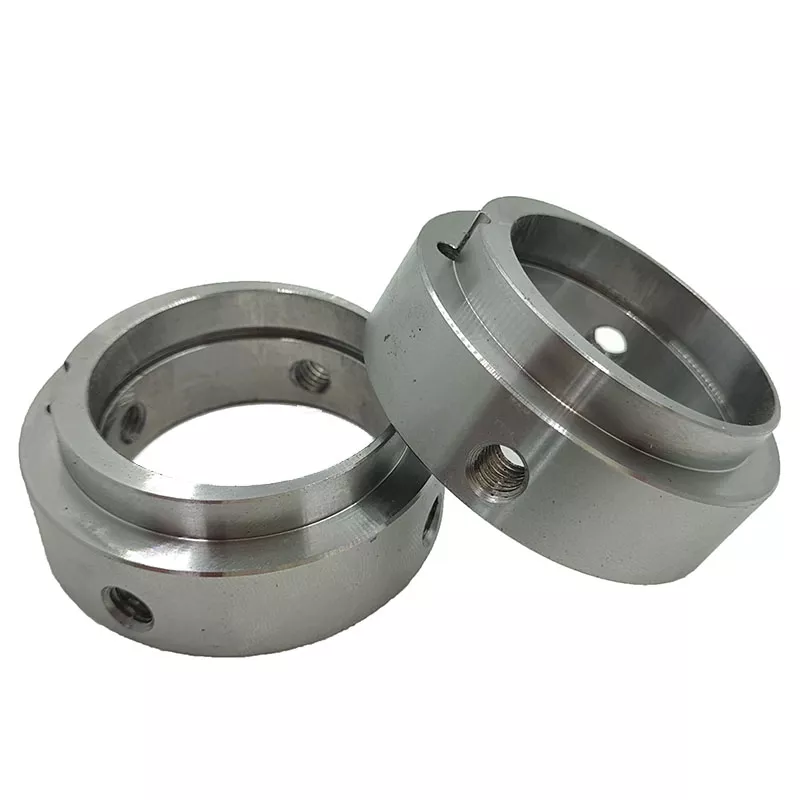

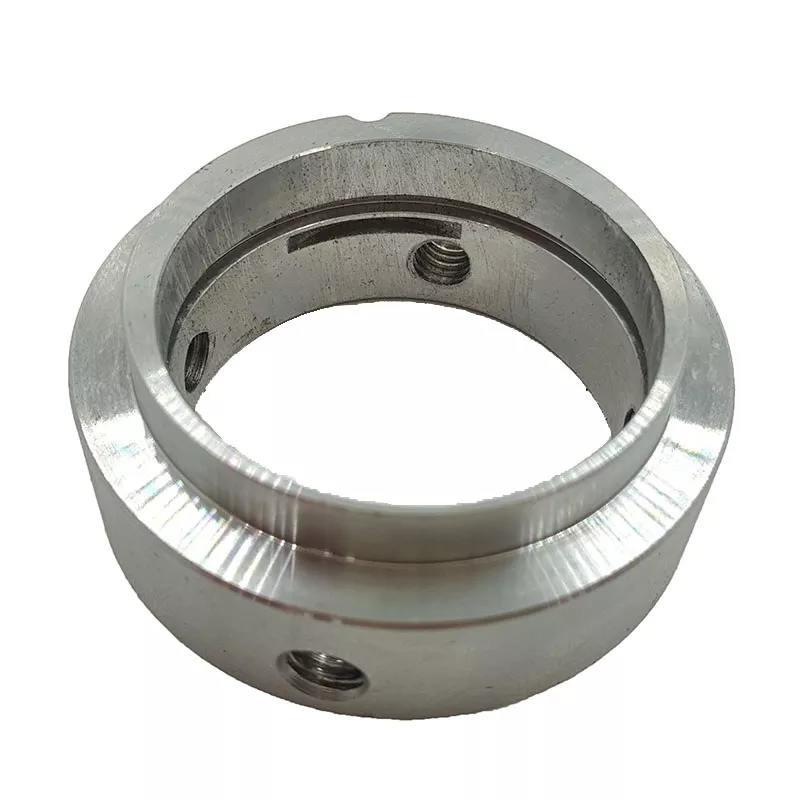

Stepped ring with threaded radial openings
The example has a large central bore, stepped outer diameters and openings through the side wall. Dimension the bore and outside steps from a common axis, including the relationship to the radial threads.
Specify the aluminum or stainless grade, or identify titanium separately for review. The general material list does not confirm a titanium version, and the image does not establish a 5-axis setup.
Machining and acceptance details
Mark areas requiring multi-face access, quantities and the chosen finish. Include inspection criteria for bore fit, thread position and end faces. The ring does not establish pressure capacity or one shared size across alloy options.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
