Custom ABS Nylon Injection Molded Plastic Parts with an Offset Internal Bore for Rapid Prototype and Mold Review
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberDmetal2309Plastic Modling TypeInjection
-
Processing ServiceMoulding, CuttingApplicationCustom Palstic Parts
-
Drawing Format.pdf/ .stp/.stepProcessInjection Molding
-
MaterialPA66/PP/ABS /PC/ Glass Fiber, EtcKeywordCustom Plastic Injection Parts
-
NamePlastic InjectionMOQ100 pcs
Coordinate the outer shell with the offset bore

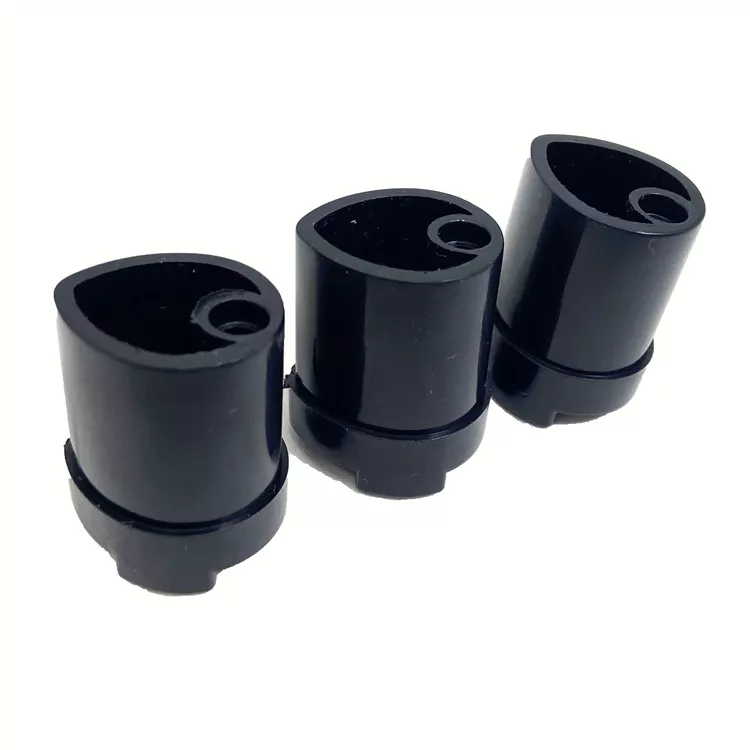

The examples show a hollow cylindrical form with a smaller internal tube offset from the center and a projecting feature at the rim. Specify the internal tube position, bore, shell thickness and end profile against the assembly datums.
For rapid prototype and mold review, state the selected ABS or PA66 nylon grade and the quantity needed. Model Dmetal2309 lists injection molding and cutting, PDF, STP and STEP drawings, and a minimum order of 100 pieces. Mark the fit dimensions and inspection method; prototype timing and tooling scope require review of the actual design.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
