ODM OEM Custom ABS PP PC Injection Molded Parts | Open Channel Components

• Model Number

  2010
  Plastic Modling Type

  Injection
• Processing Service

  Moulding, Cutting, Painting
  Product name

  Custom Plastic Injection Molded Parts
• Color

  Customized
  Size

  Customized Size
• Material

  PA66/PP/ABS /PC, Etc
  Certification

  ROHS
• Shape

  Customized Shapes
  Packing

  Standard Carton Box
• Service

  Prompt Delivery
  Surface finish

  Matt Surface
• Package

  PP Bag

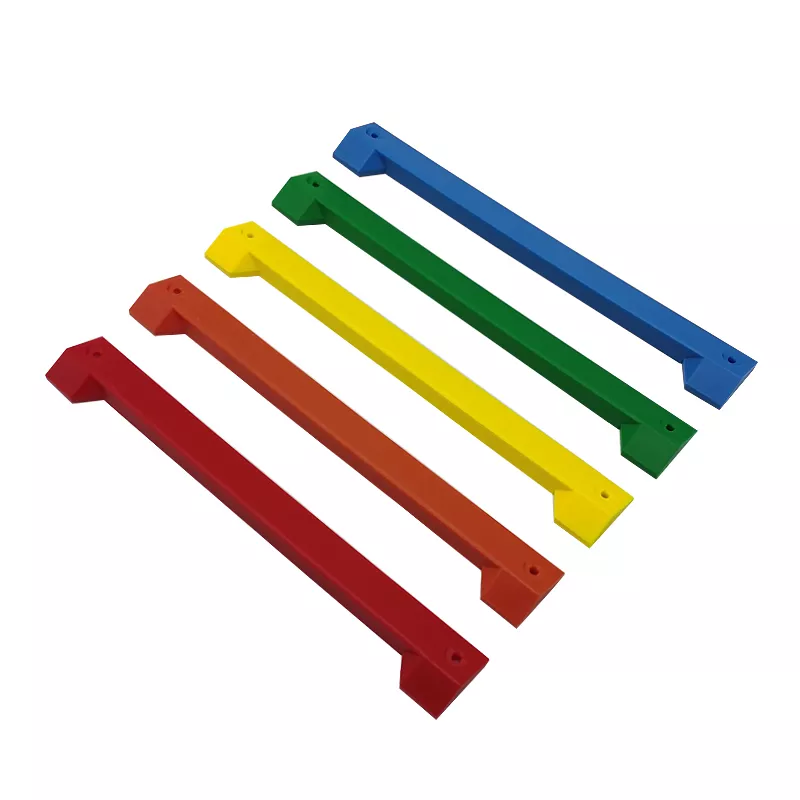

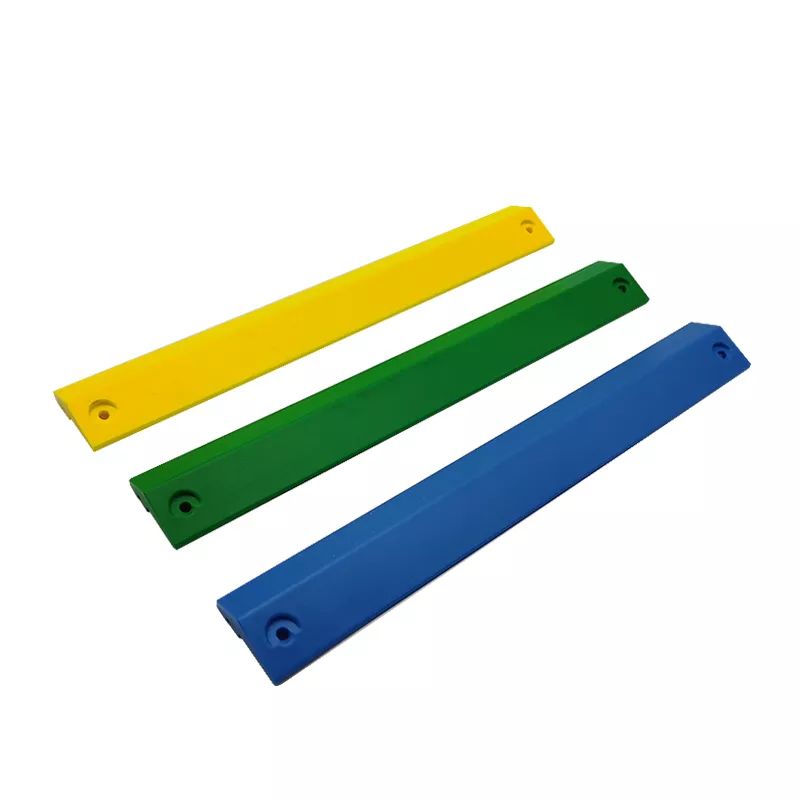

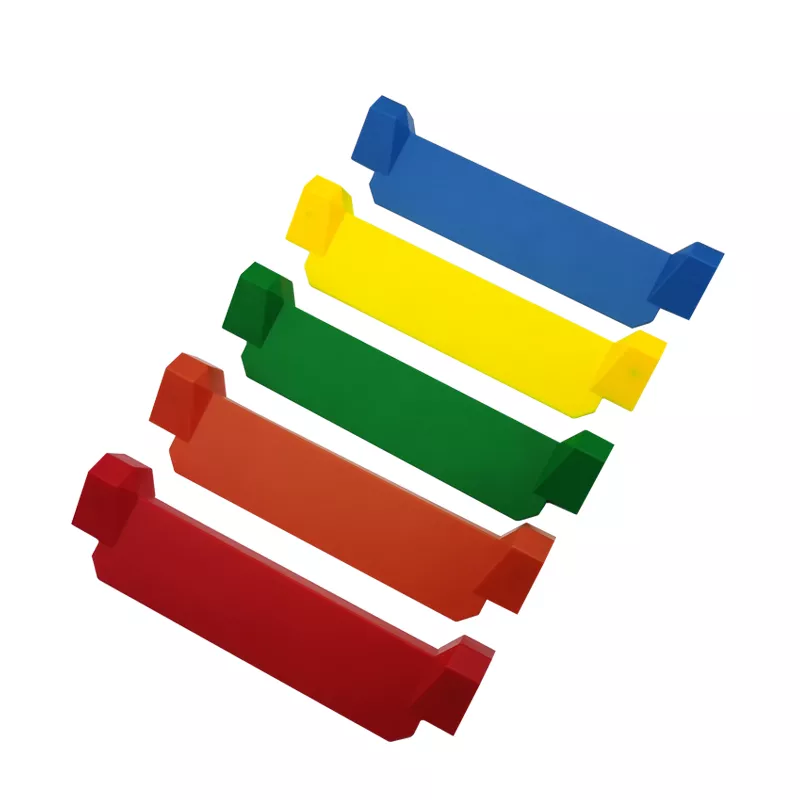

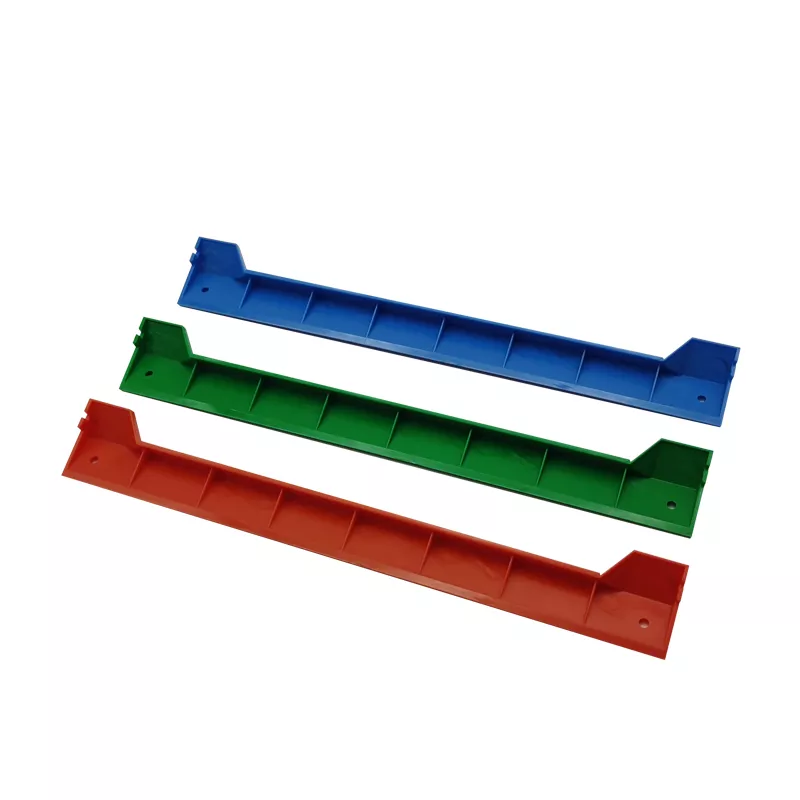

Define the open channel component through its central length and raised end regions. The blue, yellow, green and red examples provide several surface appearances of elongated forms. Their colors do not establish actual resin grade, identical dimensions, a supplied set or a particular load-bearing function.

Locate the end regions from the channel section

Provide sections and the actual component length on controlled drawings. Identify the adjoining parts, contact faces and clearance requirements at each end. State whether inserts or fixing hardware are included, with separate definitions for differing channel configurations rather than treating every pictured color as one interchangeable version.

Select the polymer and molded finish

ABS, PP and PC are separate material directions, with other listed plastics selected individually. Specify the actual grade and required condition for the order. Define color reference, matt appearance and any secondary cutting or painting where needed; photographs cannot establish a precise shade or common treatment chemistry.

• Identify each open-channel component and quantity.
• Dimension the central section and raised ends.
• Select actual resin grade and supplied condition.
• Define color, finish and included accessories.
• Agree interface inspection and application evidence.

Inspect the channel at its working contacts

Mark drawing tolerances with units, datums and final measurement conditions. Provide actual operating conditions for any mechanical, environmental or functional requirement, with suitable acceptance methods. A channel-like form alone proves neither allowable loading nor compatibility with an existing assembly.

Include controlled geometry and requested material or inspection documentation. Keep the quotation schedule tied to individual drawings so the proposed delivery can be checked against the intended channel arrangement.
