Custom Stainless Steel Sheet Metal Control Plates | Laser Cutting, Bending and Stamping
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberDML240901Product nameSheet Metal Fabrication
-
Drawing format.step / .stp / .pdfSurface finishingPowder Coating
-
ColorBlack, White and CustomizedApplicationElectronics
-
MOQ100PackagingIndividual Packing

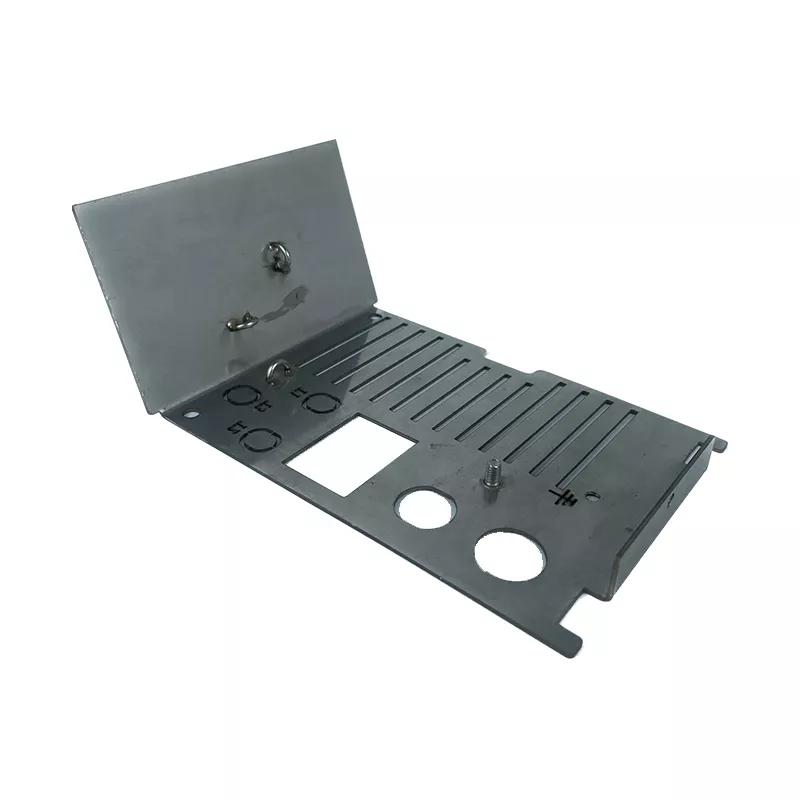

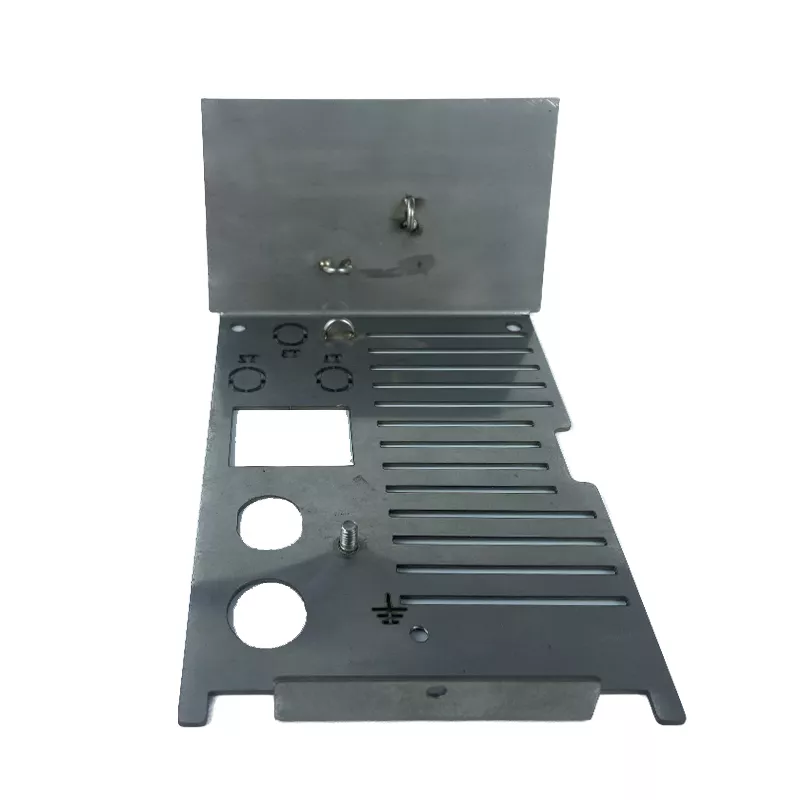

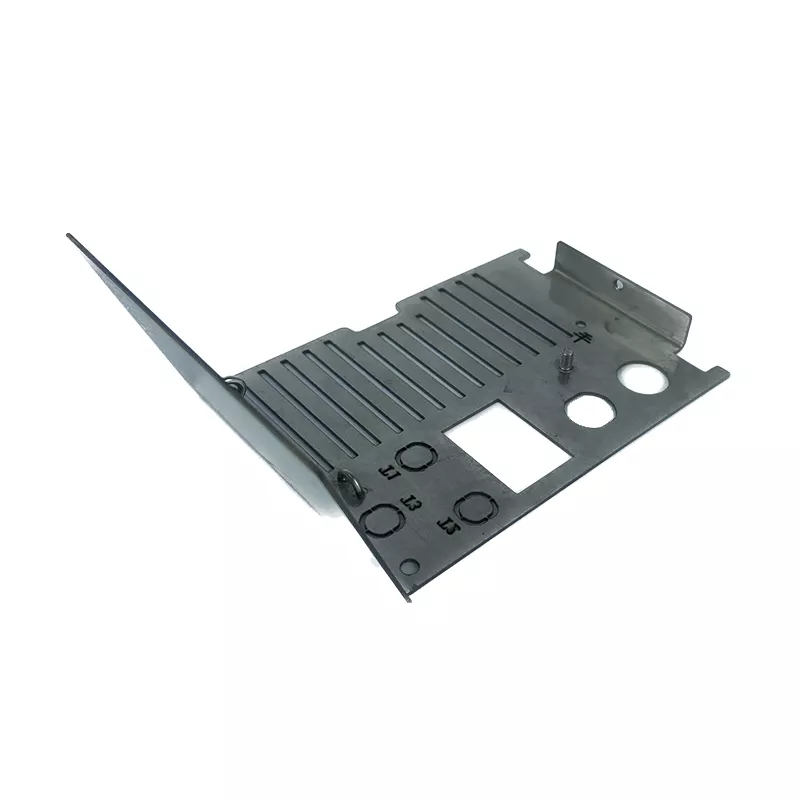

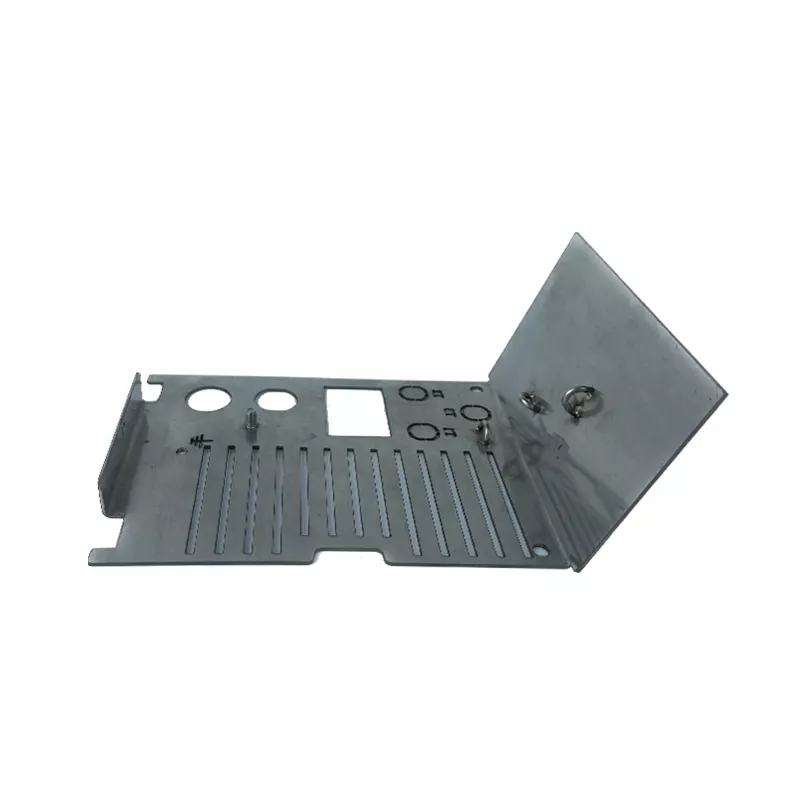

Slots and control openings beside a formed mounting face
The example has a broad slotted face, circular and rectangular cut-outs, projecting fixing details and an upright end region. Define these features on the drawing with the clearance needed for the parts that mount through or against the plate.
For a stainless steel request, specify the grade and sheet thickness. Mark cutting and forming dimensions separately, including the orientation of the upright region relative to the slotted face.
Finish and installed-part requirements
Include quantities, finish and inspection dimensions for device openings, fixing points and bend locations. Existing markings or fasteners in a photograph do not establish a complete supplied control assembly, and shared images do not verify a different panel configuration.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
