Custom Precision Aluminum CNC Machining Parts with Semicircular Stepped Profiles and Fixing Holes
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model Number2012Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc
Semicircular profile with a stepped inner face

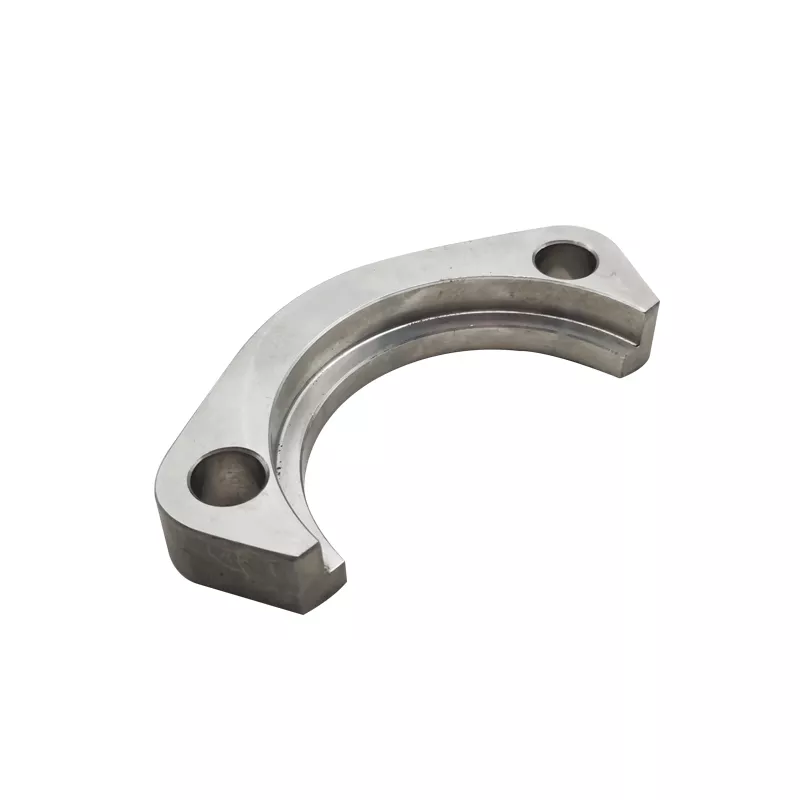

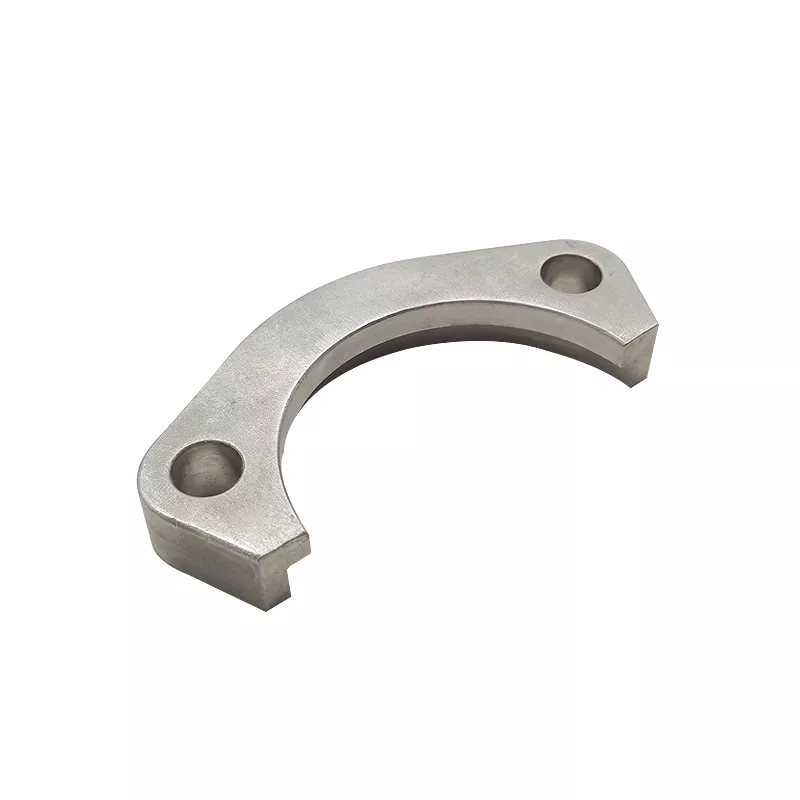

The pictured component follows a semicircular outline and has fixing holes at both ends. A step along the inner curved face is part of the fitted geometry and should be dimensioned together with the outside profile and hole positions.
Specify the inner and outer radii, section thickness, step dimensions and fixing-hole sizes. Identify the reference faces and provide the mating profile where it determines clearance or alignment. Mark the edge condition required around the curved surfaces.
Order documents
Model 2012 lists aluminum alloy, customized sizes and anodized, oxide or powder-coated finishes. PDF, CAD, IGES and STEP formats are listed, with a minimum quantity of 100 pieces. Include alloy selection, finish, drawing revision and inspection requirements for quotation.
