18x64-C Mining Conveyor Chain Side Lock | Zamek Boczny Custom Connector Enquiries

• Model Number

  S240311
  Material

  Iron /Steel /20CrMnTi
• Application

  Mine/Auto/Industry
  Dimensions

  Customer Required
• Surface treatment

  Paint/Powder Coating/Oxidation etc
  Mold making

  By Ourselves
• Service

  OEM ODM
  Quality Control

  Professional Inspection
• Packing

  Individually Packed or as per your requirements
  Process

  Forging+Machining(if Need)+Surface Treatment

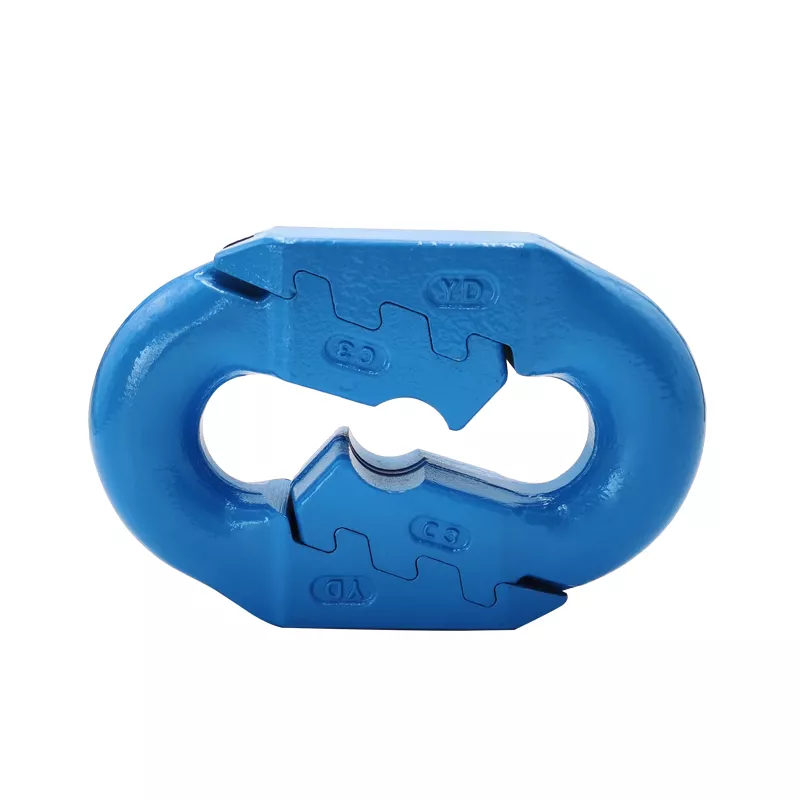

This mining conveyor chain side-lock listing uses 18x64-C as a title reference for a component enquiry. The gallery includes more than one connector shape, including a rounded split link with stepped interlocking joints and an elongated link. Establish the required design and mating chain before selecting a pictured part for an order.

Confirm the side-lock reference against a drawing

Include the 18x64-C reference, drawing revision and equipment assembly in your enquiry. If your part list uses the term zamek boczny, connect that reference to the same drawing. The photographs alone do not confirm that every example is the named size or that a similarly named connector will fit the chain.

Dimension the link section, internal opening, joint faces and retaining features. Identify the correct closure arrangement and associated hardware, together with the available assembly clearance. State any requirements concerning arms or bevels on the drawing rather than relying on the title wording to define finished geometry.

Specify the material and finished interfaces

The general material field lists iron, steel and 20CrMnTi. Select the actual material grade and condition required for the ordered component and agree the relevant documentation. The shared catalogue model S240311 is a reference, not proof of chain class, equipment fit or material condition.

The listed process includes forging, machining if needed and surface treatment. Mark the mating and retaining features that require machining, define their finished dimensions, and select the treatment applicable to the order. Agree inspection criteria for the supplied condition, especially where the closure depends on the fit between separate components.

Set the acceptance requirements before ordering

• Provide the side-lock drawing and mating chain specification.
• Identify closure hardware, joint geometry and assembly clearance.
• Select material, condition, finish and inspection records.
• State operating duty, quantity and any qualification requirements.
• Dimension the selected arm and bevel condition rather than reading size from images.

Capacity, fatigue performance and equipment approval require evidence for the actual design. A model reference or a product photograph does not establish them. Confirm those requirements before accepting the connector for the intended mining conveyor assembly.
