OEM Custom Stainless Steel and Aluminum CNC Turning Milling Parts with Grooved Sleeve Profiles
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes

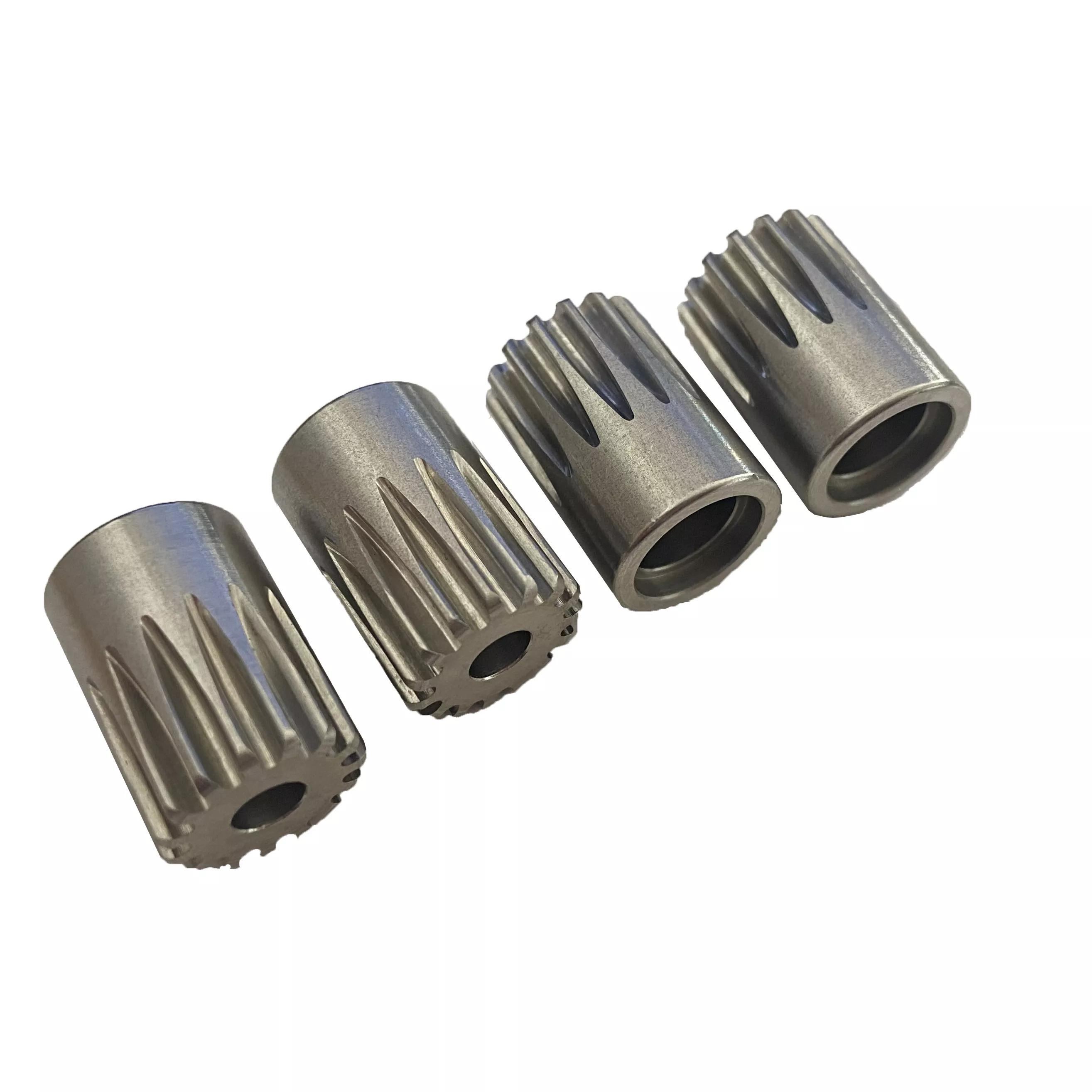

Axial grooves around a bored sleeve
These cylindrical component examples have central bores and repeated grooves along their outer surfaces. The custom drawing should define the groove form, spacing and extent together with the bore, overall length and any stepped end features.
Identify the fitted diameter and the references used to check the groove pattern. Include a mating profile where it determines engagement or alignment, and mark any edge requirements at the groove ends.
Material selection and quotation
Stainless steel and aluminum are among the listed machining capabilities. Select the required grade for the ordered sleeve and specify its turning, milling and finishing scope. PDF, CAD, IGES and STEP formats are listed. Send quantities, revision and inspection requirements, including fitted surfaces needing protection during finishing.
