Custom Precision Aluminum CNC Milling Parts with Square Profiles Stepped Bores and Anodizing
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Turning, Wire EDM, Rapid Prototyping
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetalProcessCNC Machining
-
Product nameCustom Machining PartsServiceCNC Turning and Milling
-
EquipmentCNC CenterSurface FinishingAnodizing, Powder Costing, Plating
-
MaterialALuminum/ Steel / BrassDrawing Format2D/(PDF/CAD)3D(IGES/STEP)
-
Tolerance0.1KeywordCNC Machining Parts
-
OEM/ODMYes
Square outside, stepped bore inside

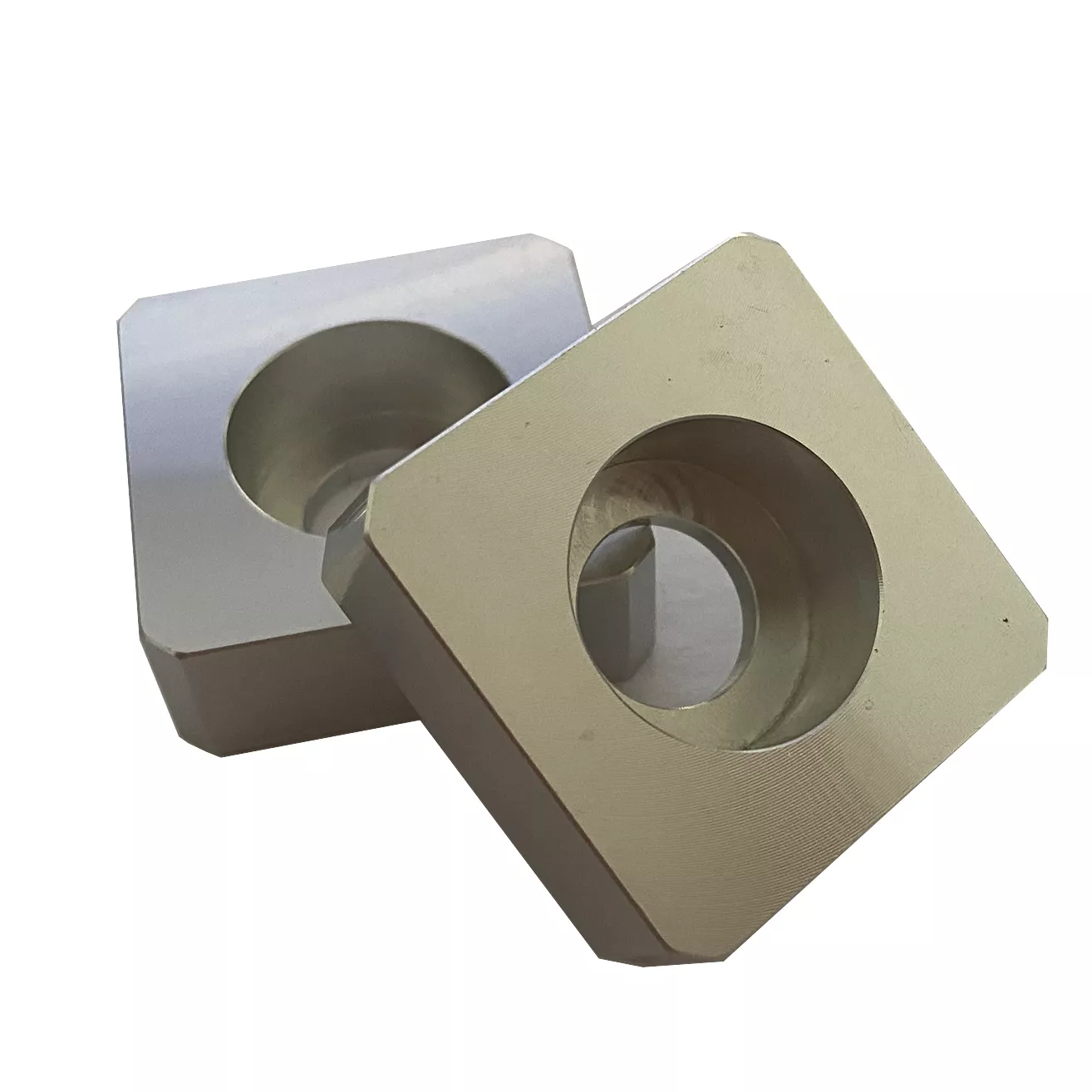

The main examples have square outer profiles with chamfered corners and stepped circular center openings. The custom drawing should relate the central bore to the outside faces and define the depth of each internal step.
Specify overall width and thickness, bore diameters, shoulder positions and the references used to check their alignment. Identify any fitted outer faces and mark the edges requiring deburring.
Machining and finished surfaces
Aluminum is among the listed materials for CNC milling and turning. State the alloy and anodized finish requirement, including masking around fitted bores. For a parts-set enquiry, provide the drawing and quantity for every item. PDF, CAD, IGES and STEP formats are listed. Include revision and inspection requirements for quotation of the selected component.
