Custom CNC Milling Turning Stainless Steel Fittings and Sheet Metal Part Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model Number2012Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc
Threads, hexagonal faces and internal openings

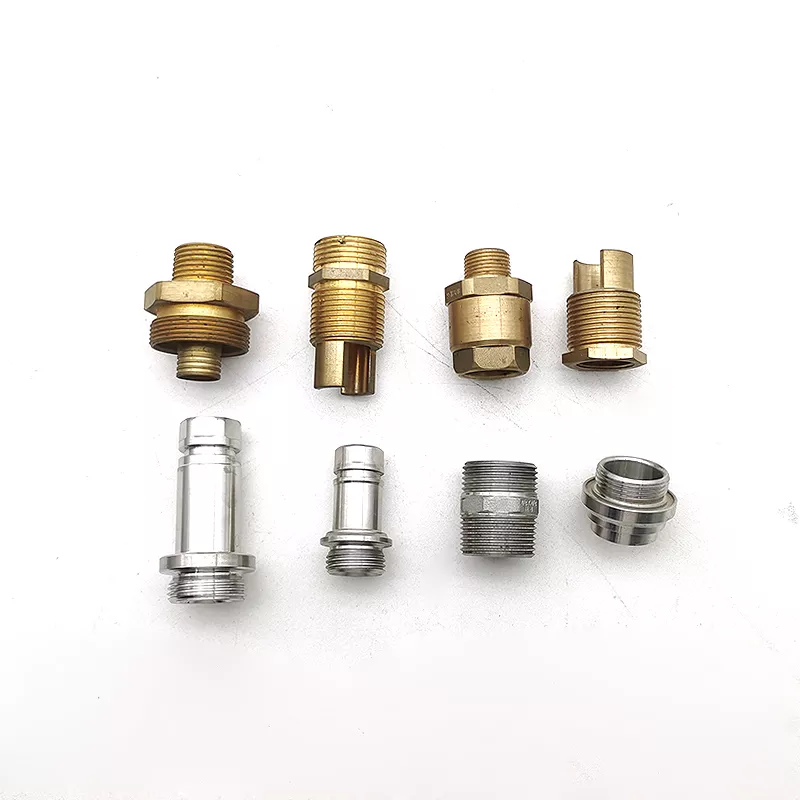

The example range shows threaded fitting forms with cylindrical and hexagonal features. Define each thread and bore from the fitting axis, then dimension the flats and any radial holes used for fastening or connection.
For a stainless steel or another metal requirement, specify the grade and required turning and milling operations. If the project includes sheet metal parts, provide separate drawings and thicknesses for those components.
Connection details for review
Include mating threads, finish and quantities. State the dimensional inspection and operating requirements for the actual assembly; the photographs do not define a pressure rating.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
