Precision Stainless Steel CNC Machining | Custom Laser Drilling Milling Flanged Bore Components

• CNC Machining or Not

  CNC Machining
  Type

  Broaching, Drilling, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, drilling, laser processing, milling, turning
• Material Capabilities

  Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel
  Micro Machining or Not

  Micro Machining
• Is it micro-machined?

  micromachining
  surface treatment

  Anodizing, polishing
• Material

  aluminum/alloy/zinc/brass/copper
  Drawing format

  2D/(PDF/CAD)3D(IGES/STEP)
• filler

  Poly bag + inner box + carton
  Delivery time

  7-15 Davs
• Minimum order quantity

  one item
  OEM/ODM

  Add
• equipment

  Three-axis, four-axis, and five-axis machining center

Specify the short flanged component using a common reference for the central bore, fixing holes and side thread.

Coordinate the flange, bore and side thread

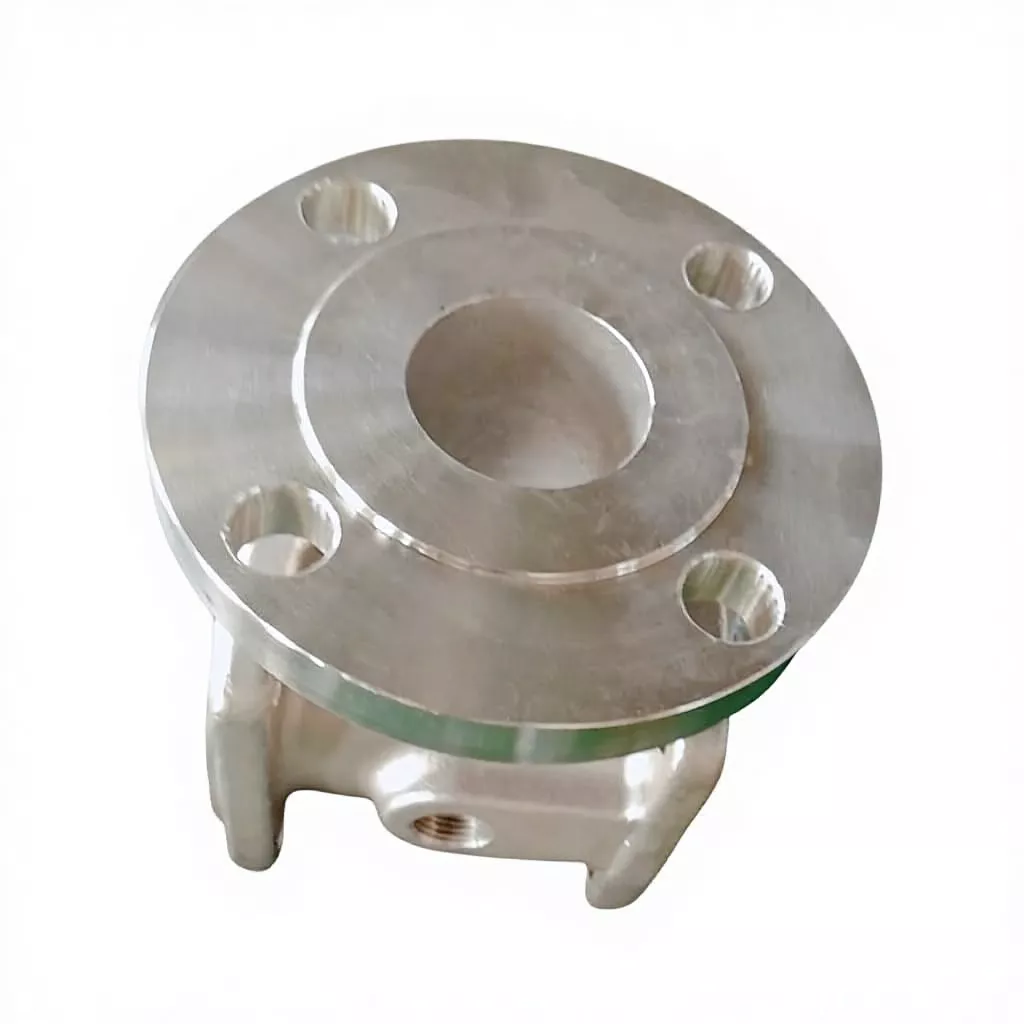

The illustrated short body has a four-hole flange, central bore and side threaded opening. Use these features to define the component, without inferring a flange standard or pressure rating from its outline.

Provide the machining references

• Set the bore axis and required diameter limits.
• Reference flange face and fixing-hole positions.
• Identify the side-thread standard and location.
• Select stainless grade and suitable blank condition.
• Attach PDF/CAD or IGES/STEP component geometry.

Drilling, milling and laser processing require assignment to actual drawing features. Separate stock allowance from finished surfaces, and agree the measurement method for fitted interfaces.

Confirm finish and service requirements

Choose an alloy-compatible treatment and state quantities, delivery and documentary acceptance. Any sealing or pressure duty requires separate application evidence; the photograph shows geometry rather than verified operating capability.

Discover our Precision Stainless Steel CNC Machining Services, offering advanced laser drilling, milling, broaching, and custom components tailored to your needs. We specialize in multi-axis CNC machining, delivering high-quality solutions for various industries including automotive, aerospace, electronics, and medical equipment.

Our manufacturing capabilities cover a wide range of materials such as aluminum, brass, bronze, copper, hardened metals, precious metals, and stainless steel. With micro-machining technology and state-of-the-art three-axis, four-axis, and five-axis machining centers, we ensure exceptional accuracy and fine surface finishes.

Each component can be customized to your unique specifications, supporting 2D and 3D drawing formats like PDF, CAD, IGES, and STEP. Surface treatment options include anodizing and polishing for enhanced durability and appearance. We offer flexible order quantities, fast production times (7-15 days), and safe packaging with poly bags, inner boxes, and cartons.

OEM and ODM services are available, making us your trusted partner for industrial precision parts. Experience seamless production and efficient delivery from our factory in China.
