Custom Precision Aluminum Motorcycle CNC Milling Spare Parts with Slotted Mounting Plates
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200449Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.02mmToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

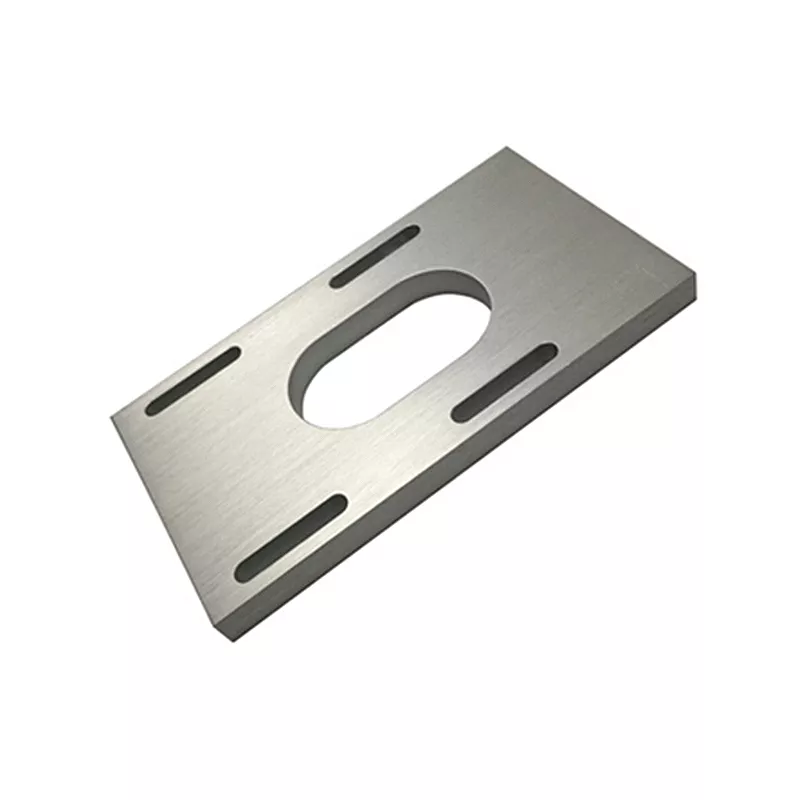

This CNC milling example is a rectangular aluminum plate with a large central opening and four elongated fixing slots. For a custom motorcycle spare-part enquiry, the finished drawing should relate the opening and slots to the actual assembly and fastening arrangement.
Plate layout and machined edges
Specify the plate thickness, outline, central opening and slot widths and lengths. Locate these features from clear datums, then identify contact faces and edges requiring deburring. Supply mating-part information wherever it determines clearance or fitted position.
The listed material for Dmetal-200449 is aluminum alloy, with customized sizes and a 100-piece minimum order. Anodized, oxide and powder-coated finishes can be reviewed for the required appearance and fitted dimensions. PDF, CAD, IGES and STEP drawing formats are supported. Include quantity, revision and feature-level tolerances so the machining and inspection requirements refer to the same part.
