Custom Sheet Metal Fabrication Components | Three-Opening Bent Panels

• Model Number

  S24008 2407R
  Material Capabilities

  Steel/Aluminum/copper/Stainless Steel 316/brass
• Application

  Machinery/Industry/Home/Automotive
  Equipment

  CNC Bending/Stamping Machine/Laser Marking
• Process

  Cutting Bending Stamping Welding
  Surface treatment

  Painting\Powder Coating\Plating\Polishing
• Drawing format

  2D/3D/CAD/DWG//STEP/PDF/IGS
  Certificate

  ISO9001/TS16949
• Keyword

  Sheet Metal Fabricating Parts

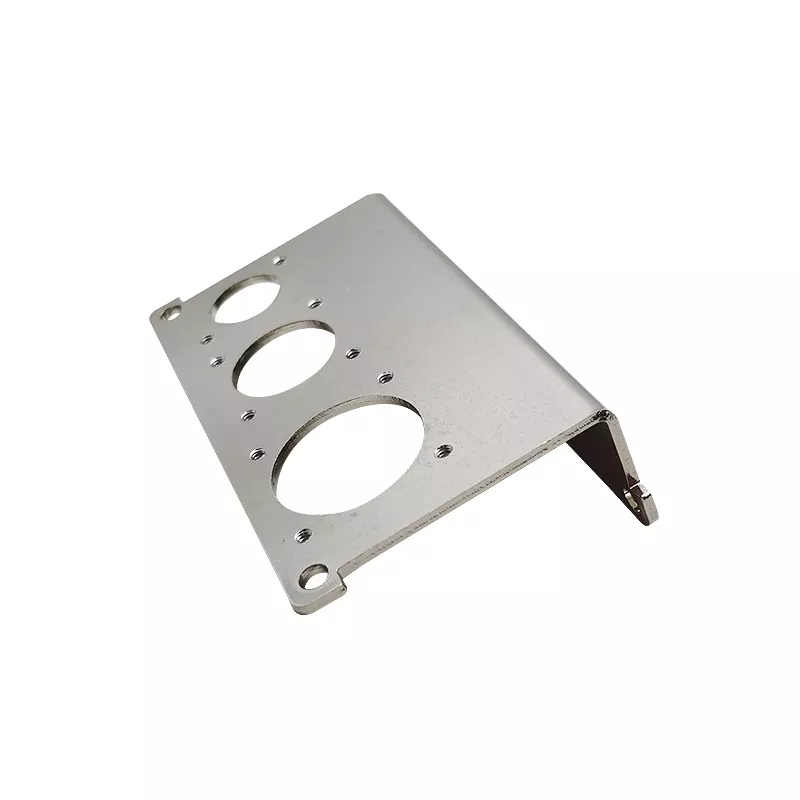

Define the panel through its three circular openings, smaller fixing holes and bent edge region. The light example shows openings of differing sizes across a sheet-like face. Those details provide geometry context, but do not establish a control function, actual alloy, thickness or a completed equipment assembly.

Locate the circular openings from the fixing datums

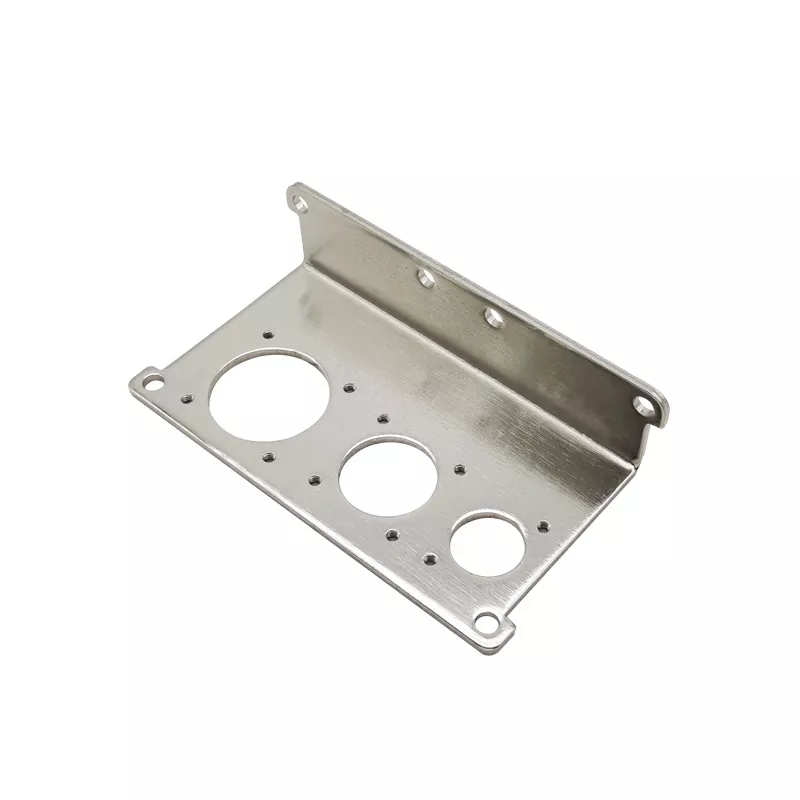

Provide flat and formed drawings with actual mating-component geometry. Reference each opening and fixing hole to the datums used by the installation. Specify edge conditions, contact faces and any inserts or fasteners included in the delivery rather than assuming that a perforated panel contains instruments or controls.

Select the metal and required fabrication operations

Steel, aluminum, copper, stainless steel and brass are separate material directions. State the actual grade, condition and thickness for the chosen component. Define cutting, bending, stamping and any welding only where required by the controlled design, with joining details and acceptance identified separately.

• Reference the three-opening panel and drawing revision.
• Specify exact metal grade and sheet thickness.
• Dimension circular openings, holes and bent contacts.
• Define fabrication, any joining and selected treatment.
• Agree dimensional checks and intended-use evidence.

Inspect the finished panel against its assembly

Choose compatible paint, powder coating, plating or polishing where needed, with masking and final measurement conditions at working interfaces. Actual load, electrical, environmental or automotive requirements need service conditions and applicable tests; the opening pattern does not establish qualification.

Provide the three-opening panel's CAD, DWG, STEP, PDF or IGS drawings, quantities and material or inspection documentation. Define any separately requested instruments, hardware or assembly work independently of the fabricated panel.
