OEM Sheet Metal Fabrication Slotted Rail Bracket | Custom Stamping & Bending Parts
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberS2412Material CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessLaser Cutting Bending StampingKeywordSheet metal fabricating part
-
Surface treatmentPainting\Powder Coating\Plating\PolishingDrawing format2D/3D/CAD/DWG//STEP/PDF/IGS
-
CertificateISO9001/TS16949LogoAccept Customized Logo
-
TechnologyStamping+drilling+assembly

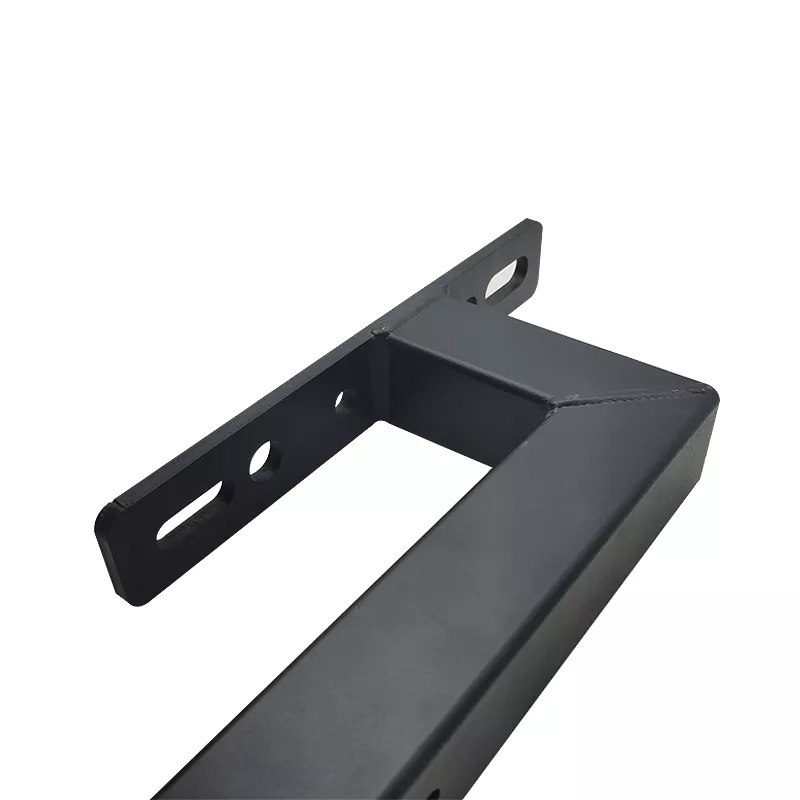

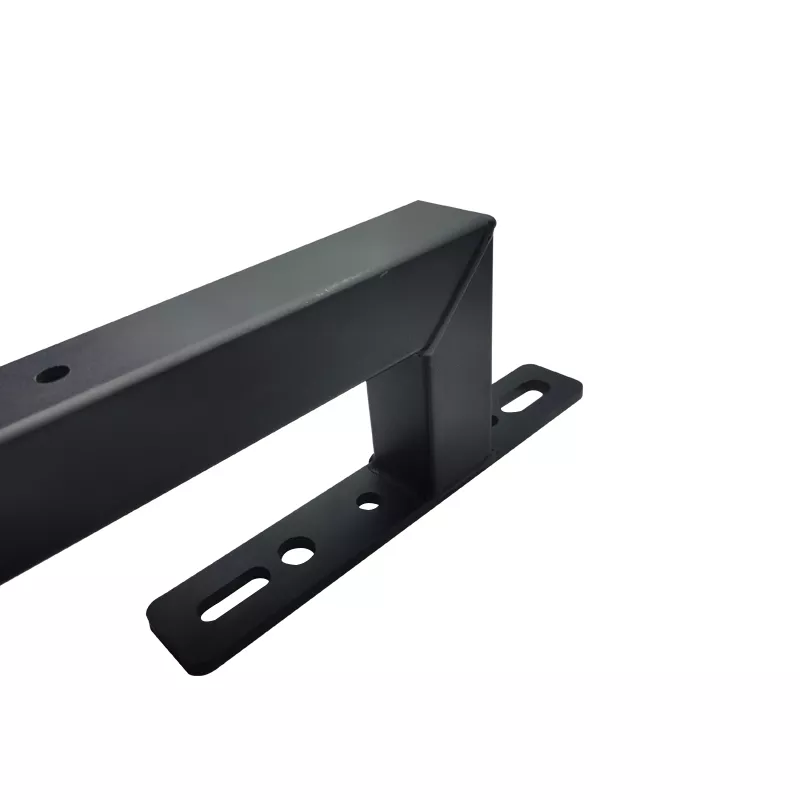

Folded rail with an open side
The retained example has a long upper face, an open region beneath it and a lower mounting foot with circular and elongated openings. Specify the complete section, fixing positions and clearances to the mating assembly on the drawing.
OEM fabrication specification
Select a material grade and thickness, then identify cutting, bending, stamping and any assembly operations required. The broad material-capability list does not establish which alloy was used for this bracket. Define coating and masking independently of the dark appearance.
Include quantities, drawing revision and inspection criteria for bend geometry and mounting alignment. Shared catalogue photographs do not prove a separate model, and generic certificate entries require applicable evidence.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
