20CrMnTi Mining Chain Connector | Custom Forging and Shackle Enquiries

• Model Number

  S240311
  Material

  Iron /Steel /20CrMnTi
• Application

  Mine/Auto/Industry
  Dimensions

  Customer Required
• Surface treatment

  Paint/Powder Coating/Oxidation etc
  Mold making

  By Ourselves
• Service

  OEM ODM
  Quality Control

  Professional Inspection
• Packing

  Individually Packed or as per your requirements
  Process

  Forging+Machining(if Need)+Surface Treatment

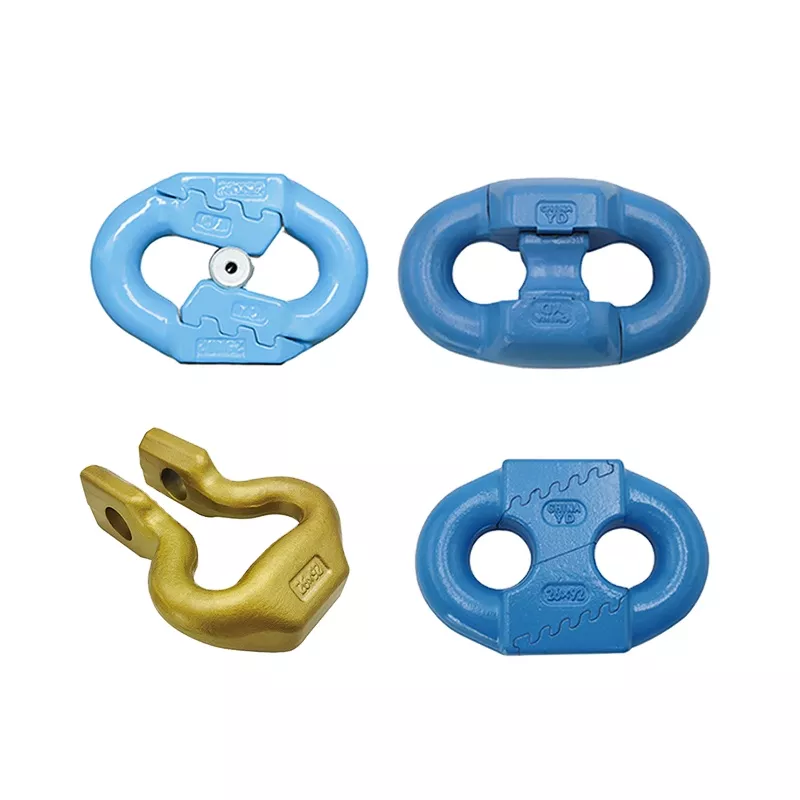

This mining chain connector listing supports custom forging and shackle enquiries where the connector must match a defined chain assembly. The illustrations show a split connection joining two chain ends, while the photographs include several closure forms. Select the required geometry before treating any image as the specification for the ordered part.

Select the connector and material

Use S240311 as a catalogue reference alongside the drawing revision and the exact pictured design you need. The material field lists iron, steel and 20CrMnTi. For a 20CrMnTi mining chain connector enquiry, identify that grade explicitly and agree its required condition and supporting documentation; the mixed material field does not establish that every example uses the same alloy.

The listed process covers forging, machining if needed, and surface treatment. Mark the mating faces, holes and closure features that require finished dimensions. State the selected finish and where it must be applied, including any surfaces whose final dimensions or movement depend on the treatment.

Define chain fit and operating duty

Provide the mating chain specification, link geometry and available assembly clearance. Identify the required closure and any associated pin or locking components, including whether they are within the requested supply scope. A joining illustration can communicate the arrangement, but it cannot establish the correct installation method for a particular mine or conveyor.

Specify the operating duty and the evidence needed to accept the connector. The description heavy duty is not a working-load rating. Where capacity, fatigue behavior or safety approval affects selection, require evidence applicable to the actual design, material condition and intended equipment before accepting the part for service.

Prepare a defined component enquiry

• Provide the connector drawing, chain interface and required quantity.
• Select the steel grade, material condition and documentation.
• Identify closure components, machining and finished interfaces.
• Define finish, inspection criteria and operating-duty requirements.
• Identify closure movement, mating clearances and finished dimensions to be inspected.

Confirm the finished component scope and acceptance criteria with the enquiry. A defined chain interface and selected material make this a useful custom connector request without assuming that all pictured shackles are interchangeable.
