Custom Aluminum Extruded Housings with CNC Machining | 2024 6061 6063 Alloy Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial / Medical etc...Shapeflat
-
Alloy Or NotIs AlloyModel NumberS 2401
-
Tolerance±0.02mmProcessing ServiceBending, Decoiling, Welding, Punching, Cutting, cnc machining
-
Delivery Time15-21 daysProduct materialAlumium 6061 6063 or as your requirements
-
SizeCustomizedSurface treatmentAnodized/oxide etc /powder coated / painting
-
ToolingMade by ourselfPackingCarton box + Wood case
-
ProcessExtruding +CNC Machining + Surface Treatment + 100% QCCertificationISO9001-2008
-
MachiningAvailable

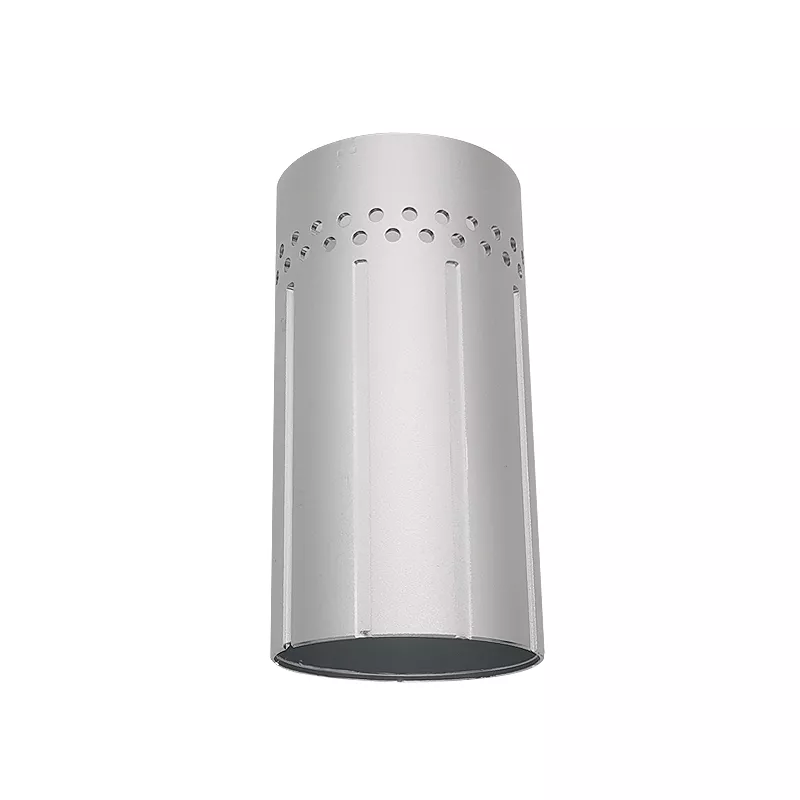

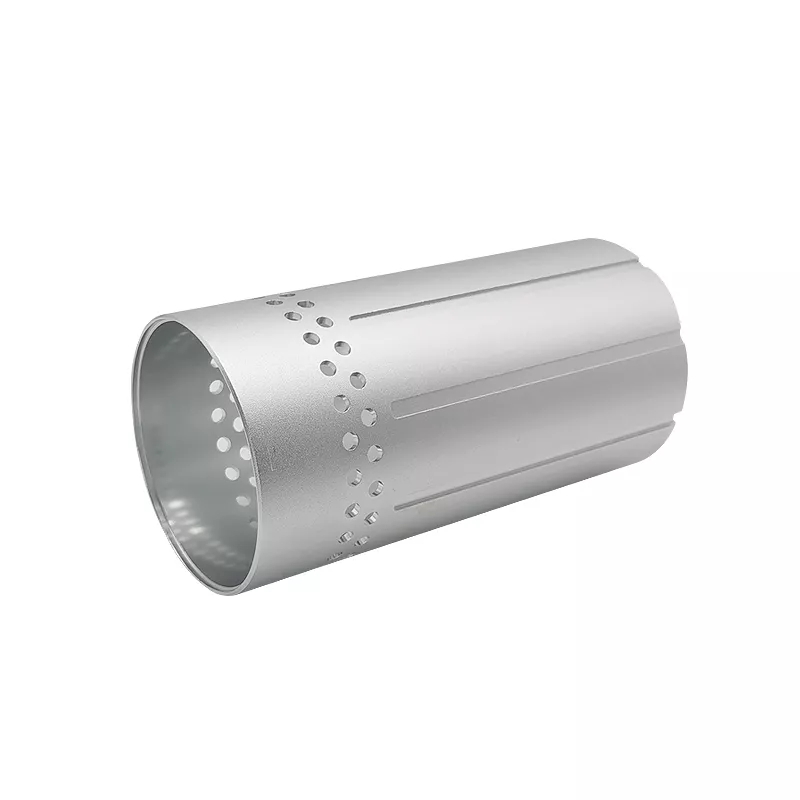

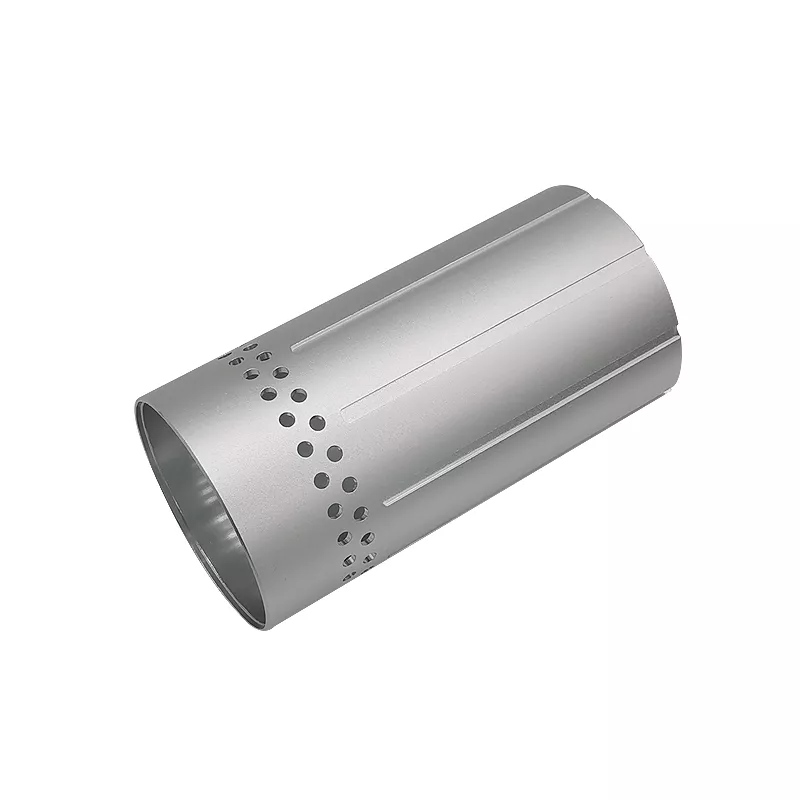

Longitudinal slots and a ring of holes on a tubular housing
The example is a hollow cylindrical body with long external features and a group of small openings near one end. Define the bore axis, overall length and hole pattern together, including any regions that connect to a cover or adjacent housing.
Identify the alloy explicitly
The title reference to 2024 does not establish an actual alloy grade, while the material parameters list 6061 and 6063. If 2024 alloy is required, state it separately for review with the temper and acceptance specification.
Mark CNC-machined holes, slots and contact faces on the drawing. Include quantities, finish and inspection requirements at the bore and end interfaces. The photograph does not verify pressure capacity, a particular alloy or an installed enclosure rating.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
