Custom 3 4 Axis Aluminum CNC Turning and Milling Parts from 3D Drawings with Cross Holes
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model Number2012Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

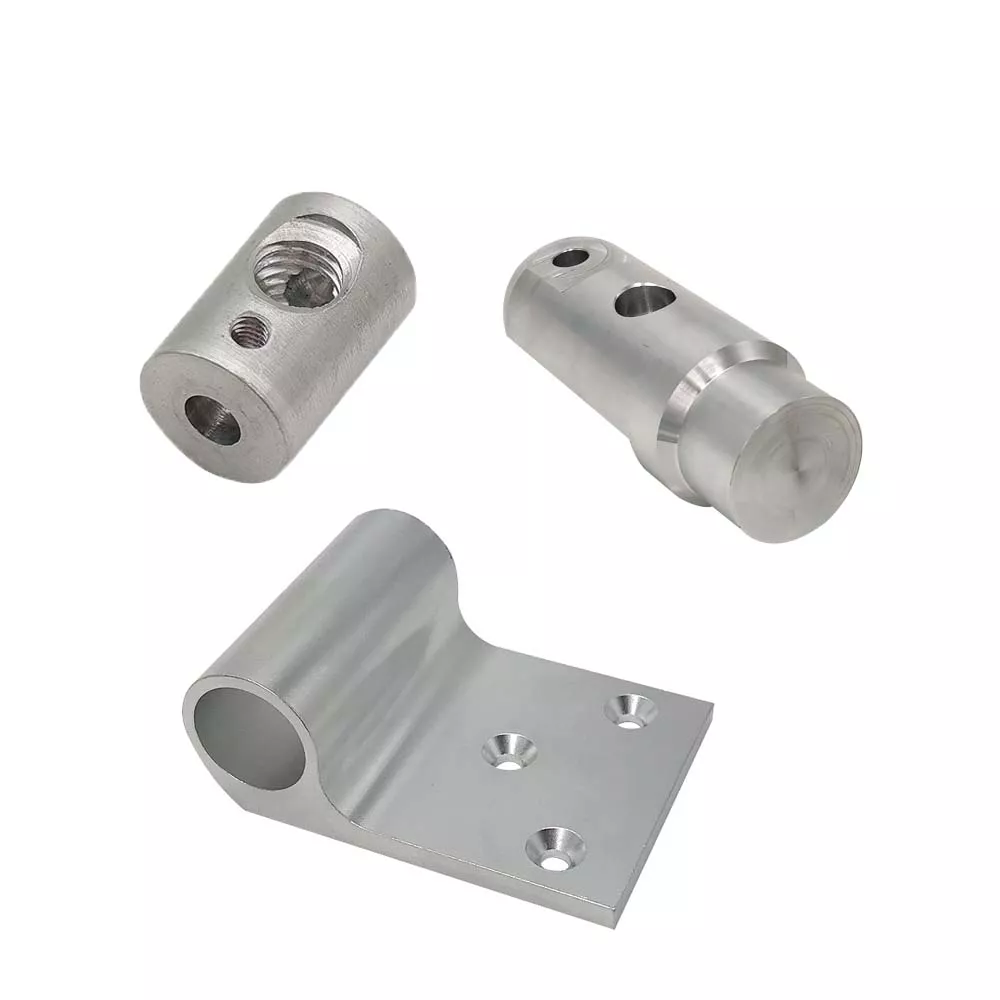

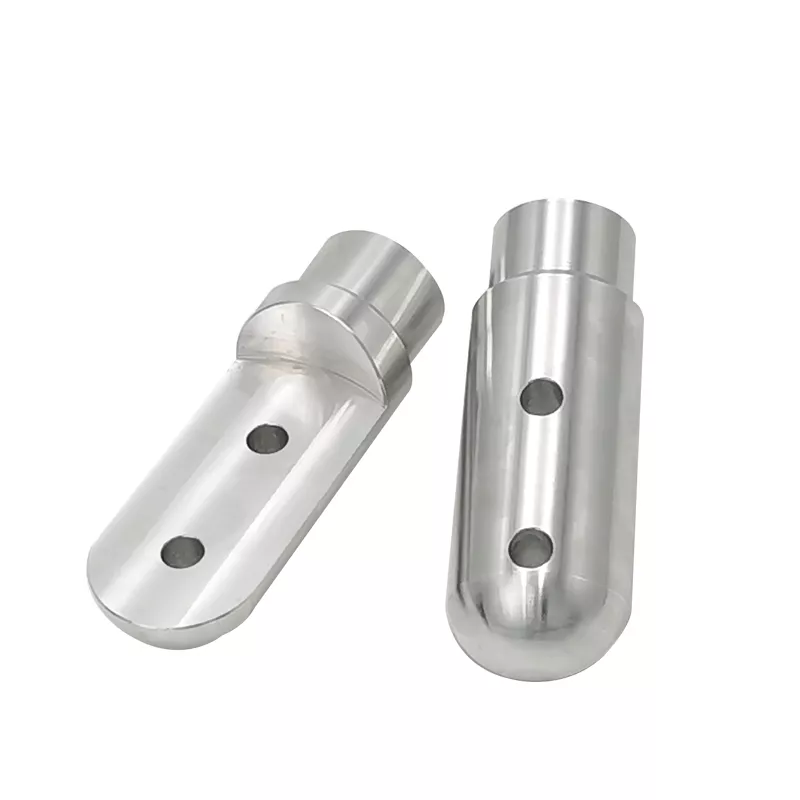

The component examples combine turned cylinders and shoulders with cross holes, threaded openings and a barrel-style mounting leaf. For a custom 3 or 4 axis machining enquiry, identify the required item and supply its complete 3D geometry with a dimensioned drawing.
References across turned and drilled features
Specify the axial dimensions, bore and shoulder sizes, then locate cross holes and threads from these references. For a mounting leaf, define the fixing pattern and its relationship to the barrel. Mark the features that control the assembled fit.
Model 2012 lists aluminum alloy, customized sizes and anodized, oxide or powder-coated finishes. PDF, CAD, IGES and STEP formats are listed, with a minimum order of 100 pieces. Include quantities per item, revision and finish requirements for quotation.
