Custom CNC Milling Turning Metal Parts and 3D Printing Prototype Service Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model Number2012Product namecustom cnc machined parts
-
Surface treatmentSmoothCertificationISO9001:2008
-
MaterialAluminum AlloySurface finishAnodized/oxide etc /powder coated
-
SizeCustomized SizeToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zinc

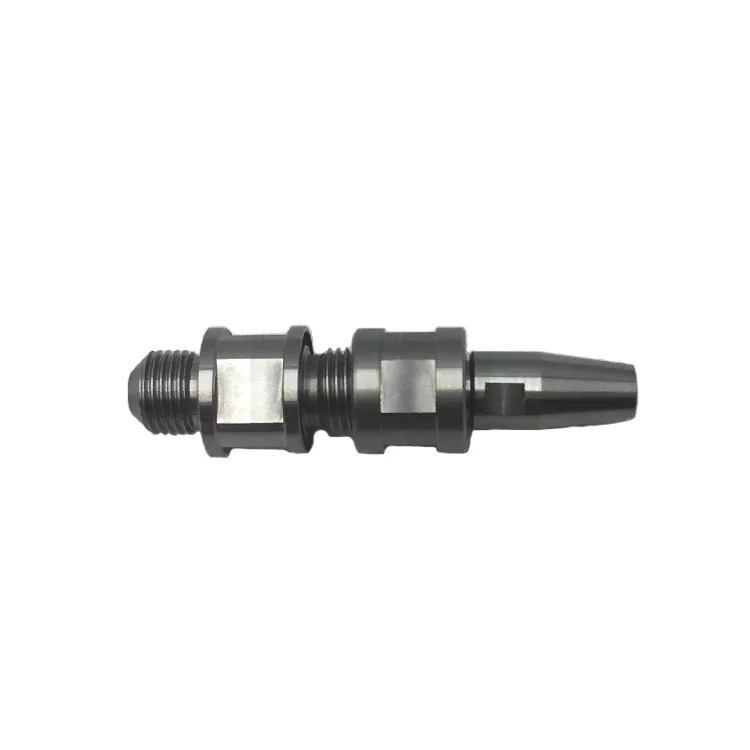

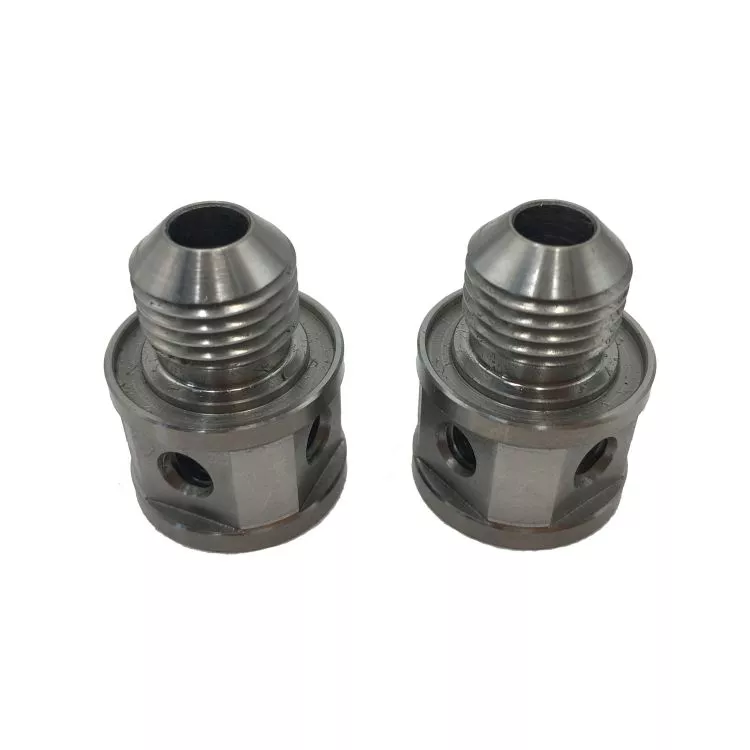

Conical ends above a threaded body

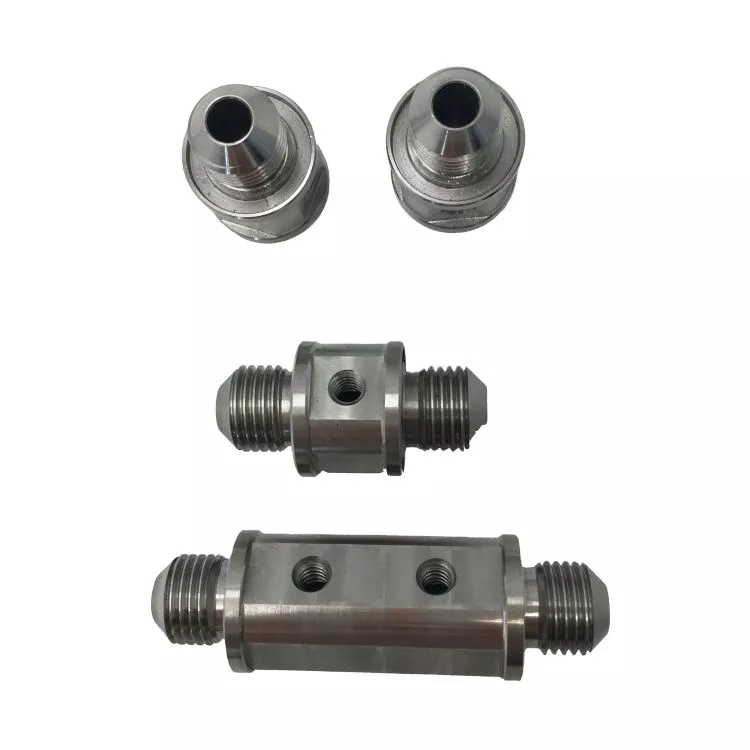

The illustrated components have open centers, stepped conical ends, external threads and side holes. Define the bore and cone geometry from the center axis, including the thread form and location of secondary features.
Specify the required production stage
For CNC turning and milling, identify the alloy and finished dimensions. If a 3D-printed prototype is requested, state its material and evaluation purpose separately from the requirements for the machined component.
Provide the CAD model, drawing revision and quantities. Include mating interfaces, finish and inspection criteria for the threads, bore and tapered end.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
