Custom 6061 6063 Aluminum Extrusion Housing Profiles with CNC Machined Openings
-
Grade6000 SeriesTemperT3-T8
-
ApplicationindustrialShapeAngle
-
Alloy Or NotIs AlloyModel NumberS S1022
-
Tolerance0.02mm, ±0.02Processing ServiceBending, Decoiling, Welding, Punching, Cutting, Machining
-
Delivery Time15 daysProduct nameCustom CNC Machining Aluminum Extrusion Profiles
-
Material6063/ 6061 etcMachiningAvailable
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
Surface ColorCustomized Panton Colors

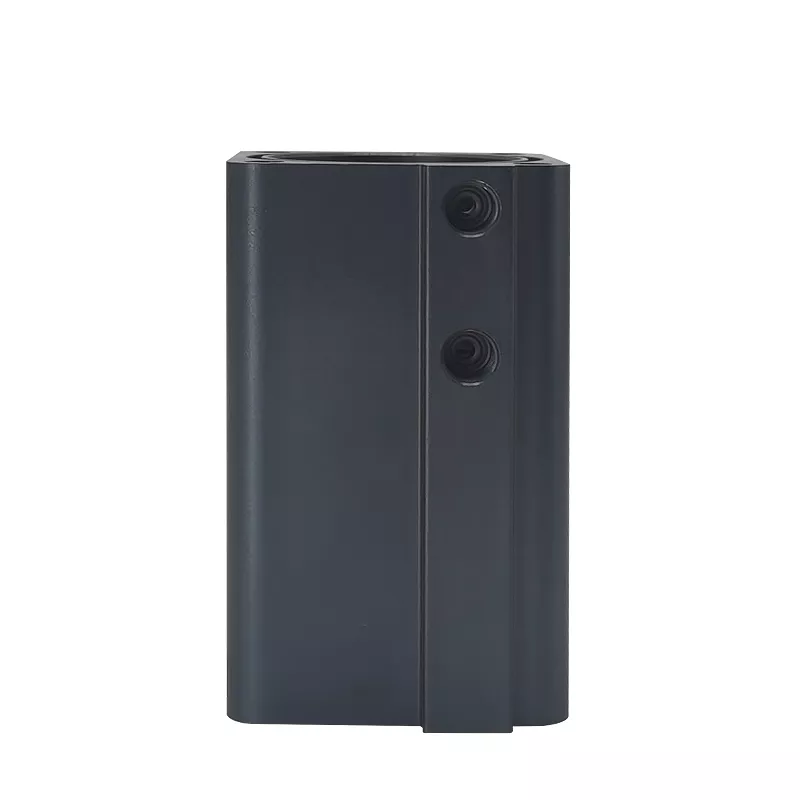

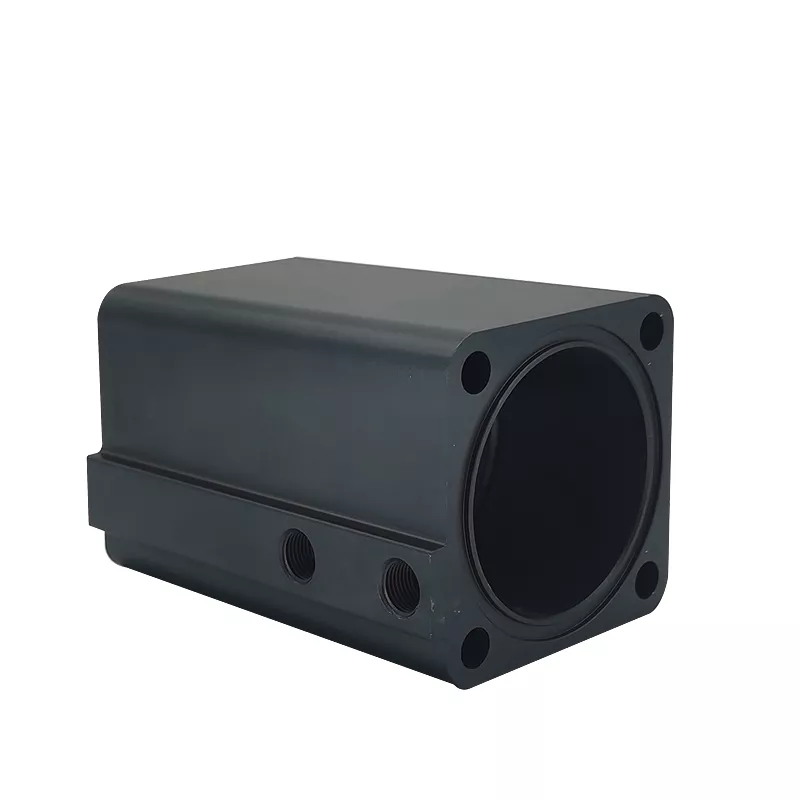

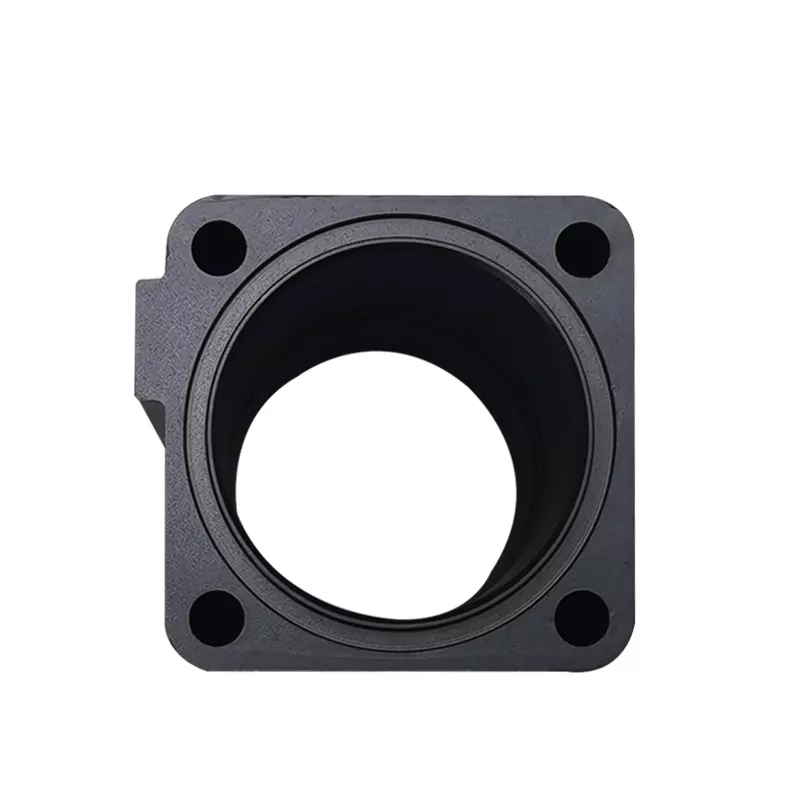

The illustrated housing-shaped component has a large circular end opening, corner holes and smaller side openings. This custom aluminum extrusion profile enquiry combines the continuous section with CNC-machined interfaces, which should be defined on the finished part drawing.
Control the end and side interfaces
- Show the central opening and outer envelope with the required finished length.
- Locate corner holes and side openings from the faces that determine assembly fit.
- Specify threads, internal steps or other machined details only where required by the drawing.
6061 and 6063 aluminum are material options for review. Identify the selected alloy and temper, along with the dimensions needing inspection after machining and finishing. The photograph does not establish a pressure rating, seal specification or compatibility with a particular mechanism.
Quote the supplied condition
Anodized, oxide and powder-coated finishes are listed options. Provide color, surface condition and any masking instructions at fitted openings. Send the drawing revision, quantities and relevant mating-part information so manufacturing scope and dimensional acceptance can be agreed for the actual ordered component.
