Custom 6063 T5 Aluminum Extrusion Profile Radiator | LED Heatsink Enquiries

• Grade

  6000 Series
  Temper

  T3-T8
• Application

  Heat Sink, Industrial Equipment
  Shape

  Square
• Alloy Or Not

  Is Alloy
  Model Number

  Dmetal-200328
• Tolerance

  ±1%
  Processing Service

  Bending, Decoiling, Punching, Cutting
• Delivery Time

  22-30 days
  Product material

  6063 Aluminum
• Color

  Black Metal
  Size

  Customized
• Surface treatment

  Anodized/oxide etc /powder coated
  Tooling

  Made by ourself
• Packing

  Carton
  Process

  Sand casting +CNC Machining
• Certification

  ISO9001-2008
  Machining

  Available

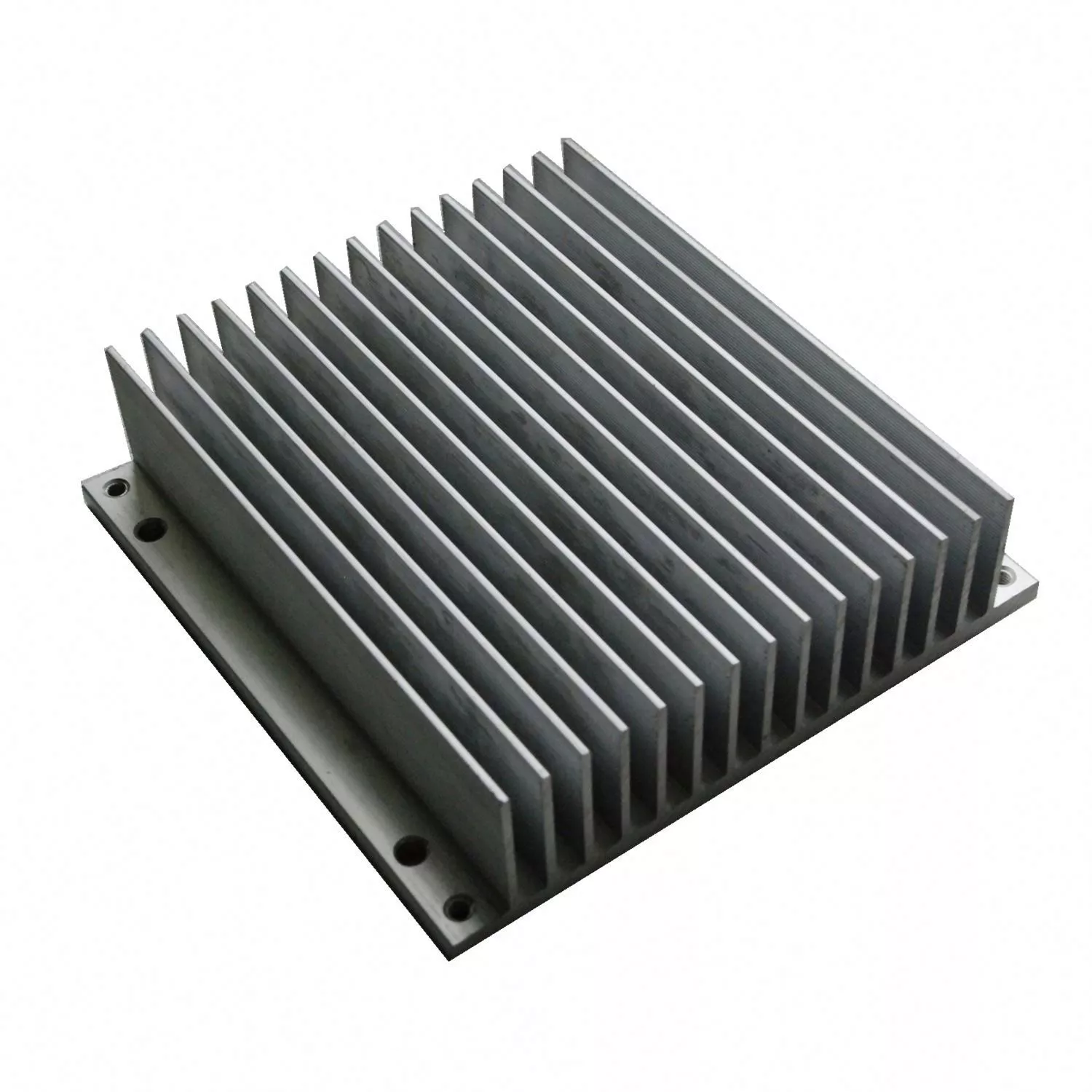

The illustrated finned component has a rectangular base, parallel tall fins and projecting side ledges with circular fixing holes. Use these interfaces to define a custom aluminum extrusion radiator or LED heat-sink enquiry. A requested 6063-T5 condition and a general square-shape field still need to be matched to the actual drawing.

Locate the ledges and fixing holes

Provide the base size, cut length and mounting pattern, locating the holes from the assembly datums. Identify the thermal contact face and the surfaces that support or secure the part. Dimension the fin field and installation envelope where they control fit, access or clearance to neighbouring components.

State which openings and contact surfaces need secondary machining. Include the mating assembly or a section view if it explains how the mounting ledges are used. The photograph does not establish a universal LED mounting pattern, a fixed part size or measured thermal performance.

Select the material and finished requirements

• Specify the actual alloy and temper, including 6063-T5 if required.
• Provide the controlled profile and mounting drawing.
• Mark hole positions and finished contact-face dimensions.
• Choose the finish and identify any masking or fit protection.
• Define inspection in the condition of the delivered part.

The broad T3-T8 and ±1% references are not a complete order specification. Assign limits to the relevant features with units and measurement criteria. Agree the intended profile-manufacturing and CNC scope for the selected design instead of automatically using the historical general sand-casting sequence.
