Custom ABS PA66 PP PC or TPU Injection Molded Plastic Mounting Plates with Hexagonal Opening and Assembly Service
-
Model NumberS2415601Plastic Modling TypeInjection
-
Processing ServiceMouldingColorPanton color
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)Surface finishTexture or Polish
-
MaterialABS/PA66/PP/PC/TPUProcessMold+Injection + Assembly + Packaging
-
Product nameCustom Plastic Injection Molding Parts

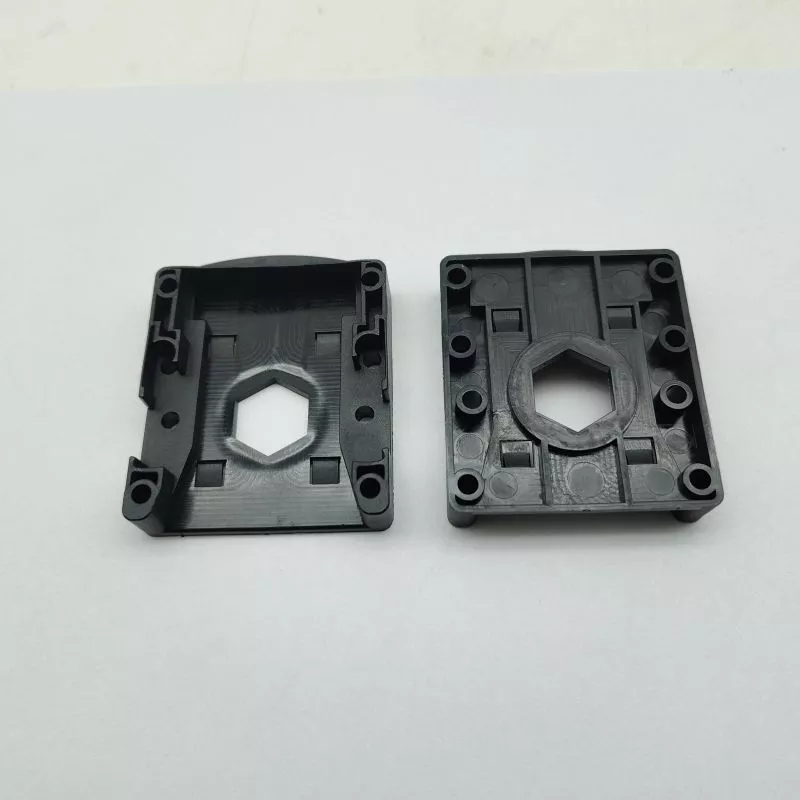

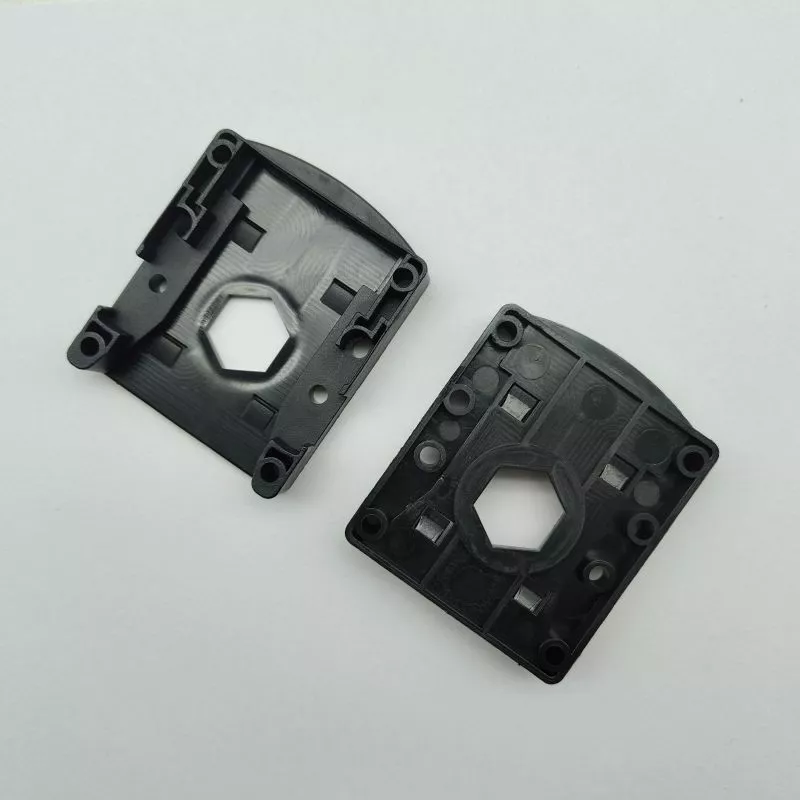

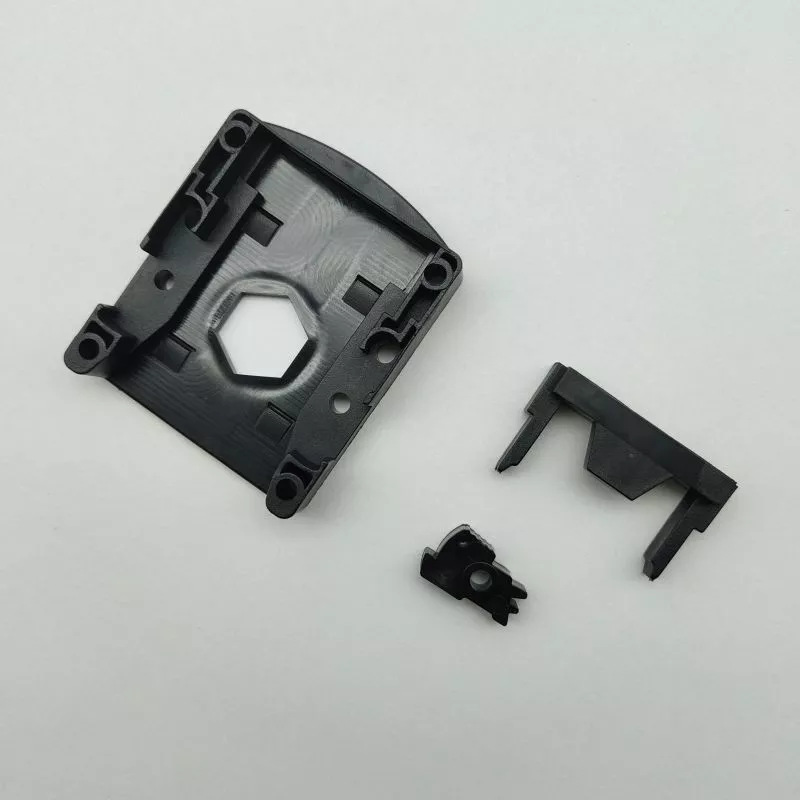

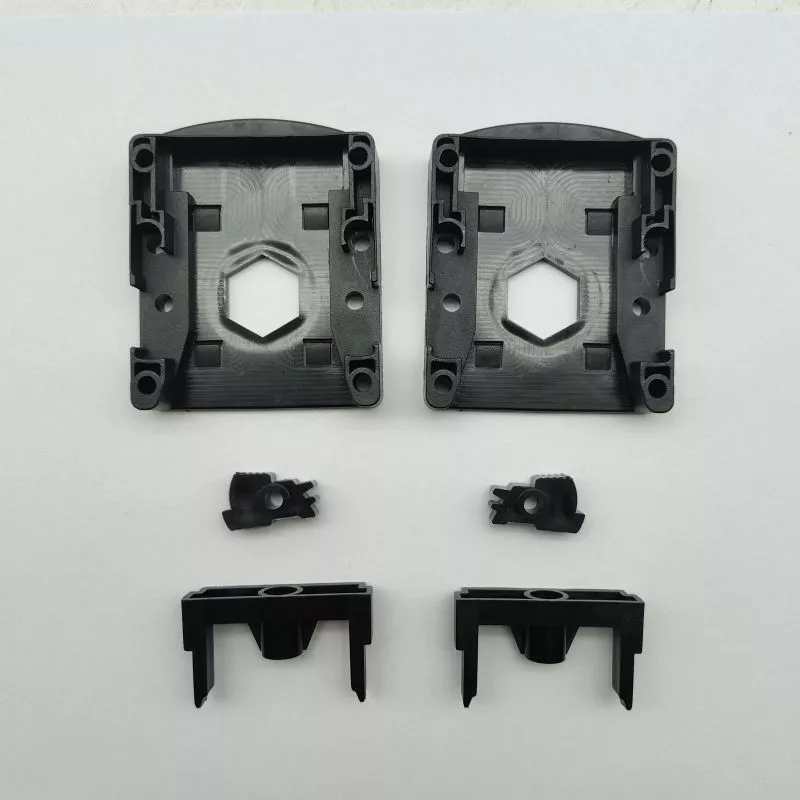

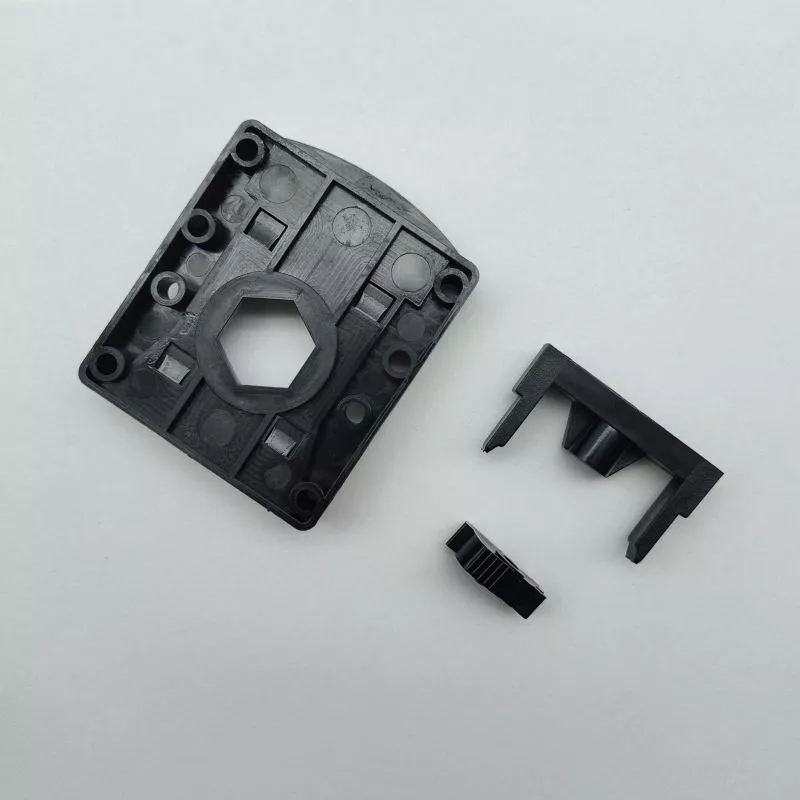

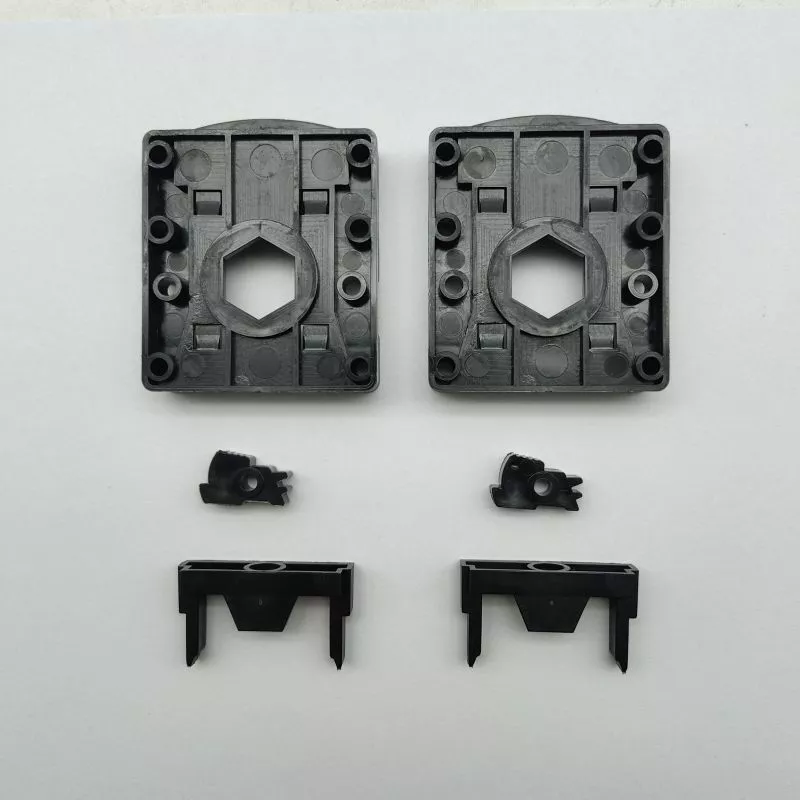

S2415601 custom plastic manufacturing enquiries include the illustrated rectangular mounting plates with a central hexagonal opening, internal ribs and raised bosses. Smaller companion pieces are also pictured. The listed process covers molding, injection, assembly and packaging, with the ordered component set defined in the proposal.
Define the hexagonal interface
Provide the required opening dimensions and its position relative to the plate's mounting features. Show the mating profile and the internal supports that locate connected parts. Identify which smaller pieces belong to the assembly and provide their drawings or part references.
ABS, PA66, PP, PC and TPU are listed material choices. Select the resin grade for each ordered piece, the required color reference and either texture or polished surface requirements. Different material options do not establish that every illustrated part uses the same resin.
Agree the assembly deliverable
Supply 2D drawings and 3D files where available, including revision, quantities and assembly instructions. Specify whether the requirement is for separate molded pieces or an assembled component set. Agree inspection of the hexagonal opening and mounting interfaces, together with packaging protection for projecting features.
