Model NumberS2301Plastic Modling TypeInjection
-
Processing ServiceMoulding, Cutting, PaintingColorCustomized
-
SizeCustomized SizeMaterialPA66/PP/ABS /PC, Etc
-
CertificationROHSFeatureHigh Precision
-
ShapeCustomized ShapesPackingStandard Carton Box
-
ServicePrompt DeliverySurface finishMatt Surface
-
PackagePP Bag

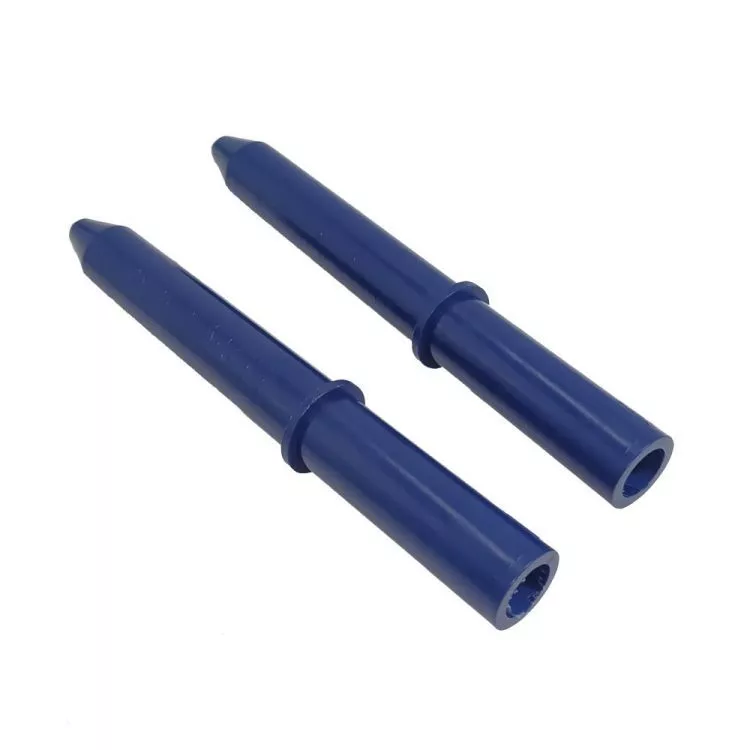

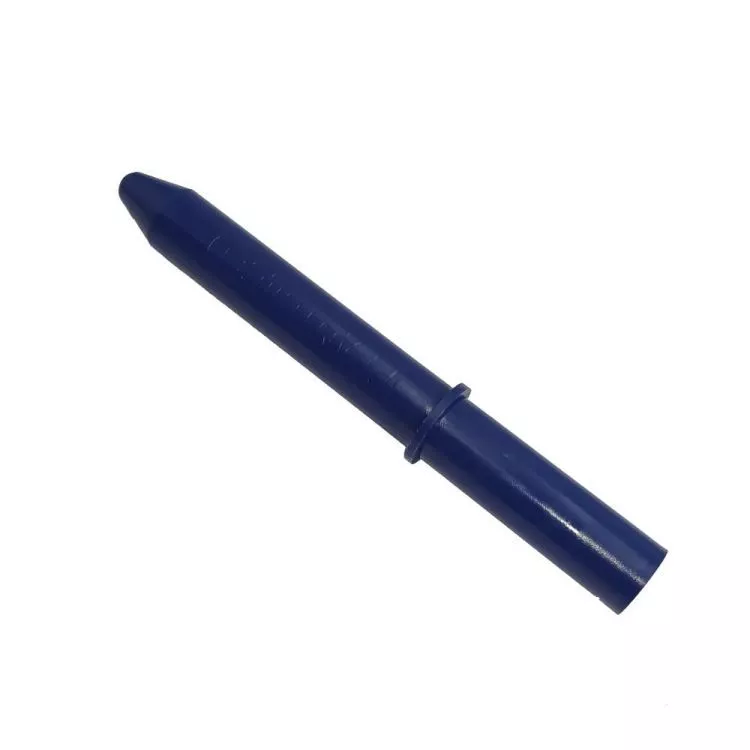

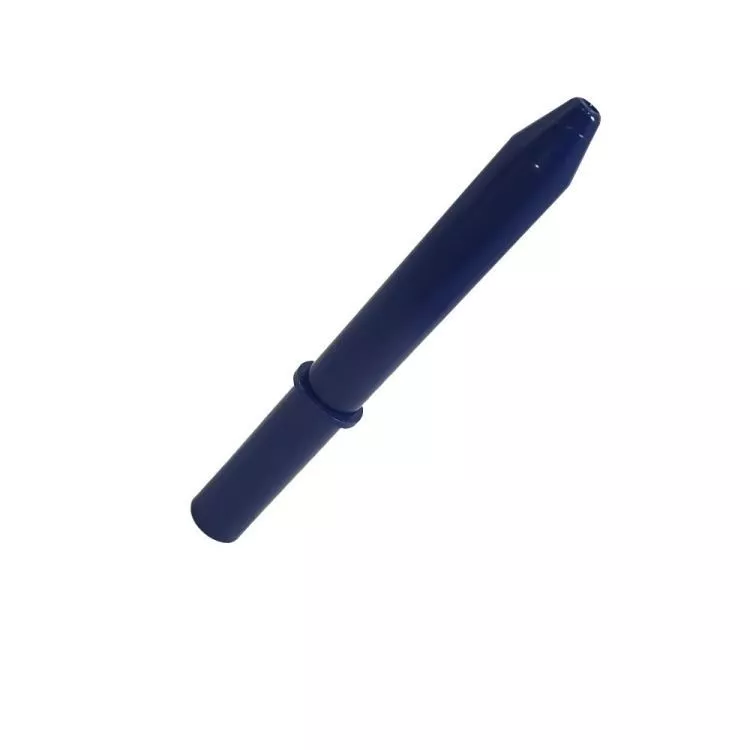

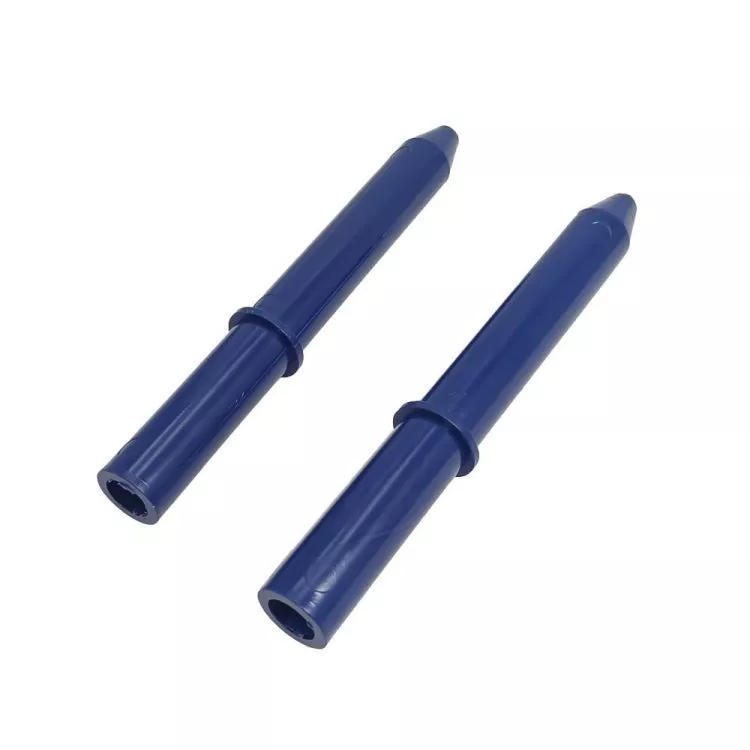

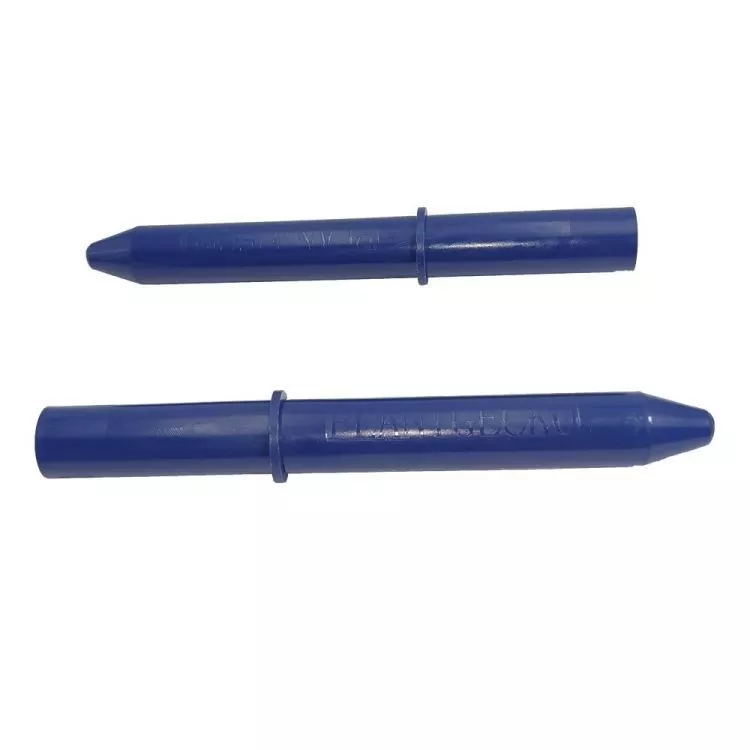

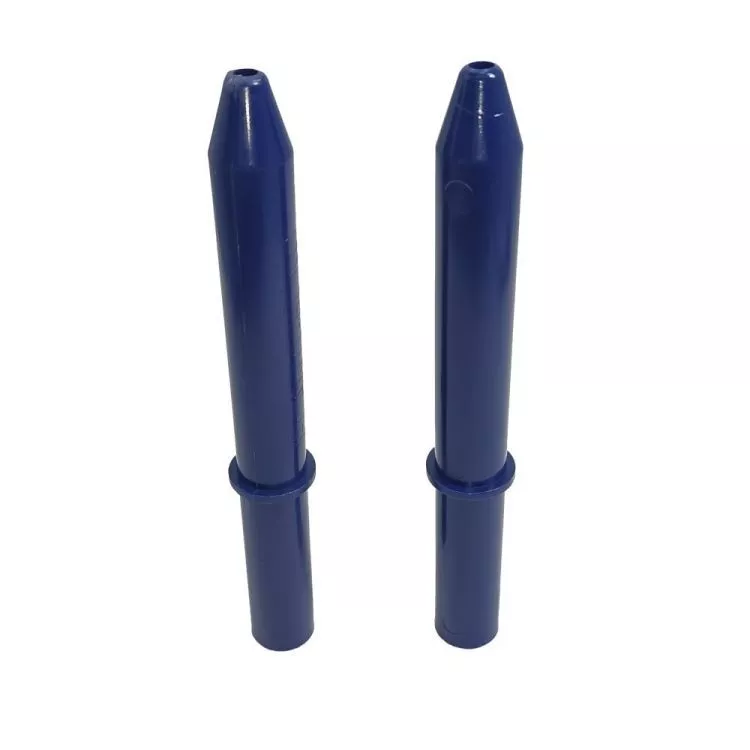

The illustrated S2301 examples show elongated molded forms with hollow ends and collars. This plastic injection molding enquiry offers customized shape, size and color with PA66, PP, ABS and PC material options. The blue appearance in the photograph is an example, rather than a complete set of selectable dimensions or color variants.
Dimension the tubular form as an assembly part
Show the outer profile, hollow-end geometry and collar locations on the S2301 drawing. Identify the interfaces that locate the part in its intended assembly and the dimensions that should be checked after molding. The photographed proportions do not provide a numerical bore size, wall thickness or fit, so these need to be supplied for the actual component.
Agree the ordered resin and visible finish
Choose the required PA66, PP, ABS or PC grade and include any material documentation needed for the application. Confirm the color reference and the surfaces requiring a matte appearance. The listed cutting and painting services should be discussed only where they form part of the proposed operation sequence for this tubular shape.
An S2301 enquiry should include the latest drawing revision, quantity and feature-specific acceptance criteria. The words small and high precision do not establish a universal dimensional range or tolerance. If the tubular part must meet a special operating condition, define that condition and obtain applicable evidence before selecting the finished configuration.
