Custom Precision Nylon ABS Rubber Plastic Parts | Injection Molding and CNC Requirements

• Model Number

  S2211
  Plastic Modling Type

  Injection
• Processing Service

  Moulding, Cutting, Painting
  Color

  Customized
• Size

  Customized Size
  Material

  PA66/PP/ABS /PC, Etc
• Certification

  ROHS
  Feature

  High Precision
• Shape

  Customized Shapes
  Packing

  Standard Carton Box
• Service

  Prompt Delivery
  Surface finish

  Matt Surface
• Package

  PP Bag

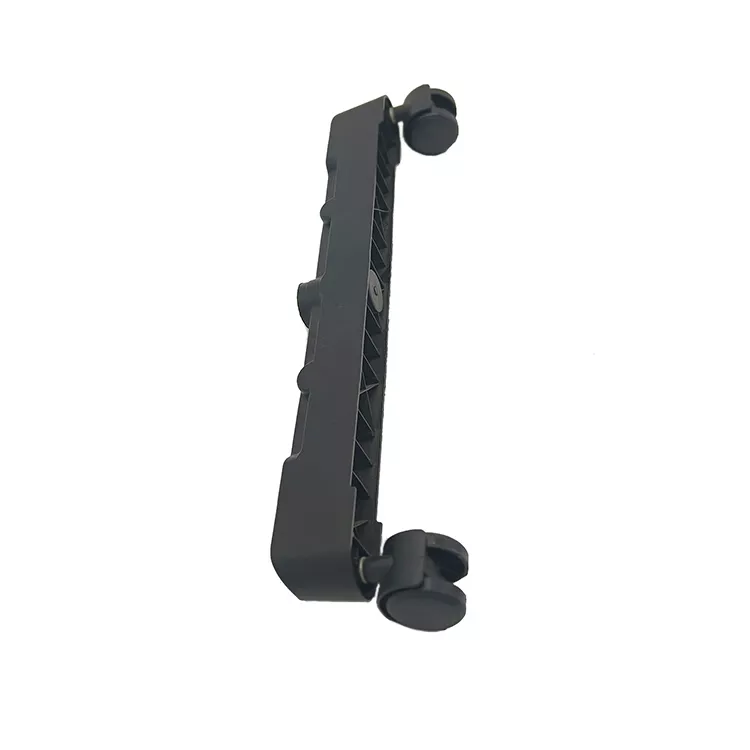

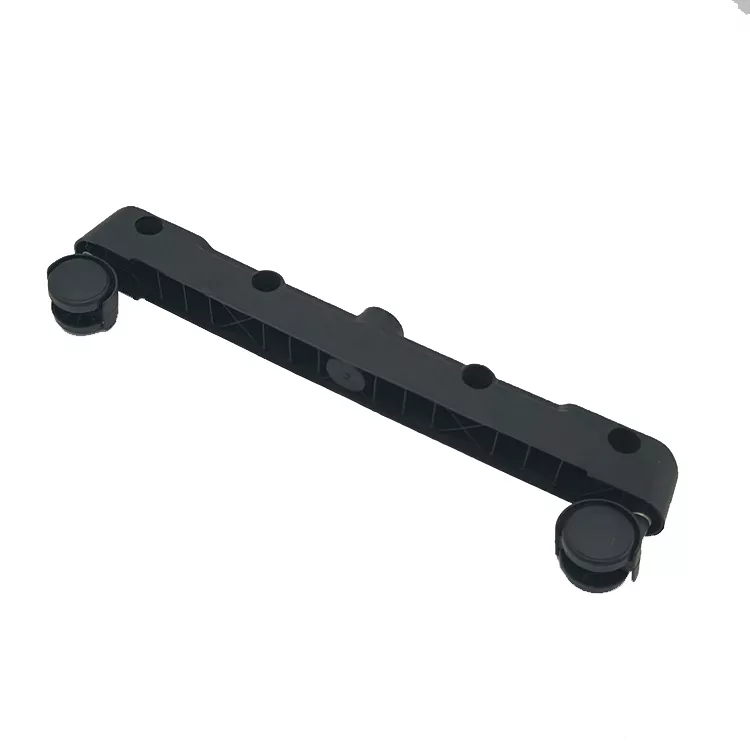

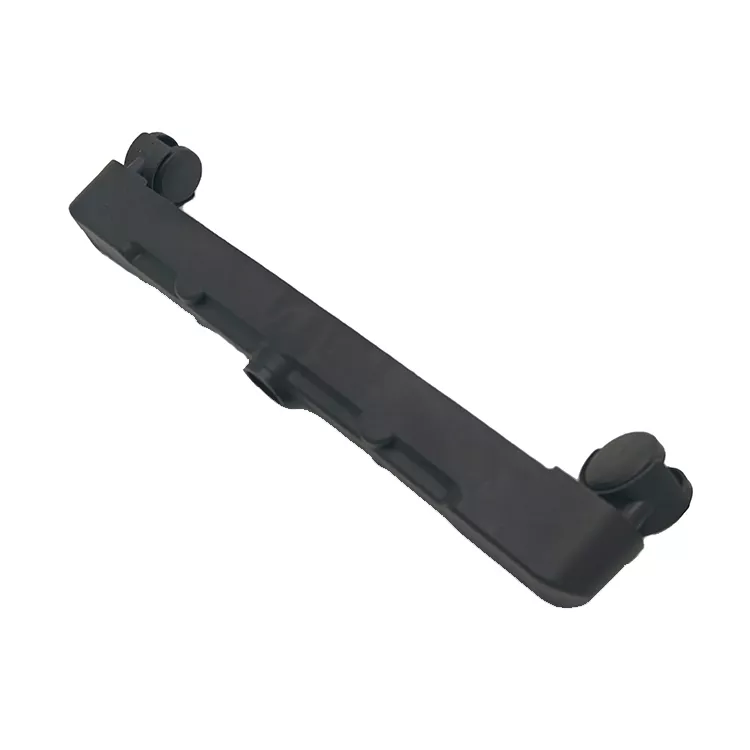

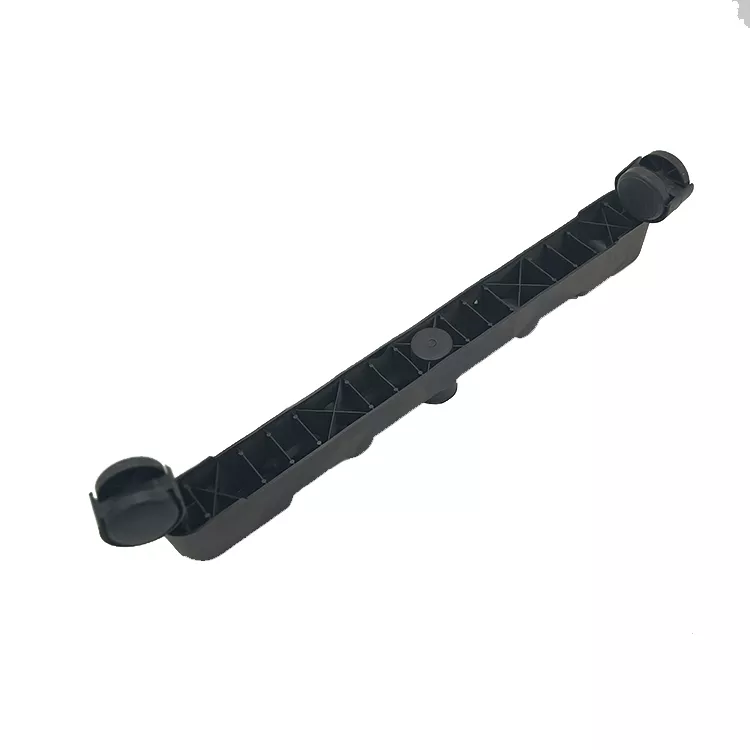

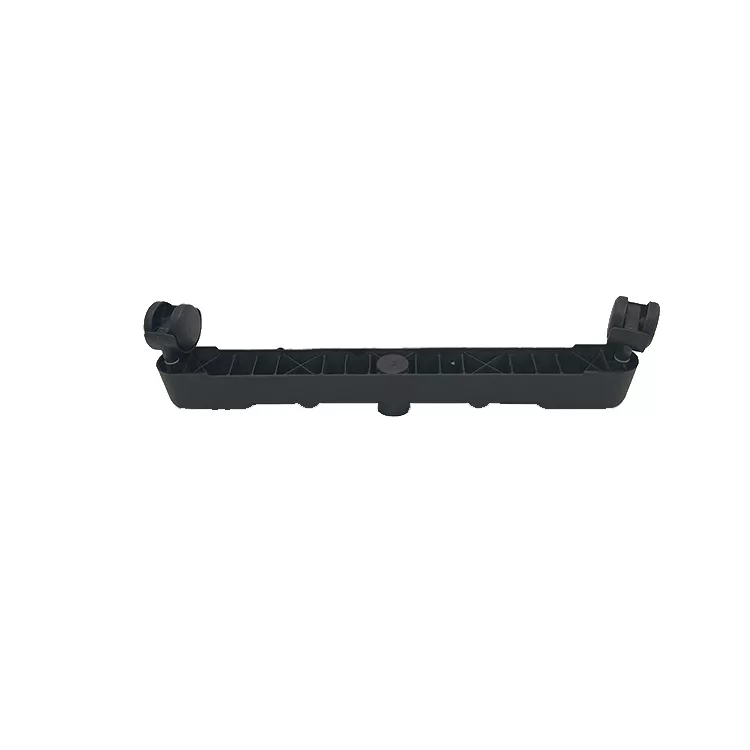

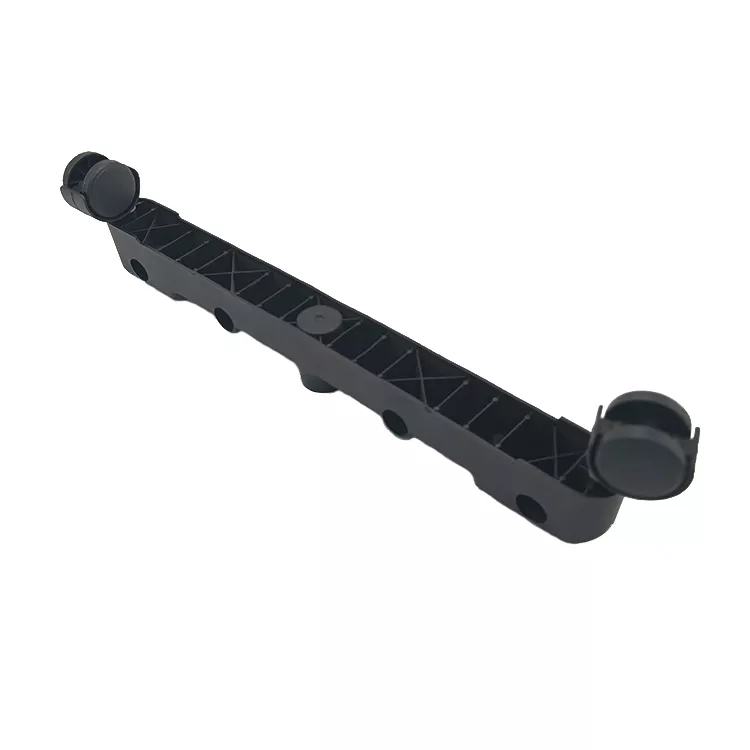

Start with the elongated ribbed body and its end features when defining this plastic-component request. The black example has several round openings or recesses and rounded disc-like regions at both ends. Appearance alone does not establish rubber construction, movable rollers, a particular resin or the manufacturing route.

Locate round openings from the ribbed bar ends

Provide component sections, rib geometry and the positions of circular features from assembly datums. Identify the adjoining parts and any contact or clearance requirements. Specify whether end regions are integral, separately assembled or require another material rather than inferring that relationship from the photograph.

• Reference the ribbed bar and assembly drawing.
• Dimension openings, ribs and rounded end regions.
• Select actual nylon, ABS or specified elastomer.
• Separate molding, CNC and any joining operations.
• Agree final fit, appearance and inspection records.

Distinguish the polymer from the process

State the exact grade and condition for each material region. If rubber or another elastomer is required, define its formulation and relevant acceptance properties. Injection molding and CNC machining are distinct operations; identify which is requested and mark any secondary-machined interfaces on the controlled drawing.

Set measurable precision and appearance criteria

Provide tolerances with units and final measurement conditions, plus the required color reference and matt finish. Any load, movement or environmental requirement needs actual operating conditions and applicable tests. A visible disc-like end does not demonstrate a functioning roller or verified load capacity.

Include quantities and required material documentation. Keep the delivered component definition explicit so quotations for different polymers or manufacturing scopes remain comparable.
