Custom ADC12 Aluminum Die Casting Parts | Ribbed Housing Support Enquiries

• Model Number

  DM2107
  Material

  Aluminum/zinc
• Application

  Industry
  Dimensions

  Customer Required
• Surface treatment

  Paint/Powder coating/oxidation etc
  Process

  Die Casting-deburring- Machinery
• Service

  OEM ODM
  Feature

  Eco Friendly
• Quality Control

  Professional Inspection

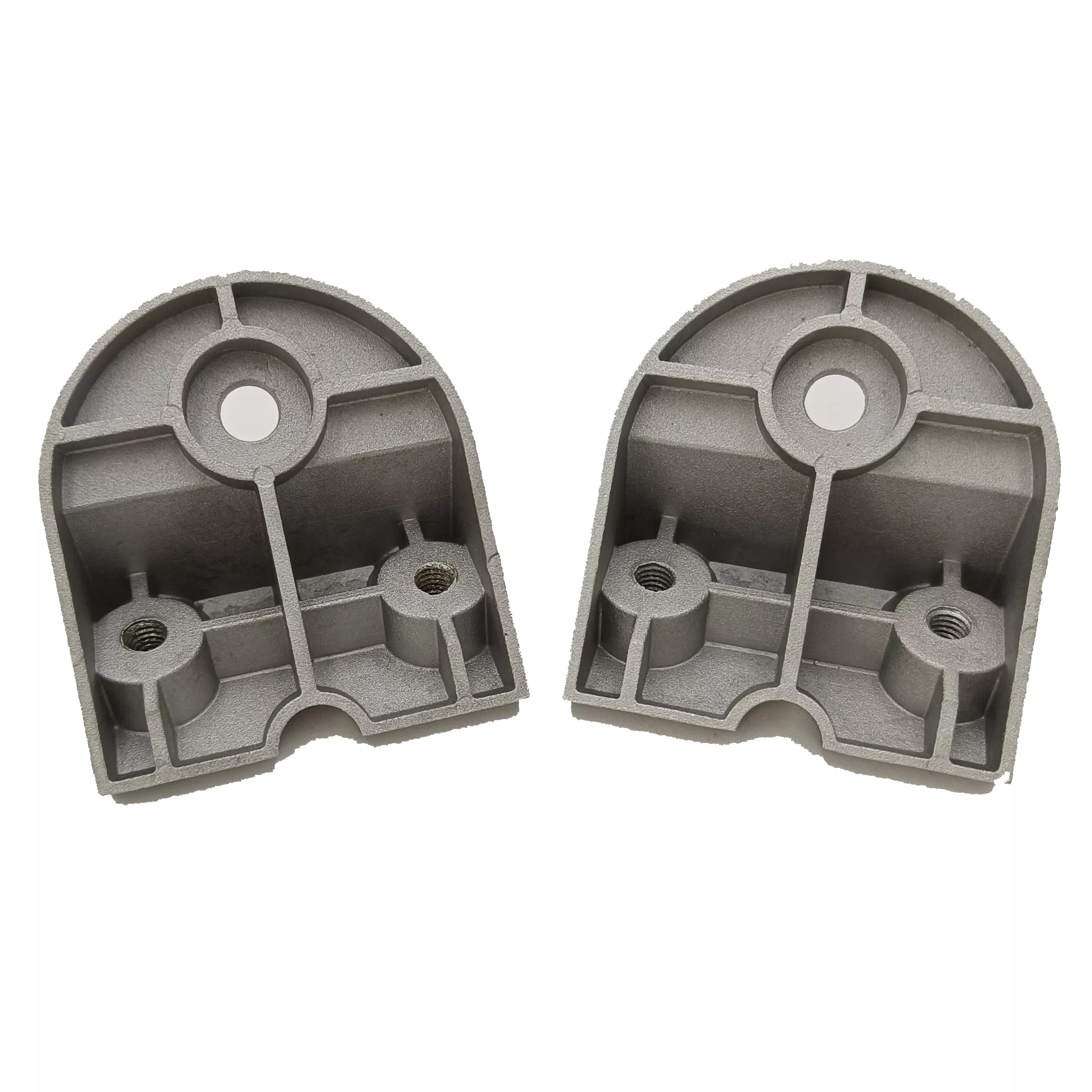

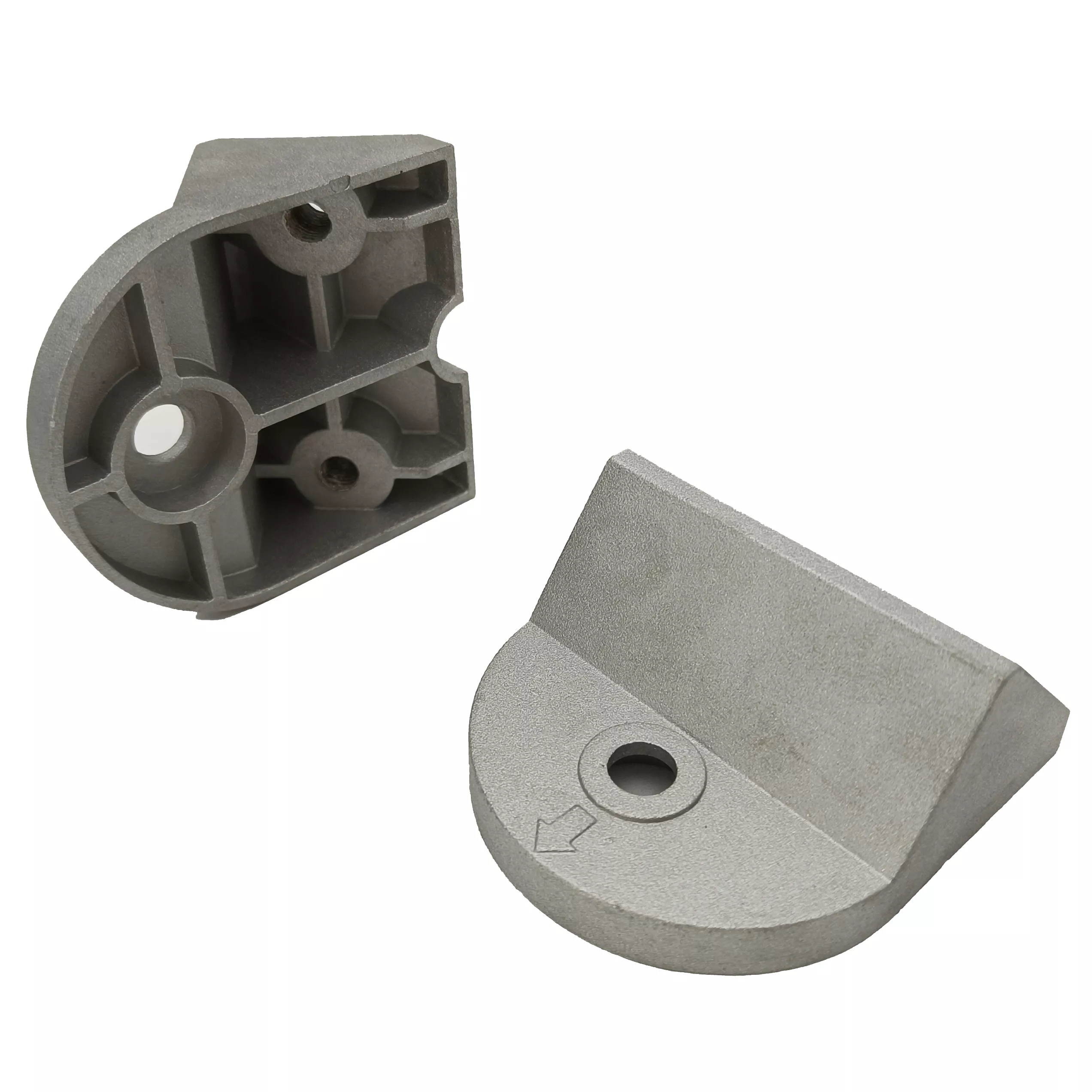

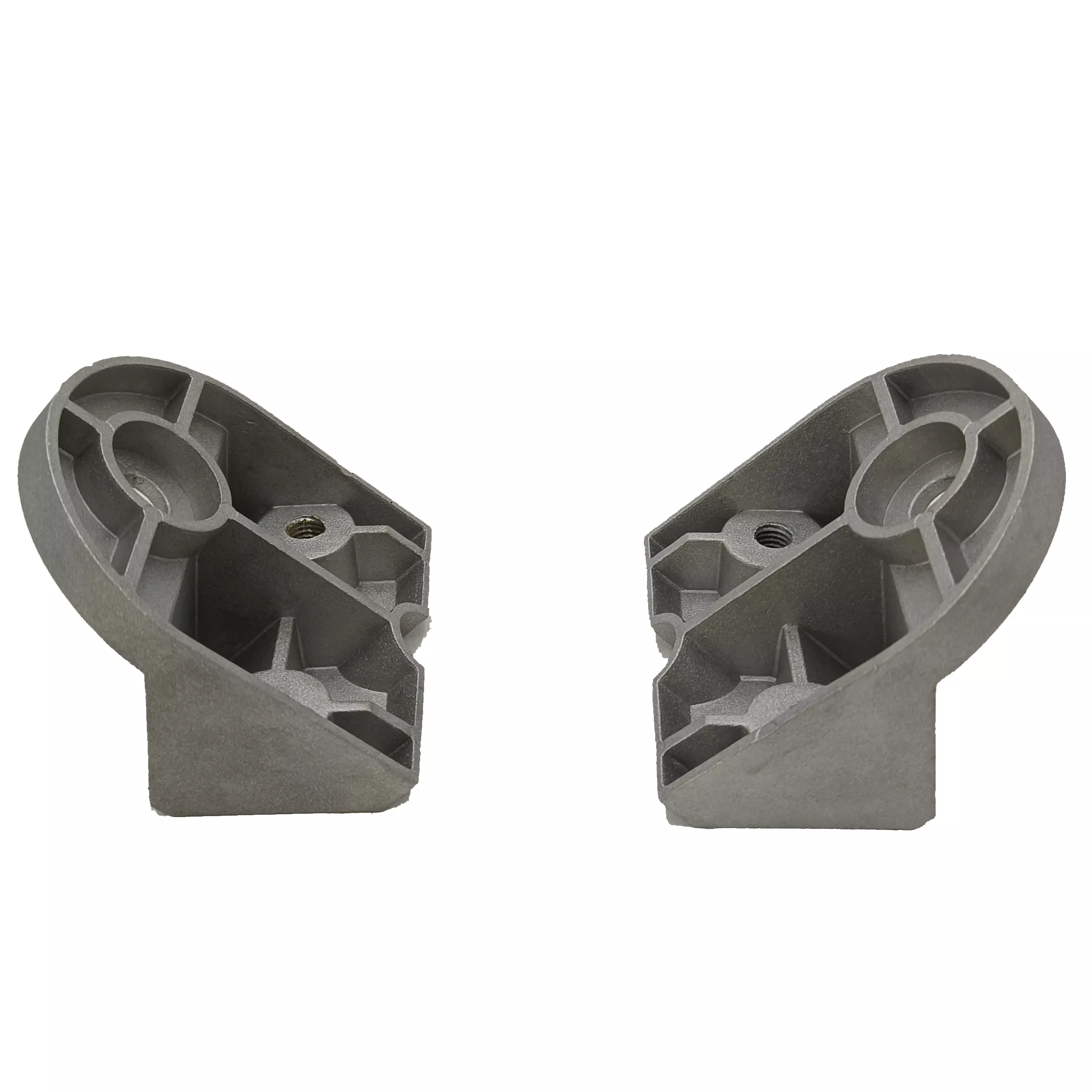

Use the circular seat and inclined wall to define the ribbed housing or support required by the assembly. Two views show intersecting internal ribs and a smaller threaded-looking opening near the center. They explain the visible form without establishing an exact thread, material assay or installed function.

Define the seat and supporting walls

Provide the circular interface, wall sections and rib layout from the relevant assembly datums. Locate the smaller opening and specify its actual thread or connection requirement where needed. Include section views for recesses or hidden geometry that affects manufacturing and final inspection of the support.

• Identify the housing-support drawing revision.
• Specify the actual ADC12 aluminum requirement.
• Locate circular seat, ribs and smaller opening.
• Mark machined contacts and treatment boundaries.
• Agree final dimensional and material evidence.

Select alloy and the finished interfaces

ADC12 is the aluminum direction for this custom die-casting enquiry. Confirm the actual grade specification and required material records for the selected design. Zinc is a separate project alternative, not a verified ingredient of the photographed aluminum component. Define deburring and any secondary machining needed at its working interfaces.

Check the support against the mating design

Supply mating geometry where it controls alignment, clearance or engagement at the circular seat. Choose a compatible finish, including any masking and final-condition checks. State units and tolerances on the actual interfaces rather than treating the word precision as a universal capability value.

Include quantities, intended service and inspection documentation. Loads, machine compatibility or other functional requirements need defined criteria and evidence for the selected support; ribbed appearance alone cannot establish their acceptance.

Adc12 Die Casting Product Metal Casting Aluminum Die Casting Parts offers high-quality and durable components suitable for various industrial applications. Crafted from premium aluminum and zinc, these die casting parts guarantee strength and reliability in challenging environments.

With model number DM2107, these components are tailored to meet customer-specific dimensions, ensuring a perfect fit for your projects. The versatility of this product allows for different surface treatments, including paint, powder coating, and oxidation, allowing you to achieve the desired aesthetic and functional characteristics.

The manufacturing process involves advanced die casting techniques followed by meticulous deburring and machinery operations, ensuring that each part meets stringent quality standards. Our commitment to eco-friendly practices is evident in every stage of production, making these parts not only efficient but also sustainable.

We provide OEM and ODM services, allowing you to customize your orders according to unique specifications. Rigorous professional inspections are conducted throughout the production process, emphasizing our dedication to quality control and customer satisfaction.

Choose Adc12 Die Casting Product for reliable performance and superior quality in your industrial applications.
