Custom Extruded Aluminum LED Heat Sink Profiles with Straight Fins and CNC Machining
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat SinkShapeAngle
-
Alloy Or NotIs AlloyModel Number2301
-
Tolerance0.02mm, ±0.02Processing ServiceBending, Decoiling, Welding, Punching, Cutting, Machining
-
Delivery Time15 daysMaterial6063/ 6061 etc
-
MachiningAvailableSurface treatmentAnodized/oxide etc /powder coated
-
ToolingMade by ourselfSurface ColorCustomized Panton Colors
Broad base with a continuous straight-fin layout

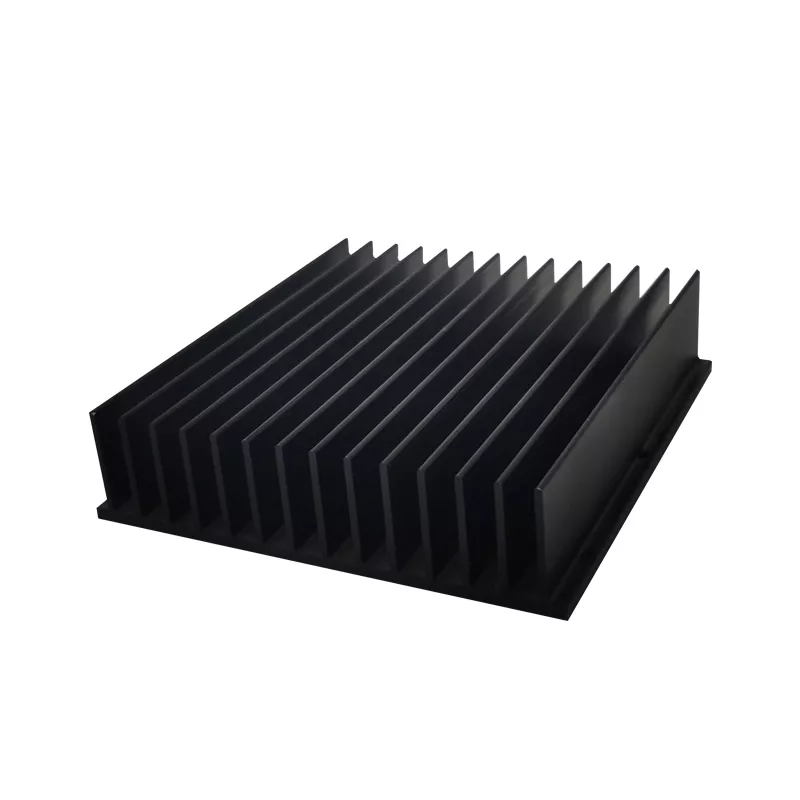

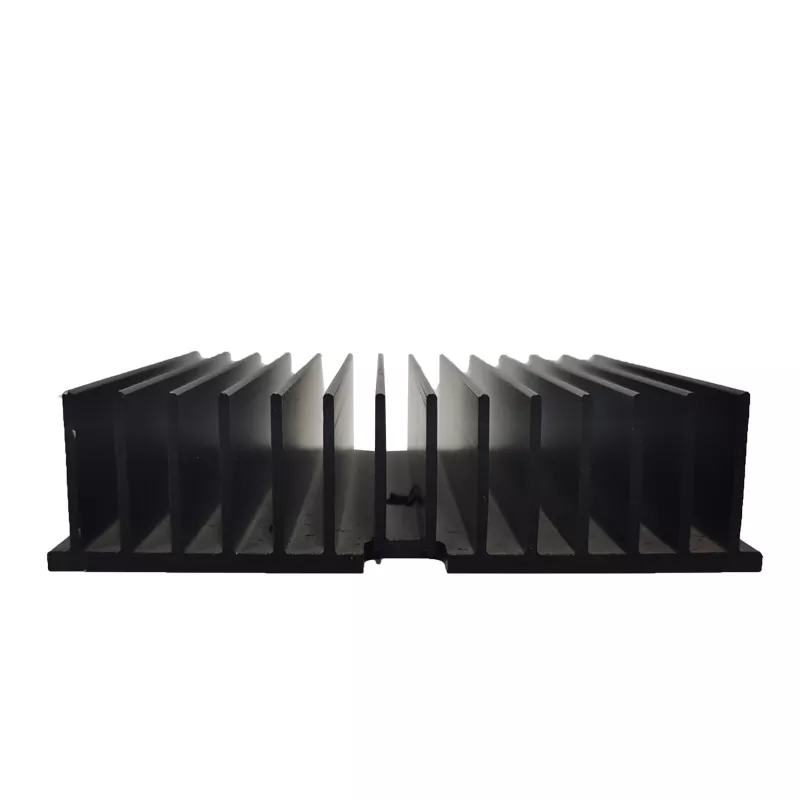

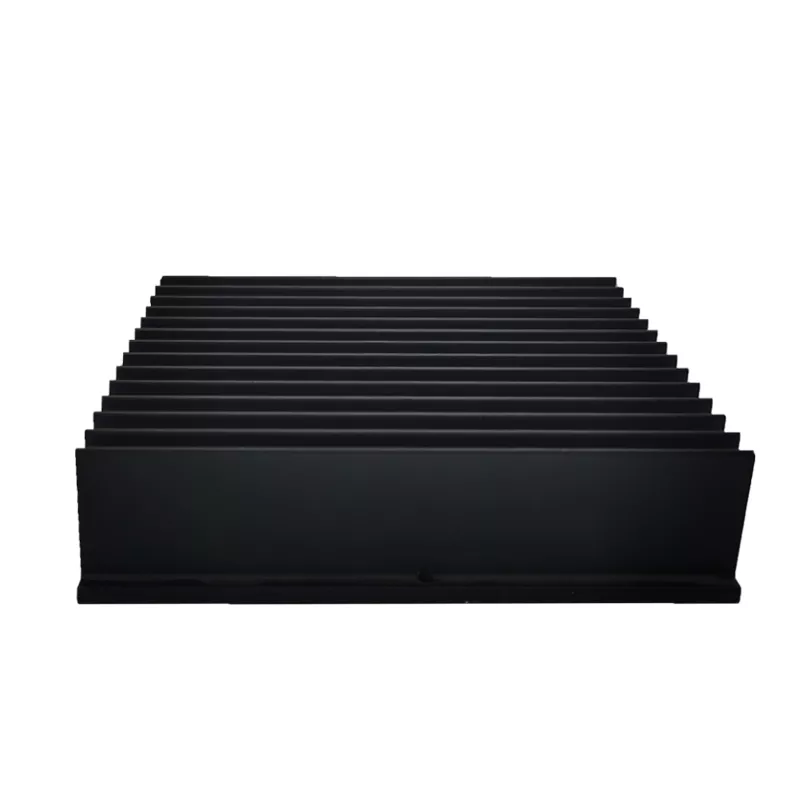

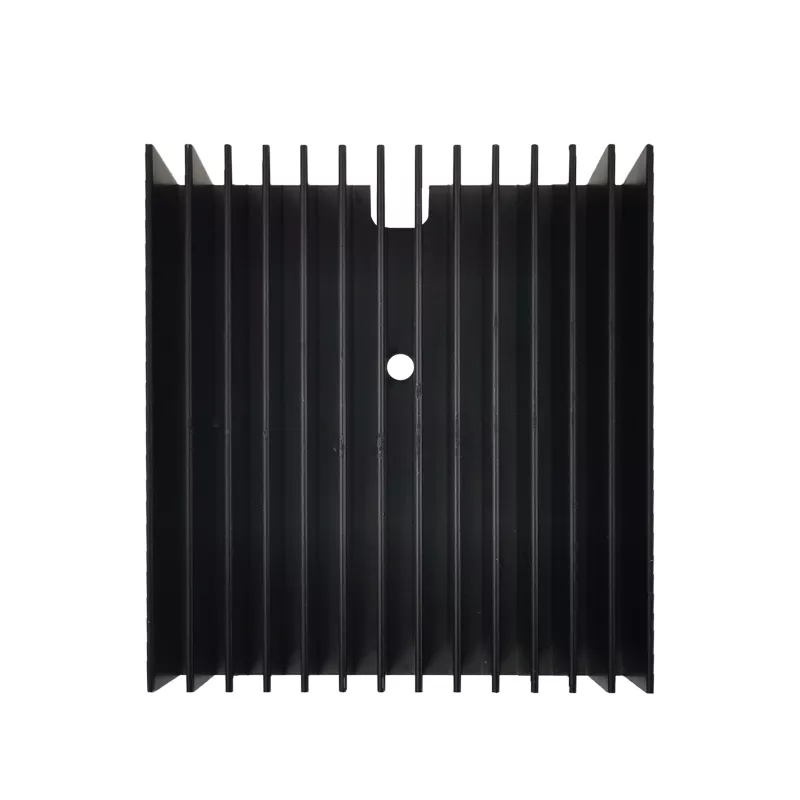

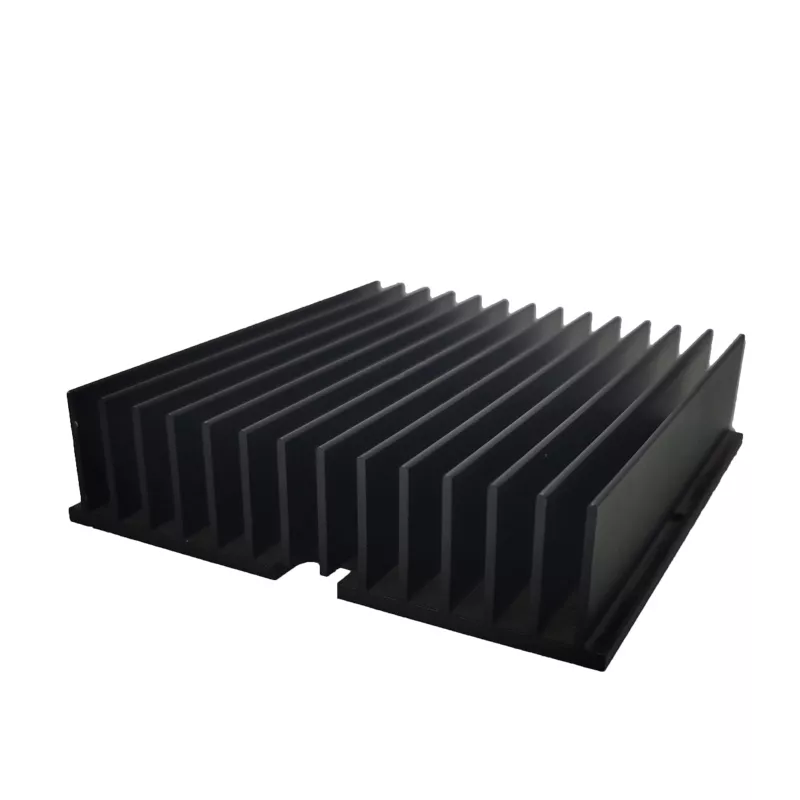

This aluminum heat sink profile has a flat base and parallel longitudinal fins across its width. Custom LED heat sink enquiries should define the mounting contact area together with the finned section and the space available in the lighting assembly.
Section information for quotation
- Show the base thickness, overall width, fin height and fin spacing.
- Specify the finished length and any holes, cutouts or end machining.
- Identify the mounting surface and the dimensions needing inspection.
6063 and 6061 aluminum are listed material options, with machining available. State the selected alloy and temper and provide the heat load and installation conditions for project review.
Anodized, oxide and powder-coated finishes can be considered for the required color and surface condition. Mark contact faces or fixing holes that need masking. Include quantity and drawing revision so the proposed extrusion, secondary operations and finish cover the same ordered design.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
