Custom Aluminum CNC Turning and Stainless Steel Machining Enquiries for Threaded Tubes, End Pieces and Retaining Rings
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberS240403Product namecustom cnc machined parts
-
Surface treatmentanodizing/powder coating/painting/polishing / chrome plating etcMaterialAluminum Alloy
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)MOQ100 pcs
-
Materials Avaliablealuminum/ stainsteel steel/ brass/ zincCertificationISO9001:2015
-
ProcessCnc Machining+deburrs +surface treatmentLogoAccept Custom Logo
-
Tolerance0.01mm
Define the tubular component and its mating pieces

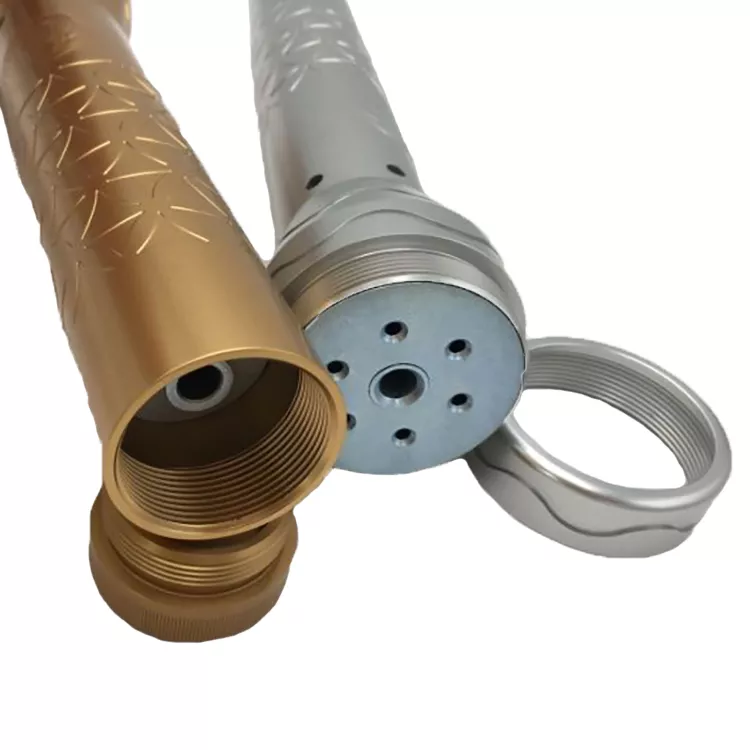

The examples show long tubular bodies with patterned outer surfaces, internal threads, a perforated end face and a separate ring. Identify the pieces needed and provide an assembly section to show their relationships. Define the thread engagement, bore steps and positions of the end and side holes.
Model S240403 lists aluminum alloy with stainless steel among available materials, plus CNC turning, milling, deburring and surface treatment. MOQ 100 pieces and PDF, CAD, IGES or STEP drawings are listed. Specify the selected alloy, finish and quantities per component. The pictured arrangement does not establish a complete device, electrical performance or water resistance.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
