Custom Anodized Aluminum CNC Milling Blocks | Precision Machining Project Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeBroaching, DRILLING, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM
-
Material CapabilitiesAluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel AlloysMicro Machining or NotMicro Machining
-
Model NumberDmetal-200389Surface treatmentSmooth
-
CertificationISO9001:2008MaterialAluminum Alloy
-
Surface finishAnodized/oxide etc /powder coatedSizeCustomized Size
-
Tolerance±0.1ToolingMade by ourself
-
Drawing Format2D/(PDF/CAD)3D(IGES/STEP)

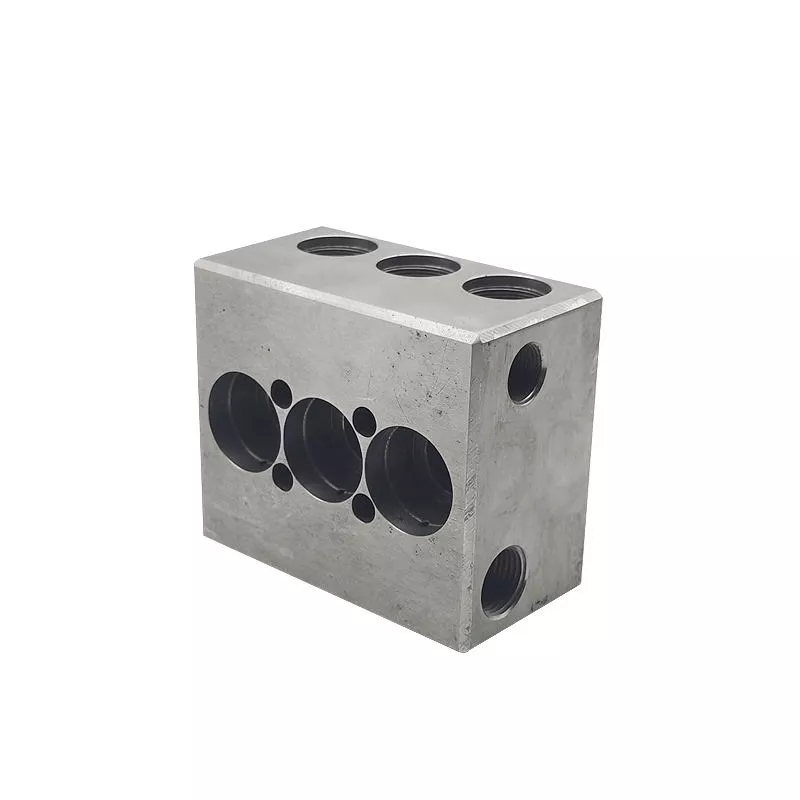

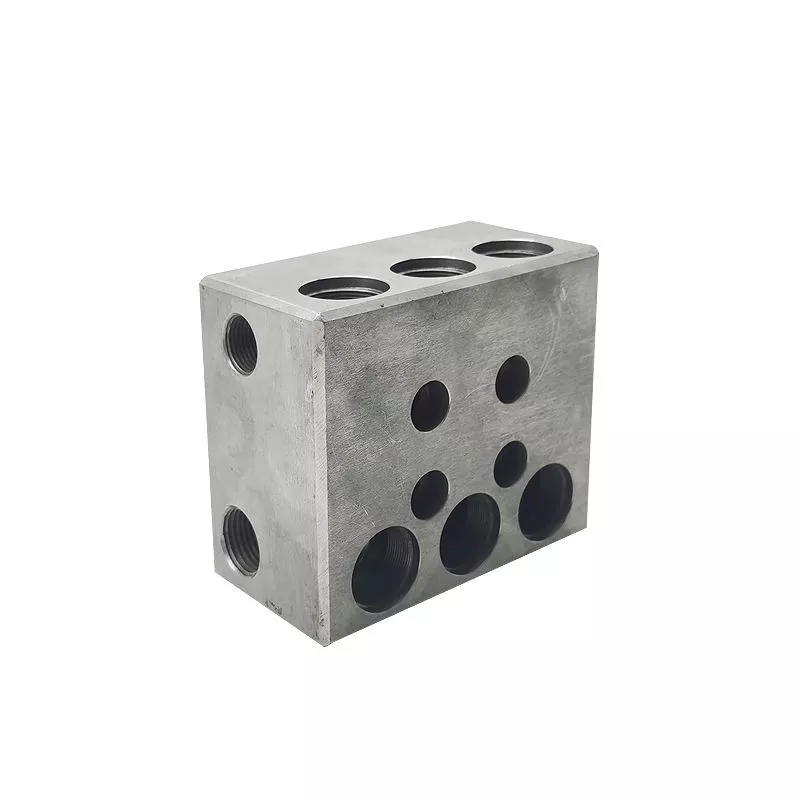

Multiple bores across adjoining block faces
The example has large circular openings in one face and further openings through the top and side. Relate the bore axes and hole positions to shared reference faces, including any intersecting internal geometry.
Specify the aluminum alloy and finished bore conditions. Mark threads, edges and contacts requiring machining or masking before anodizing.
Drawing and inspection definition
Include quantities, finish and drawing revision, with criteria for bore position and mating fit. Similar views elsewhere in the catalog do not verify a different block size or configuration. The image does not establish a hydraulic, pneumatic or pressure-rated function.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
