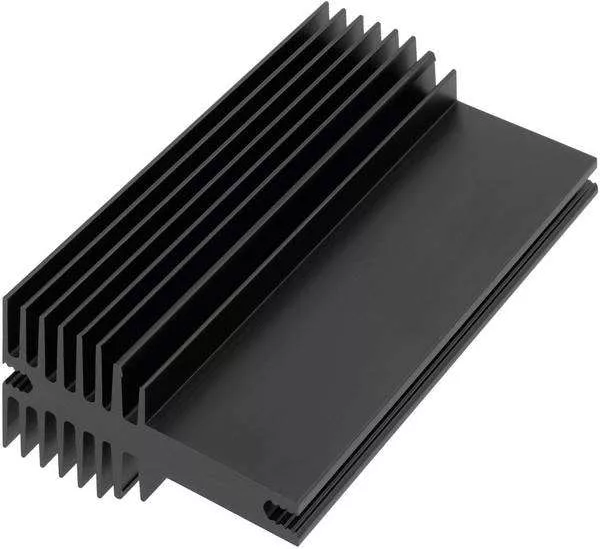

Custom 6000 Series Aluminum Extrusion Heat Sink Profiles with Fins and Side Channels
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-200121
-
Tolerance±1%Processing ServiceCutting, extruding
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Fins and side-channel interfaces

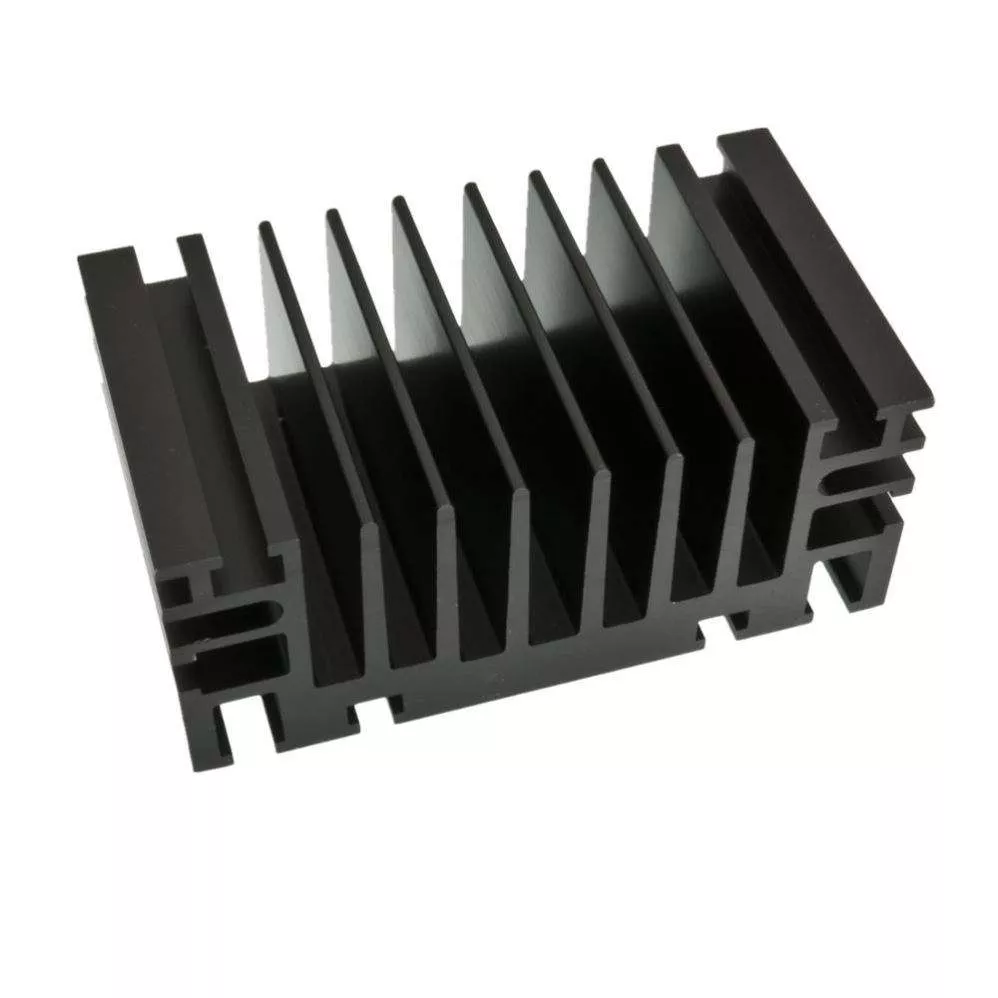

This example combines a finned center section with additional channels and steps along both sides. Define the full cross-section, including the side features that engage mounting hardware or adjacent components.
- Profile specification
- State the required 6000-series alloy and temper, overall width, base thickness, fin dimensions and cut length.
- Installation details
- Show the mating hardware and the surfaces used for mounting or thermal contact. Identify any drilling, cutting or machining after the profile is produced.
Include the thermal design requirement, airflow conditions and available space, together with quantities and the required surface treatment. Dimension the side channels from the same references as the base so their fit can be reviewed with the assembly.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
