Custom Anodized 6063 Structural Aluminum Extrusion Profiles | Industrial CNC Enquiries

• Grade

  6000 Series
  Temper

  T3-T8
• Application

  Heat Sink, Industrial Equipment
  Shape

  T - Profile
• Alloy Or Not

  Is Alloy
  Model Number

  DM2012
• Tolerance

  ±1%
  Processing Service

  Bending, Decoiling, Welding, Punching, Cutting, extruding
• Delivery Time

  22-30 days
  Product material

  6061 6063 Aluminum
• Color

  Black Metal
  Size

  Customized
• Surface treatment

  Anodized/oxide etc /powder coated
  Tooling

  Made by ourself
• Packing

  Carton
  Process

  Sand casting +CNC Machining
• Certification

  ISO9001-2008
  Machining

  Available

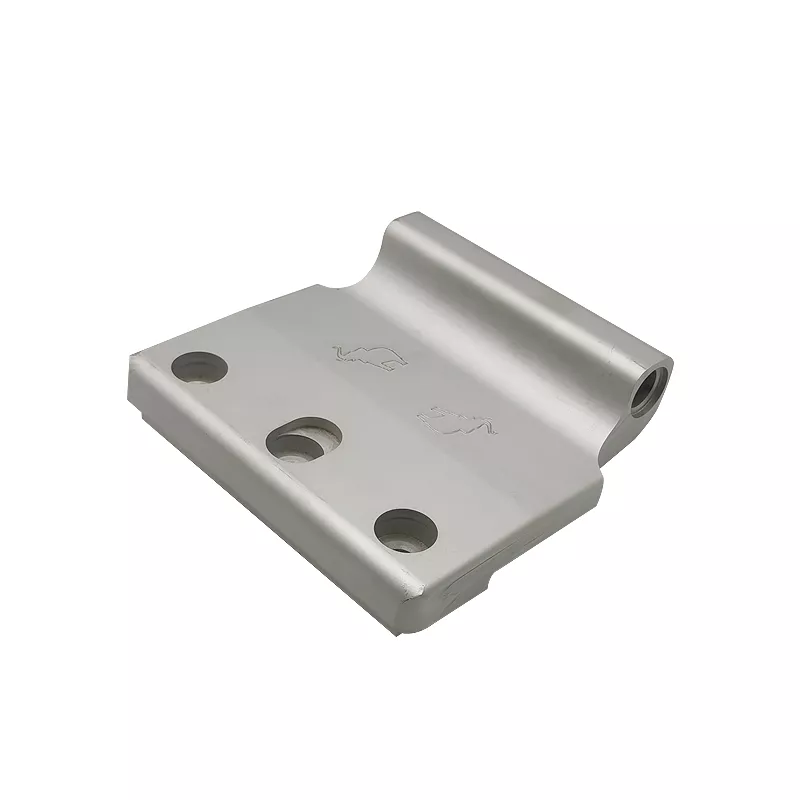

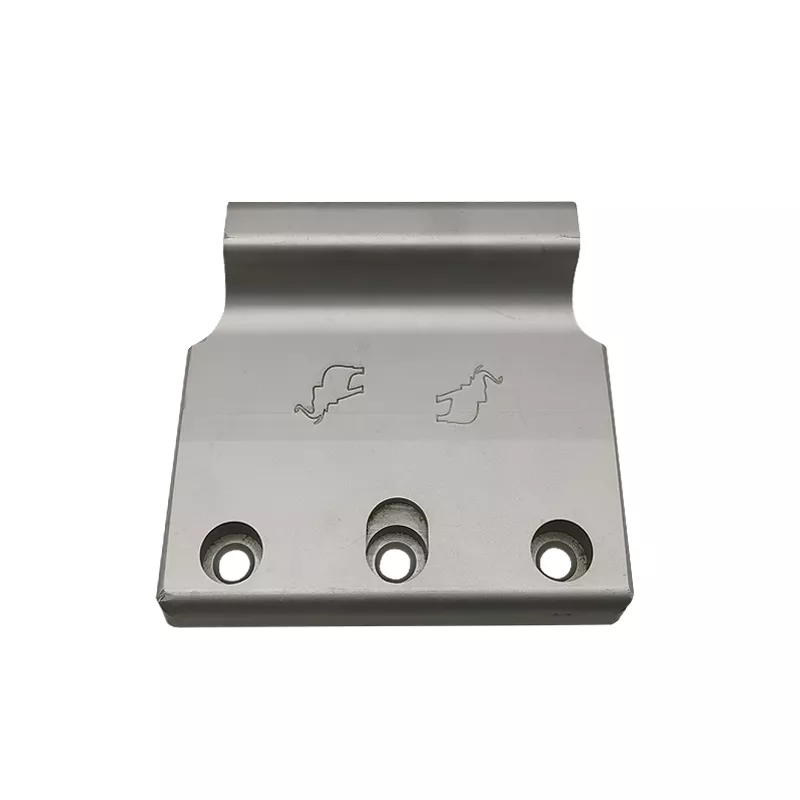

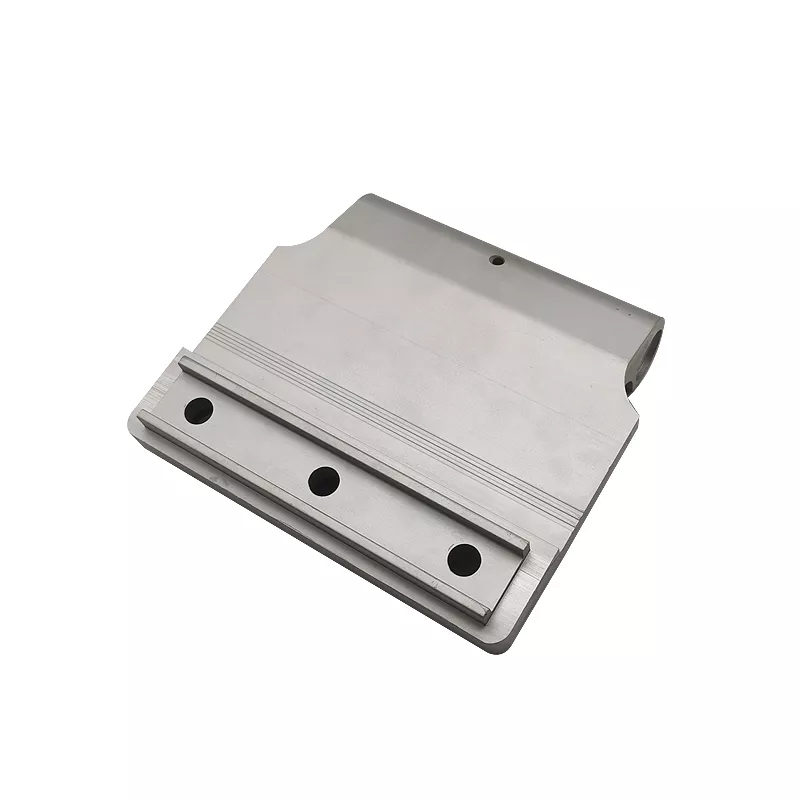

Define the actual aluminum component and its mating requirements before selecting a custom profile or CNC scope. The example is a hinge-leaf-like plate with a tubular barrel along one edge and three mounting openings. This geometry does not establish a complete hinge assembly, a pin supply or a structural load rating.

Locate the barrel from the mounting face

Provide the plate dimensions, barrel axis and bore requirements, locating the mounting openings from the drawing datums. Include the mating component or assembly section where it controls alignment or fit. The photograph does not establish exact bore dimensions, the actual alloy or the manufacturing route.

• Specify the selected alloy and temper for the order.
• Provide the barrel, bore and mounting-pattern drawing.
• Identify whether mating parts or a pin are included.
• Mark CNC features, finish and fit protection.
• Define dimensional and application acceptance requirements.

Agree the material and finished condition

State the actual 6063 requirement or another explicitly selected option such as the listed 6061. Identify the anodized finish and any masking needed at the bore or mating faces. Appearance alone does not establish the material condition or a particular coating process.

Agree the actual profile-manufacturing and secondary-machining route for the design. Generic T-profile and historical sand-casting fields are not a finished component drawing. Assign limits to the features that control fit rather than applying a broad ±1% reference as an order-wide tolerance.

Specify the supplied assembly and duty

State whether the order covers only the leaf-like component, a mating piece, a pin or a complete assembly. If structural or hinge-related performance is required, provide the actual loading, installation and acceptance criteria; the word structural does not establish a measured rating. Confirm quantities and inspection records for the supplied condition. A useful enquiry links one barrel and mounting geometry to a clear material, CNC and finishing scope, without assuming a finished function or process from the example's appearance.
