Custom 6063 Aluminum Extruded Heat Sink Profile Enquiries with Rectangular Finned Sections
Generate QR code
Product description
Project & Delivery Requirements
-
Grade6000 SeriesTemperT3-T8
-
ApplicationHeat Sink, Industrial EquipmentShapeT - Profile
-
Alloy Or NotIs AlloyModel NumberDmetal-200329
-
Tolerance±1%Processing ServiceBending, Decoiling, Punching, Cutting
-
Delivery Time22-30 daysProduct material6063 Aluminum
-
ColorBlack MetalSizeCustomized
-
Surface treatmentAnodized/oxide etc /powder coatedToolingMade by ourself
-
PackingCartonProcessSand casting +CNC Machining
-
CertificationISO9001-2008MachiningAvailable
Define the rectangular base and fin envelope

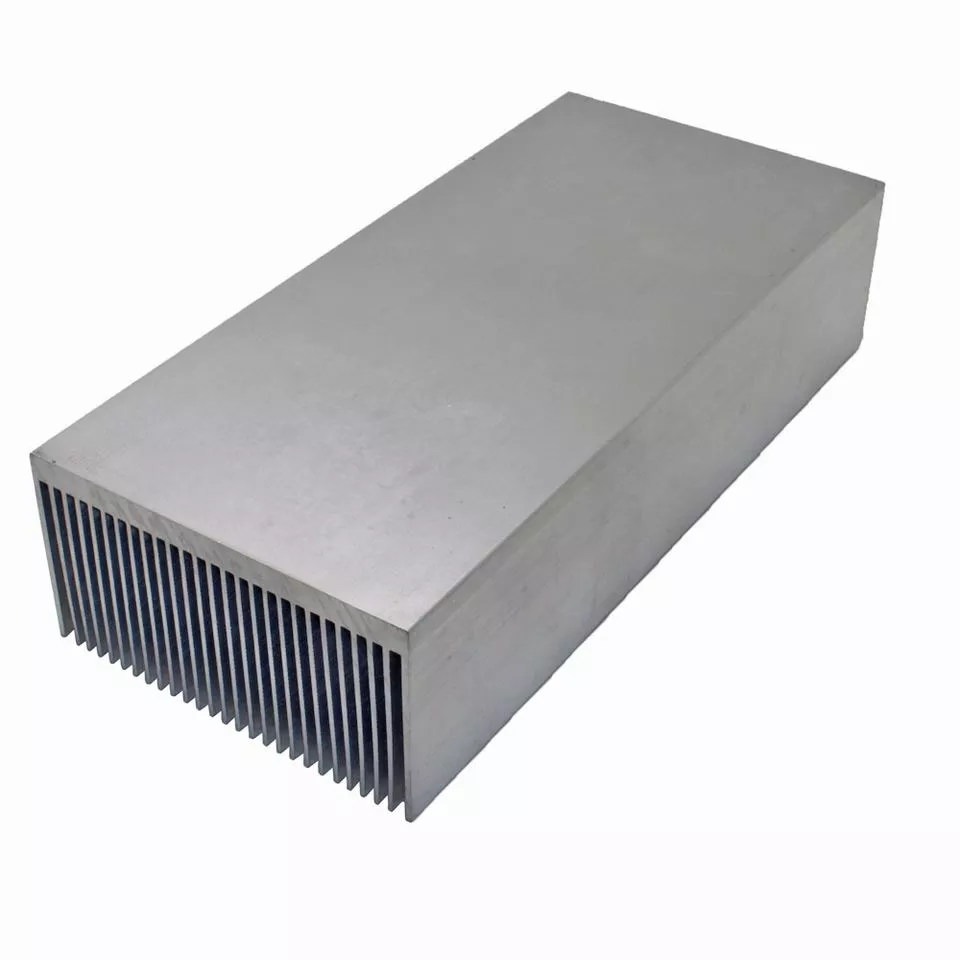

The retained product example shows a broad rectangular contact face with thin parallel fins below it. Specify the contact-face dimensions, base thickness, fin geometry and cut length in the part drawing.
For a custom 6063 aluminum extrusion enquiry, identify the required temper and subsequent machining operations. Mark the surfaces where fit, flatness or finish is critical and state the required tolerances for those features.
Design information for review
Include the heat-source interface, mounting method, space constraints and airflow conditions. Provide the thermal design requirement, quantities and finish specification so the section can be assessed for the intended installation.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
