Custom Aluminum CNC Turning and Milling Enquiries for Bored Mounting Brackets with 5-Axis Setup Review
Generate QR code
Product description
Project & Delivery Requirements
-
CNC Machining or NotCnc MachiningTypeMilling
-
Material CapabilitiesBrass, Aluminum, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, OtherMicro Machining or NotMicro Machining
-
Model NumberS2411MaterialHardened Metals
-
ProcessCNC Machining Milling TurningSurface treatmentPainting\Powder Coating\Plating\Polishing
-
Drawing Format2D/(PDF/CAD/DWG/DXF)3D(IGES/STEP/VDA)ColorCustomized Panton Color or Ral Color
-
Processing TypeAxis CNC Machining Service
Bridge-shaped bracket and mounting faces

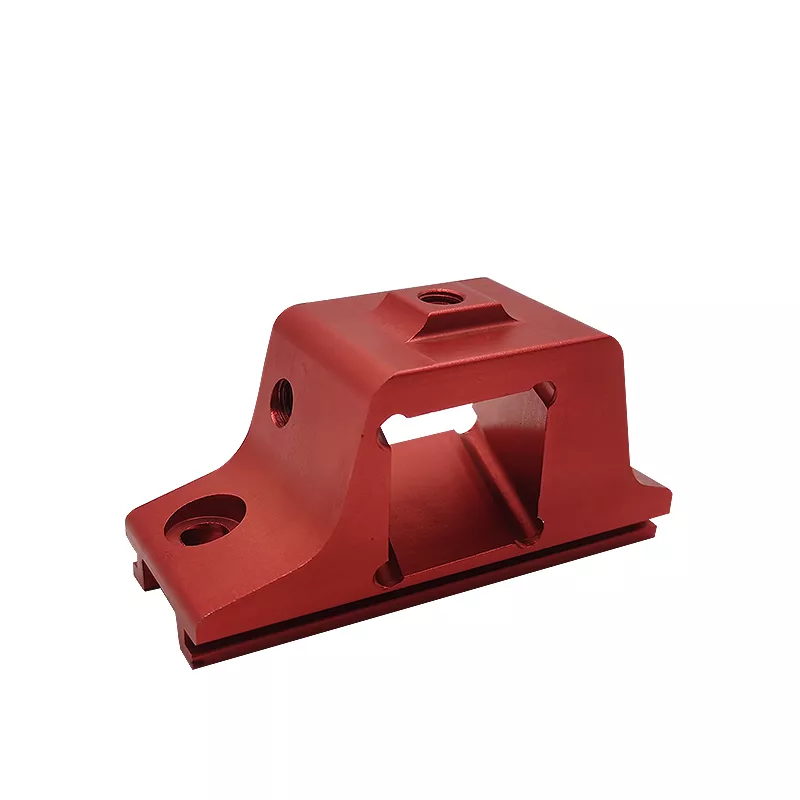

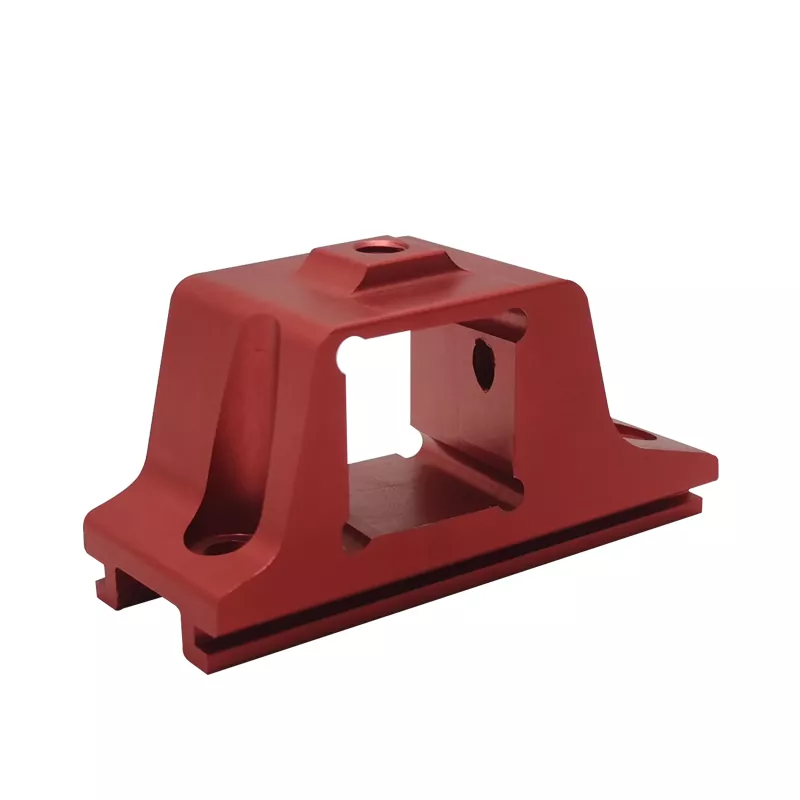

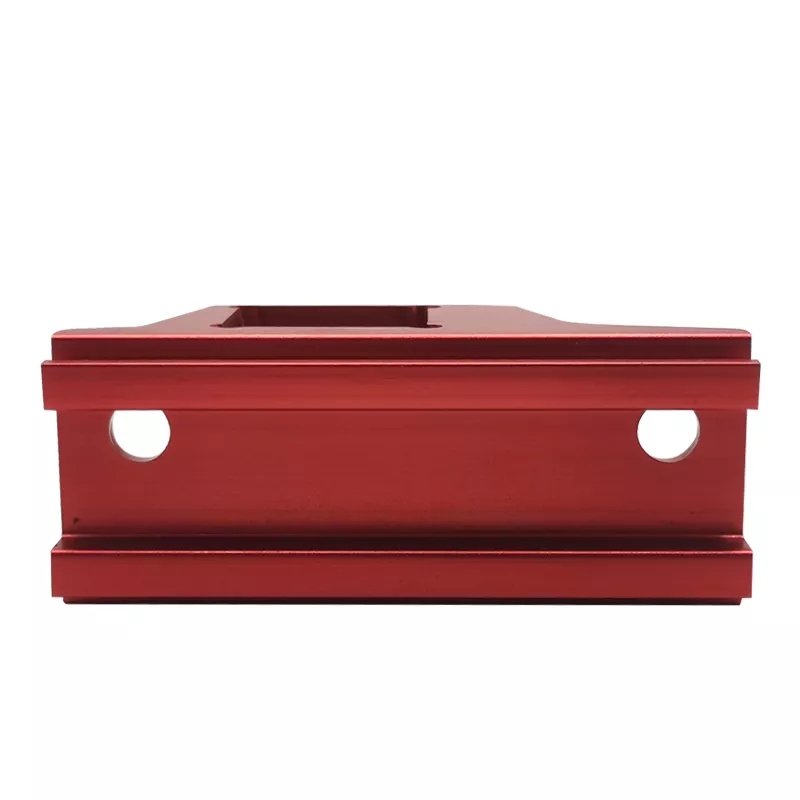

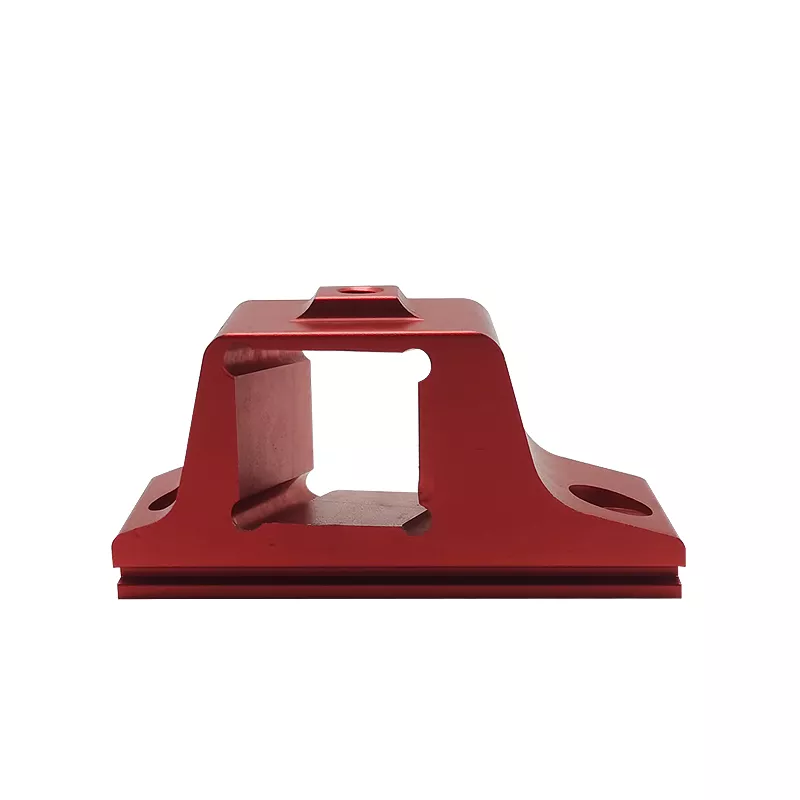

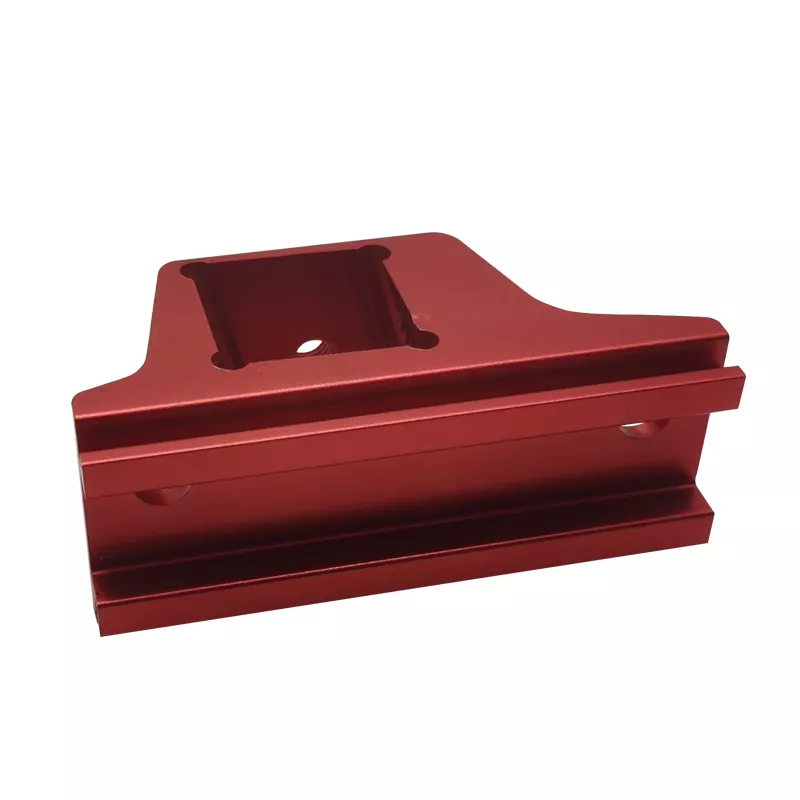

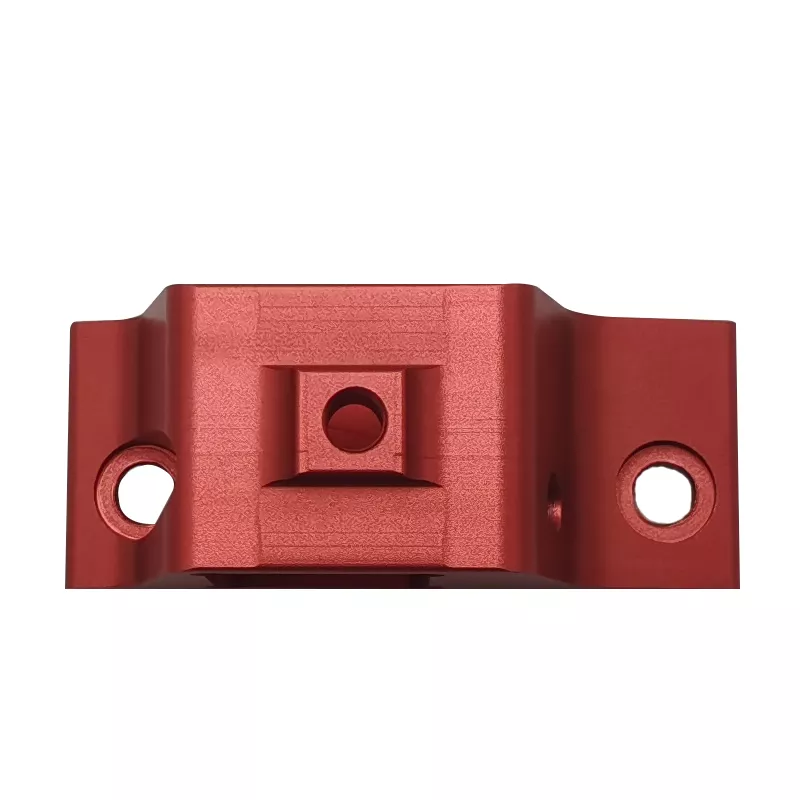

The example has an open central space below a raised bridge, recessed fixing holes in the base, a top opening and side holes. Define the bore locations from the mounting face and show how the open space clears the adjoining component. Any turned feature should be identified separately on the drawing.
Model S2411 lists CNC milling and turning, with aluminum among machining capabilities. Confirm the selected alloy and quantities and provide PDF, CAD, DWG, DXF, IGES, STEP or VDA drawings. Identify any five-axis setup requirement for review. Specify the final surface treatment and inspection datums; the red appearance does not establish a particular coating or material grade.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
